Instruction Manual

15

Specifications

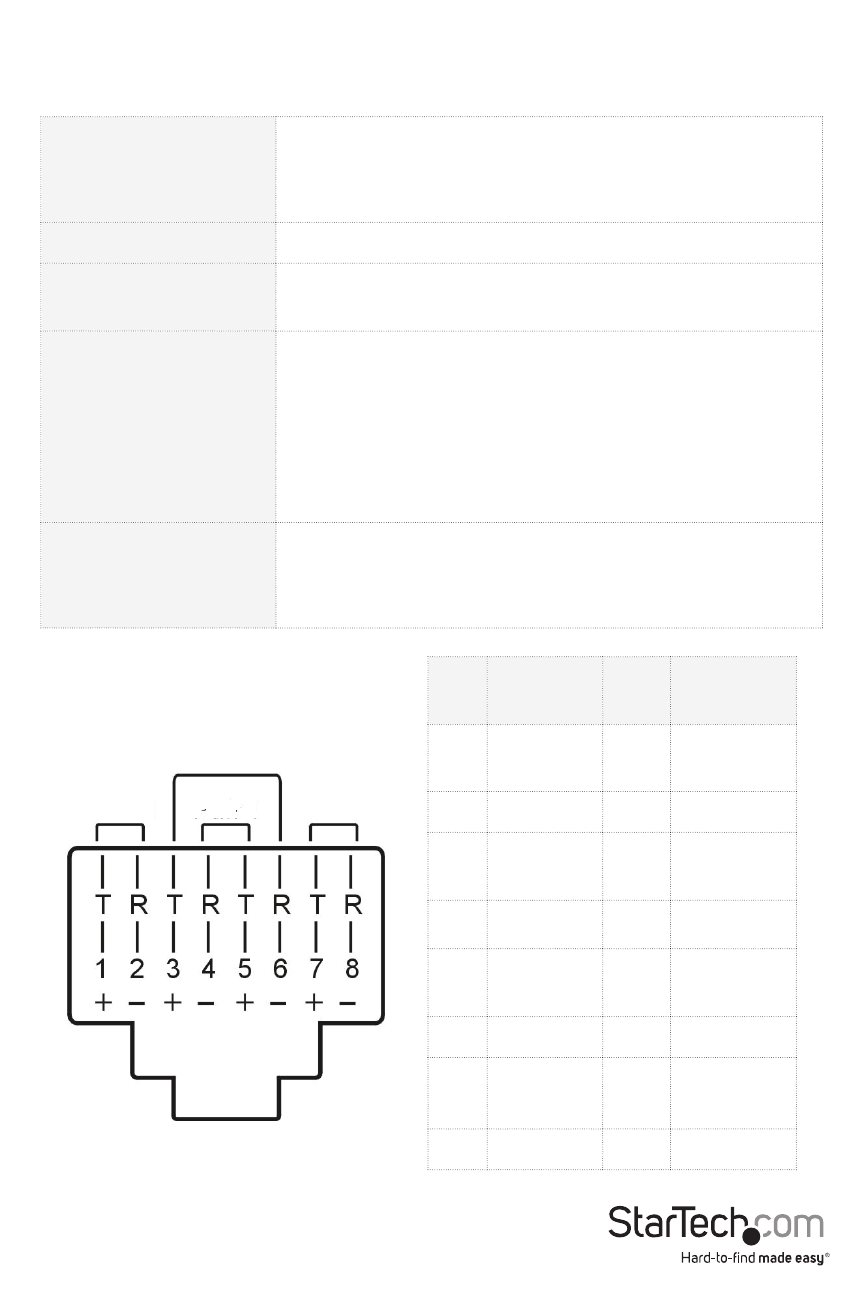

RJ-45 Connector Pinout

Maximum Resolution

1024 x 768 (at maximum UTP cable length)
Actual maximum resolution varies by network cable

length

Maximum Range

500 feet (150 meters)

Network Cabling

Type

Straight-through Unshielded Twisted Pair (UTP) Cat. 5+

Connectors

Each, Host and Remote Unit
2 x HD-15 female (1 x KVM, 1 x console VGA)
1 x RJ-45
2 x USB keyboard/mouse (for console)
1 x Power (optional)

Power Adapter

9V DC, 600mA, center positive (per Unit)
(Optional; only required when connected using a

conventional KVM switch)

Pin

Wire

Color

Pair

Function

1

White/

Orange

2

T

2

Orange

2

R

3

White/

Green

3

T

4

Blue

1

R

5

White/

Blue

1

T

6

Green

3

R

7

White/

Brown

4

T

8

Brown

4

R

Pair 1

Pair 3

Pair 2

Pair 4
