Specialty Concepts SC2 User Manual

Page 8

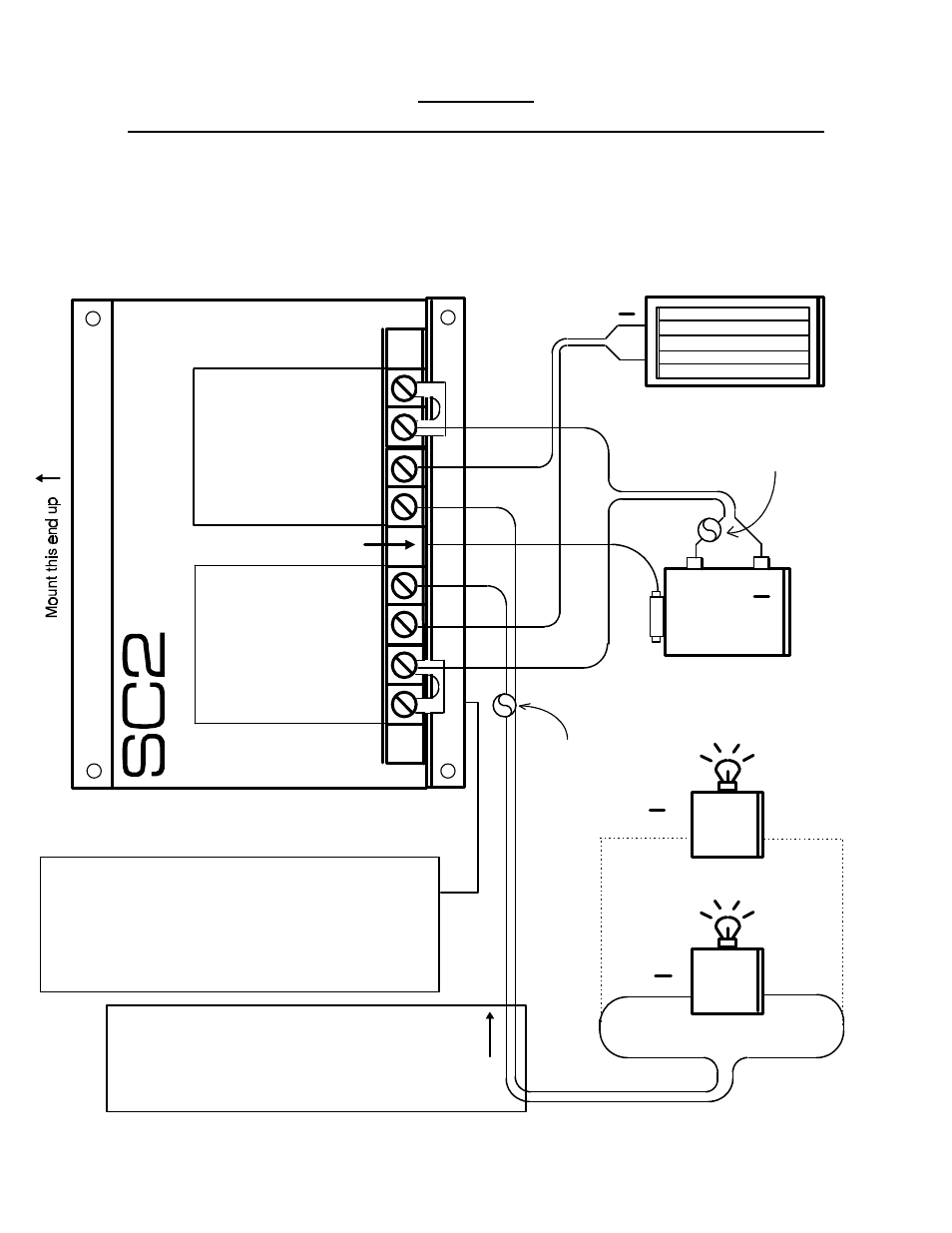

FIGURE 1

SPECIALTY CONCEPTS CHARGE CONTROLLER MODEL 2

ADDITIONAL LOAD

Jumpers: This jumper and the jumper on the

negative terminal, should remain as shown
unless a Battery Voltage Sense Connection is
needed.

See INSTALLATION INSTRUCTIONS -

BATTERY VOLTAGE SENSE CONNECTION

PECIALTY

ONCEPTS

CHARGER MODEL

BATTERY

SOLAR
ARRAY

PANEL

LOAD

BATT (-)

ARRAY (-)

ARRAY (+)

BATT (+)

LOAD (-)

LOAD (+)

BATT SENSE (-)

BATT SENSE (+)

Temperature compensation
(Optional)

30 amp fuse
(or 50 amp with

P-Option)

Fuse: Rated for

load

Note: This connection from the load can be

wired to the SC2 directly (as shown) or the
load can connect directly to the battery.

See INSTALLATION INSTRUCTIONS -

COMPLETE LOAD CONNECTIONS
