4.
Testing
4. How to perform a test
This page shows how to test your CS-CAN.
You do not have to install additional application or utility to run CS-CAN v1.0. (However, for
your convenience, we provide separate utility for you to set and test your CS-CAN v1.0
more easily.) Connect CS-CAN v1.0 to your computer or with communication device and
supply power to use it.
1. Connect the RS232 from your CS-CAN to your serial port in your PC.
2. Supply power to CS-CAN. (CAN side: Pin 6 = GND, Pin 9 = +5V)

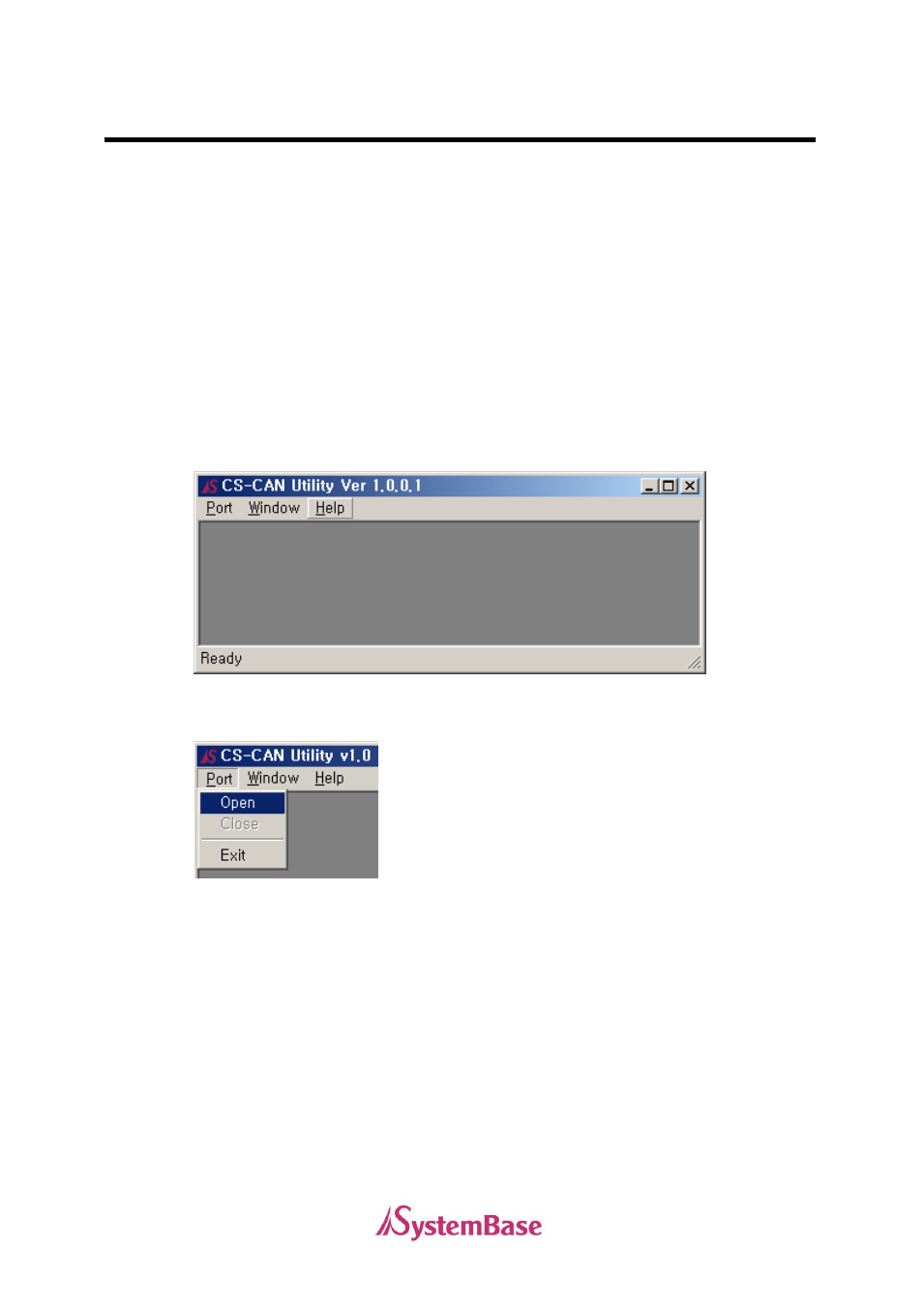

3. After you run CS-CAN Utility, when you see a screen as follows, click on Port menu.
4. Click Open button under Port menu.
