Features in CS-CAN utility
The descriptions for the top part of the columns in the Port windows are as follows.
Column Description
Port Port number
Status
Current status
- N/A : Cannot detect CS-CAN
- Config : CS-CAN is in Configuration mode
- Active : CS-CAN is in Active mode
- Search : Looking for the connected information with
the CS-CAN
FW Ver. Displays the firmware version of current CS-CAN
RS232 Displays the connected settings for the RS232 in CS-CAN
CAN Displays the connected settings for the CAN in CS-CAN
ID Configure ID for the CAN message you wish to receive from.
Mask Configure ID for the CAN message you wish to receive from.
Tx Number of CAN messages sent from CS-CAN
Rx Number of CAN messages received from CS-CAN
Error Displays an error information in CS-CAN
Target ID CAN message ID from the CS-CAN trying to send.
Spec. CAN Message Spec. from the CS-CAN trying to send
RTR Specify whether CAN frame is Data type or Remote type
DLC Determine the size of the data in CAN frame
D1~D8 Assign data to be sent
Time After ‘Read Status’ is clicked, the elapsed time is displayed.

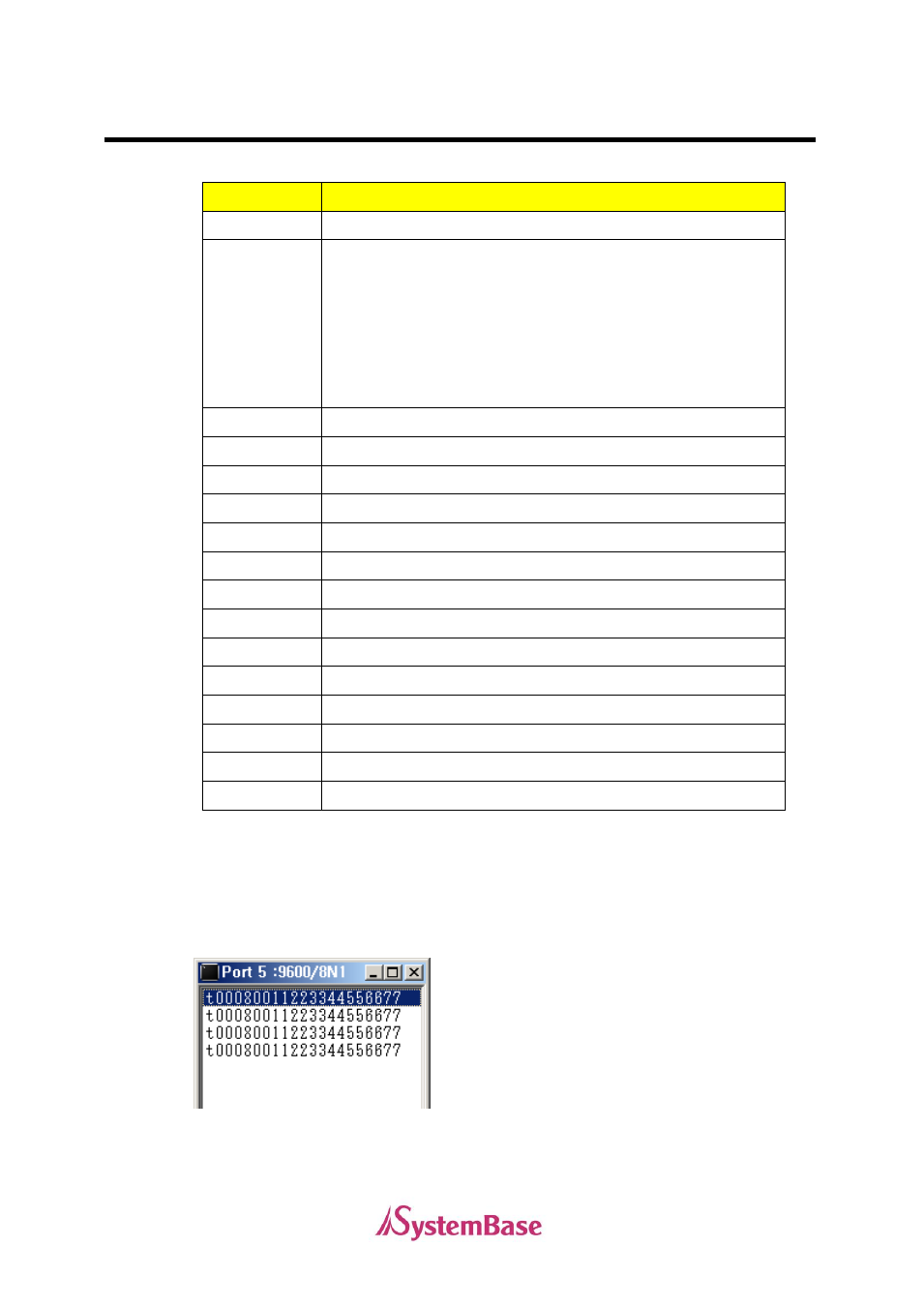

3.4. Terminal window
Each terminal windows is generated by each ports and data received by each ports are
displayed. On the title bar, port number and RS232 communication settings are displayed.
