Features in CS-CAN utility
3.2. Port open dialog box

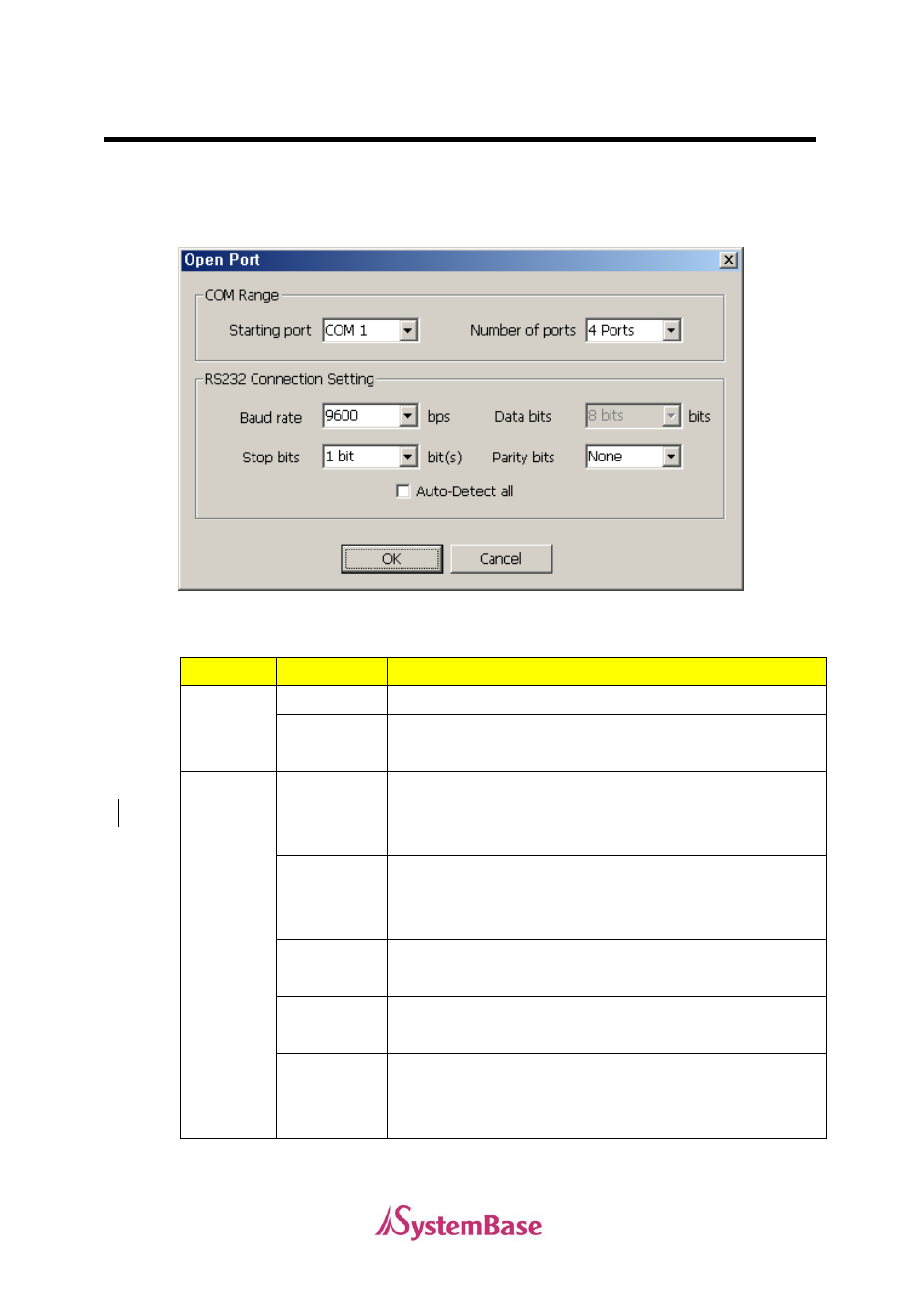

Click on the “Port” from the submenu and click “Open” to see the Open Port dialog box
shown as below.
Description for each entries are as follows.
Title Submenu Description
COM
Range
Starting port Ports will open consecutively from the selected port number.
Number of
ports
Number of ports will be opened consecutively depending on
the selected number.
RS232
Connection
Setting
Baud rate
Speed of RS232 communication
(1200, 2400, 3600, 4800, 9600, 14400, 19200, 38400
, 57600, 115200)
Data bits
Set data bits in RS232 trying to communicate with CS-CAN.
(Commands are in ASCII format, therefore only 8bits are
supported)
Stop bits
Set stop bits in RS232 trying to communicate with CS-CAN.
(1 bit, 2 bits)
Parity bits
Set parity bits in RS232 trying to communicate with CS-CAN.
(None, Even, Odd, Mark, Space)
Auto-Detect
all
Used when settings for connections are unknown for RS232
trying to communicate with CS-CAN.
(Note: This may take up to 5 minutes.)
