Multi-1ALL/PCI
- RS422 Model

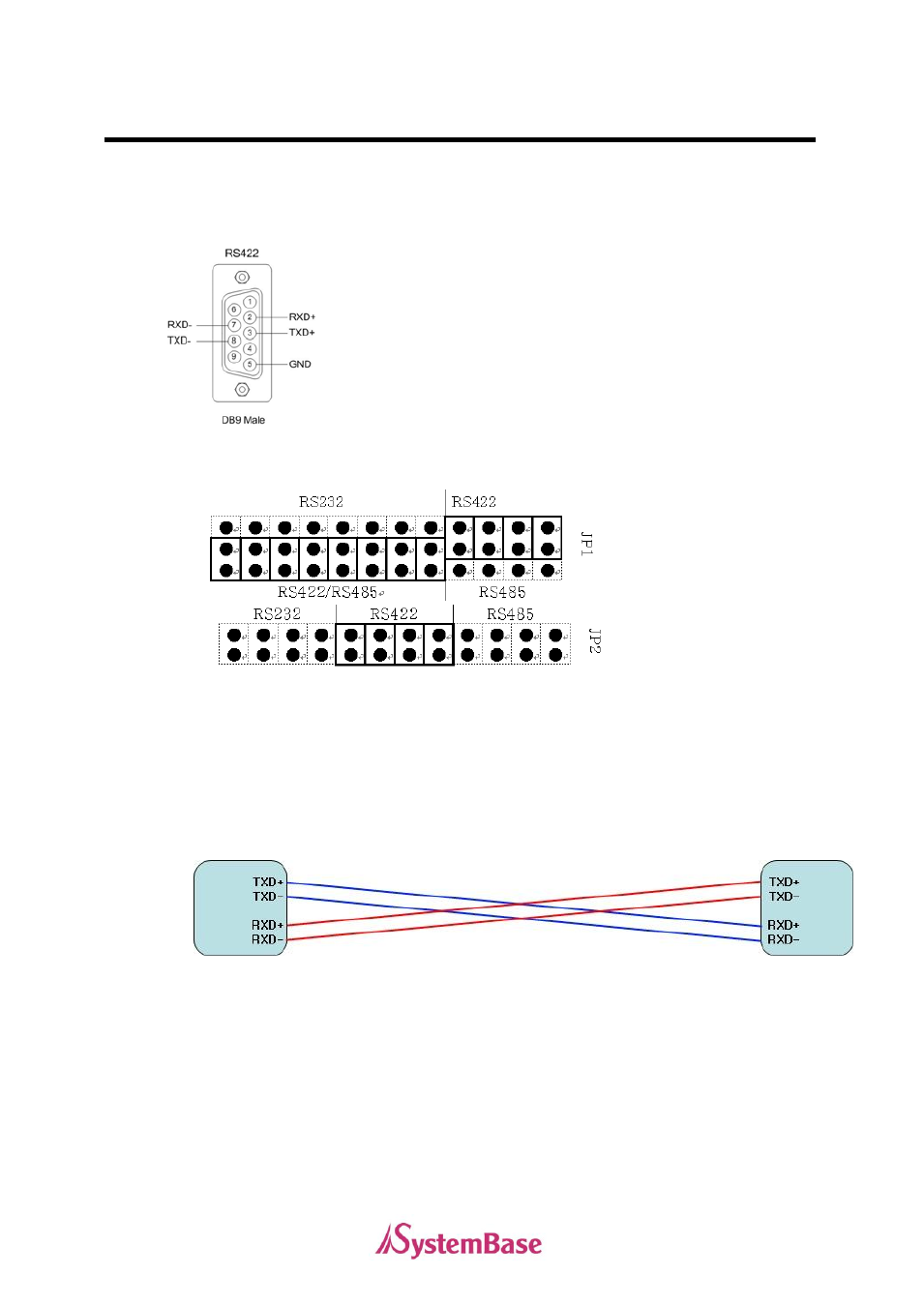

1. 9 Pin Connector (Male)
2. RS422 Jumper Configuration
3. Mode Change
When installing the device driver, select either point-to-point mode or multi-drop mode
by software. The default is point-to-point mode.
4. RS422 Point to Point Connection
