Multi-1ALL/PCI
- RS232 Model

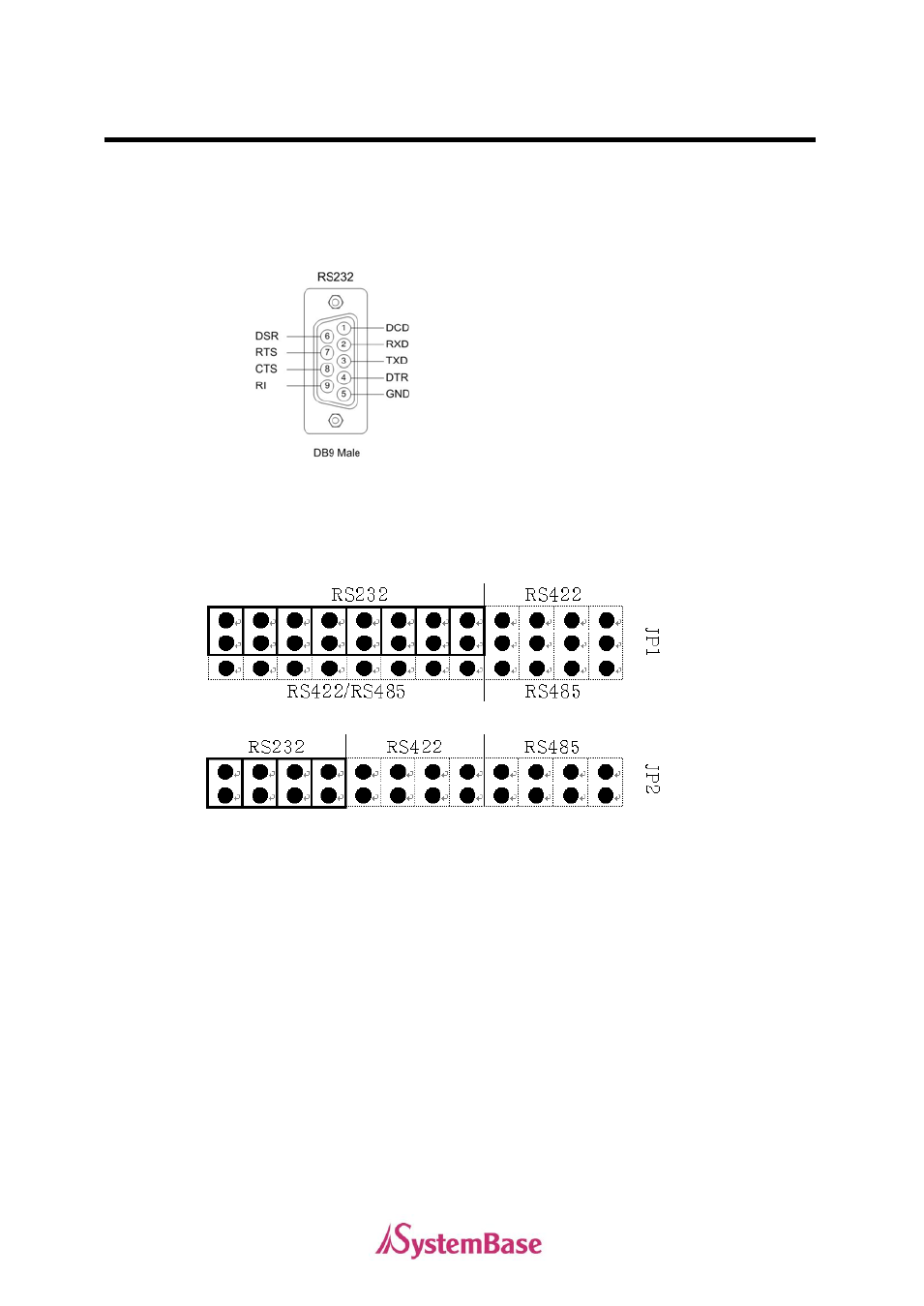

1. RS232 Connector Pin-outs
9 Pin Connector (Male)
5V, 12V Power can be supplied through 9-pin connector, using the board
jumper setting
2. RS232 Jumper Configuration
