14 - MAINTENANCE

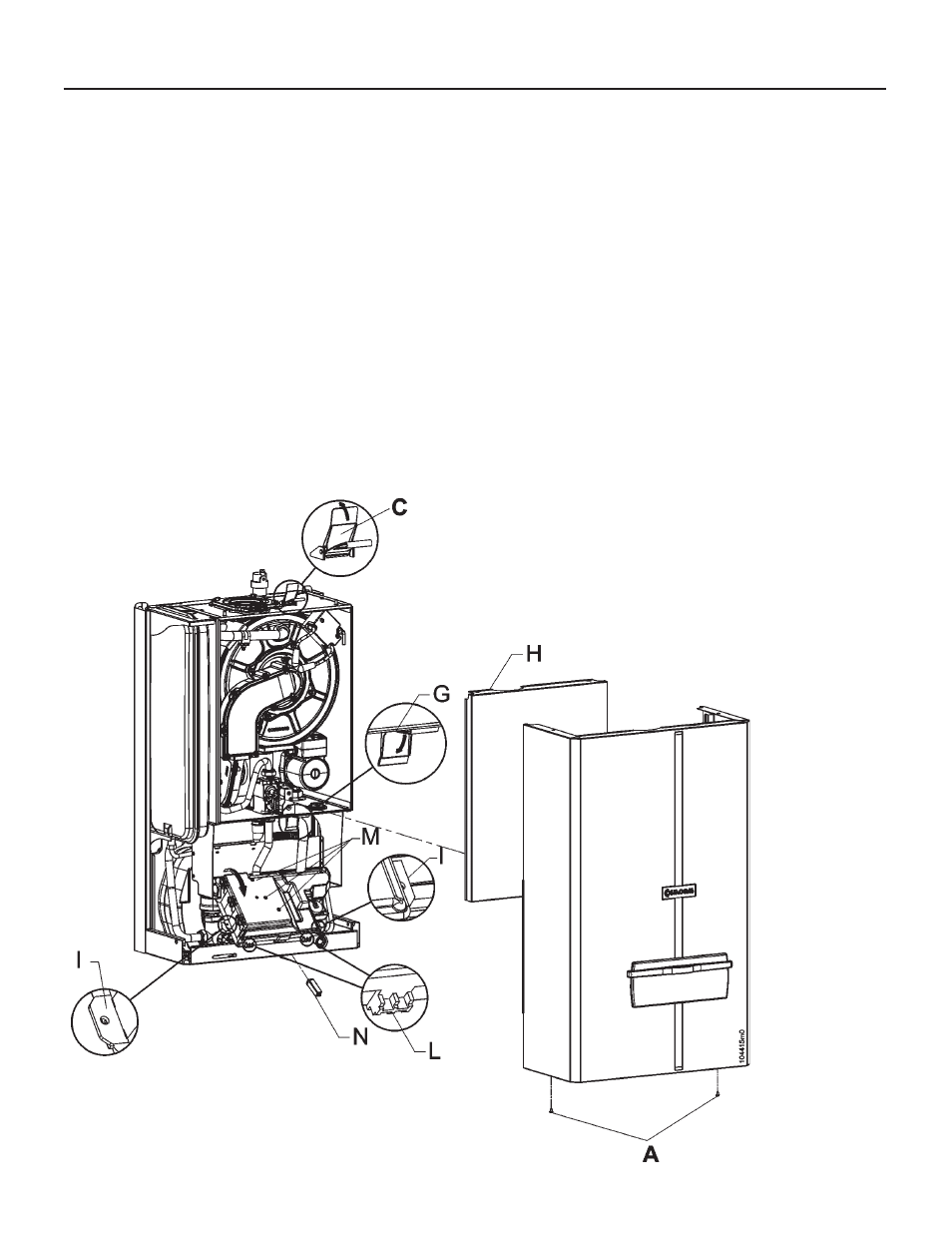

Figure 14-1 Removing the casing
14.2 - Removing the
casing
In order to remove the casing, follow
the steps below while refering to
Figure 14-1:
1. remove screws “A”;
2. raise latch “C”;
3. remove the front cover;
4. press the two plastic springs, item
“L”, down;
5. lower the electrical box;
6. lift latch “G”;
7. pull the bottom of cover “H” out by
around 4 in (10 cm);
8. lift cover “H” up by around 1in (2
cm) and remove it.
