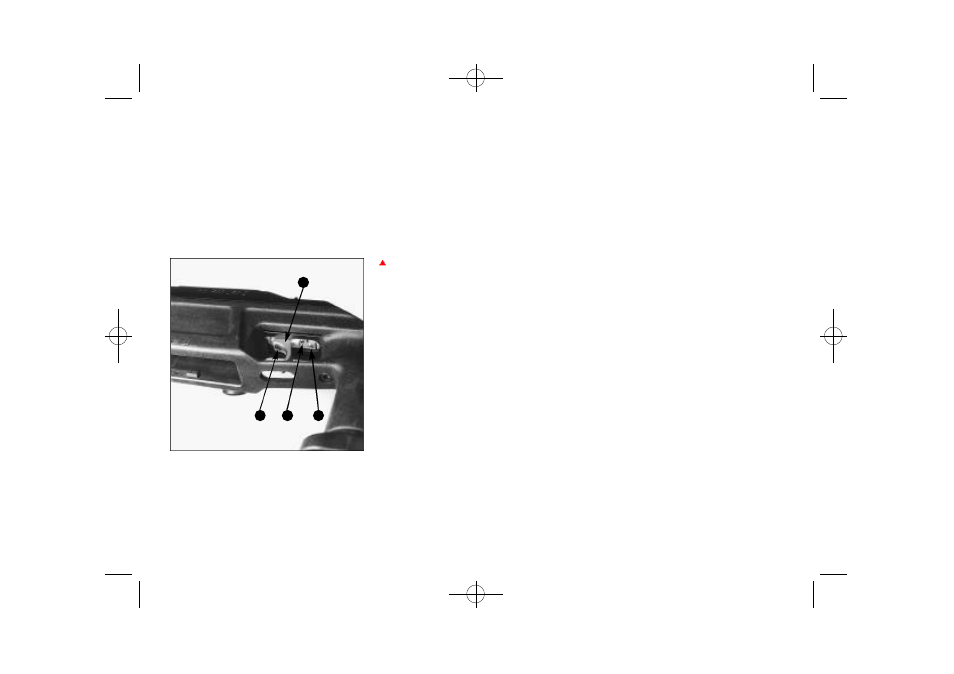

fig.22
15. Trigger assembly
15.1 Trigger assembly
The Blaser R 93 LRS 2 bolt action rifle
is equipped with an adjustable direct
t r i g g e r. The trigger pull weight is adjusted
at the factory to approx. 1200 g (9.8 N).
Adjustment potential:
- Trigger position
- Trigger pull
- Trigger stop
WARNING:
Before making any adjustments
make sure there are no cartridges in
the chamber or magazine.
15.2 Trigger position
The trigger blade (fig. 22-1) can be
moved along the longitudinal axis to
adapt to the hand of the shooter.
• loosen lock screw (fig. 22-2).
• shift trigger blade to the desired
p o s i t i o n .
• tighten lock screw (fig. 22-2).
15.3 Trigger pull
The trigger pull weight can be adjusted
with the trigger pull screw (fig. 22-3):
• increase trigger pull weight
t u rn the trigger pull screw (fig. 22-3)
c l o c k w i s e
• decrease trigger pull weight
t u rn the trigger pull screw (fig. 22-3)
c o u n t e rc l o c k w i s e .
15.4 Tr i g g e r s t o p
The trigger stop can be adjusted with the
trigger stop screw (fig. 22-4):
• t u rn triggerstop screw (fig. 22-4)
clockwise until trigger is past the
release point.
• put the safety in the “off safe“
p o s i t i o n .
• pull the trigger and turn triggerstop
s c rew (fig. 22-4) c o u n t e rclockwise until
the sear releases the firing pin.
• by counting to turn the triggerstop
s c rew (fig. 22-4) c o u n t e rclockwise the
d e s i red travel beyond the release point
can be adjusted.
