INSTALLATION (CONTINUED)
SRI6PF and SRI20PF Sliding Shelf Installation
Note: The SRI6PF does not come with a sliding shelf. Sliding shelves for the SRI6PF must be
purchased separately.
1. Laterally insert the
sliding mounting bracket’s 2 pairs of twin tabs (front and back) into the
slots on the sides of the incubator chamber. See Figure 5.
2. Slide the bracket down so that the tabs are securely seated in the mounting slots. See
Figure 6.
3. Secure the bottom flange of the sliding mounting bracket to the side of the chamber interior
by threading and screwing in 2 screws, at the front and back of the flange. See Figures 7
and 8.

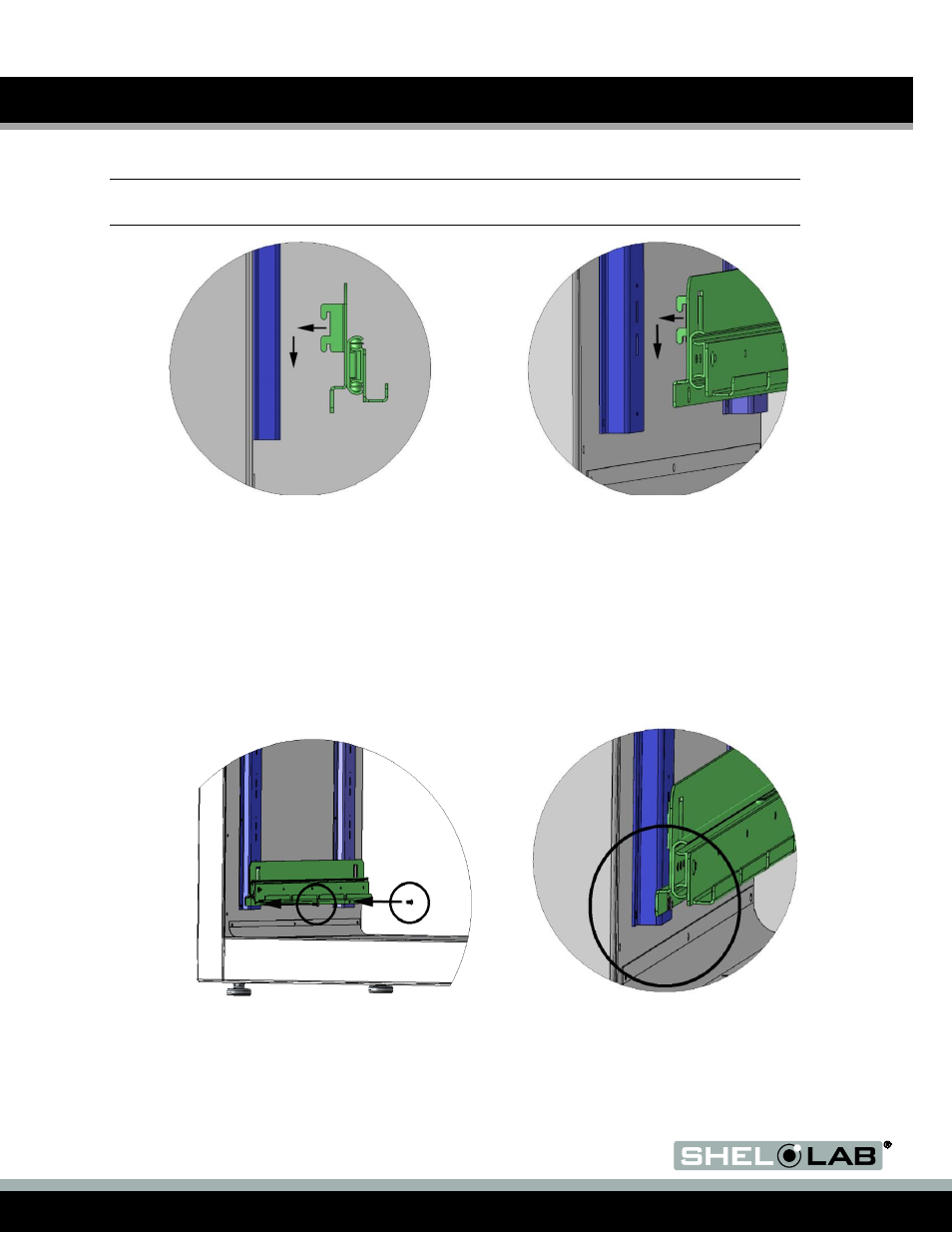

Figure 5: Sliding Shelf Mounting
Bracket Installation
Figure 6: Sliding Shelf Mounting
Bracket Installation
Figure 7: Sliding Mounting Bracket
Screws
Figure 8: Sliding Mounting Bracket
Front Screw Installed
