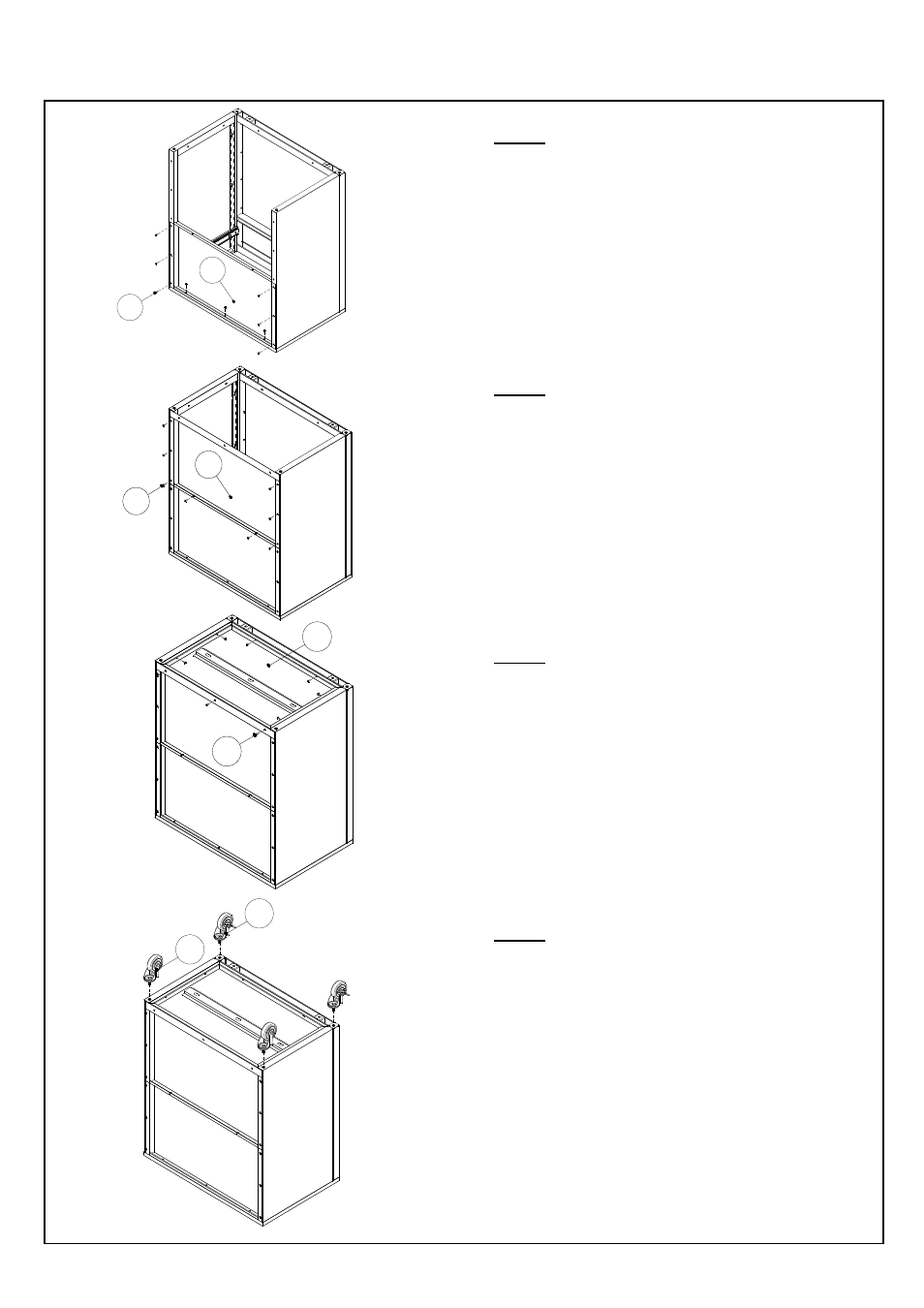

Step 5.

Step 6.

Step 7.

Step 8. Install Wheels (#9 and #10)

Attach Wheels (#9 and #10) to the Bottom Panel
(#7) and surrounding frame. Make sure the
Swivel Wheels with Brake are installed at the
front side. Use Wrench (#25-1) to tighten them.

Install the Bottom Panel (#7)

Attach the Bottom Panel (#7) to the Left Panel
(#4), Right Panel (#5), Front Frame (#6), Bottom
Back Panel (#3), line up screw holes and use 9pcs
Screw A (#14) to tighten.

Attach Bottom Back Panel (#3) between the Left
Panel (#4) and Right Panel (#5). Make sure the
“Top” of the Bottom Back Panel (#3) is to the
Upper Back Panel (#2) as the sticker indicates.
Line up the screw holes and use 8pcs Screw A
(#14) to tighten the Bottom Back Panel (#3) to
the Upper Back Panel (#2), Left Panel (#4) and
Right Panel (#5).

UltraHD Rolling Cabinet (Model No. 20238F)

(pg 6 of 10)

Install the Upper Back Panel (#2)

Attach the Upper Back Panel (#2) between the
Left Panel (#4) and Right Panel (#5). Make sure
the “Top” of the Upper Back Panel (#2) is on the
Stainless Steel Top (#1) as the sticker indicates.
Line up the screw holes and use 9pcs Screw A
(#14) to tighten up the Upper Back Panel to the
Stainless Steel Top (#1), Left Panel (#4) and Right
Panel (#5).

Install the Bottom Back Panel (#3)

#14

#10
