Seville Classics UHD20238F User Manual

Page 6

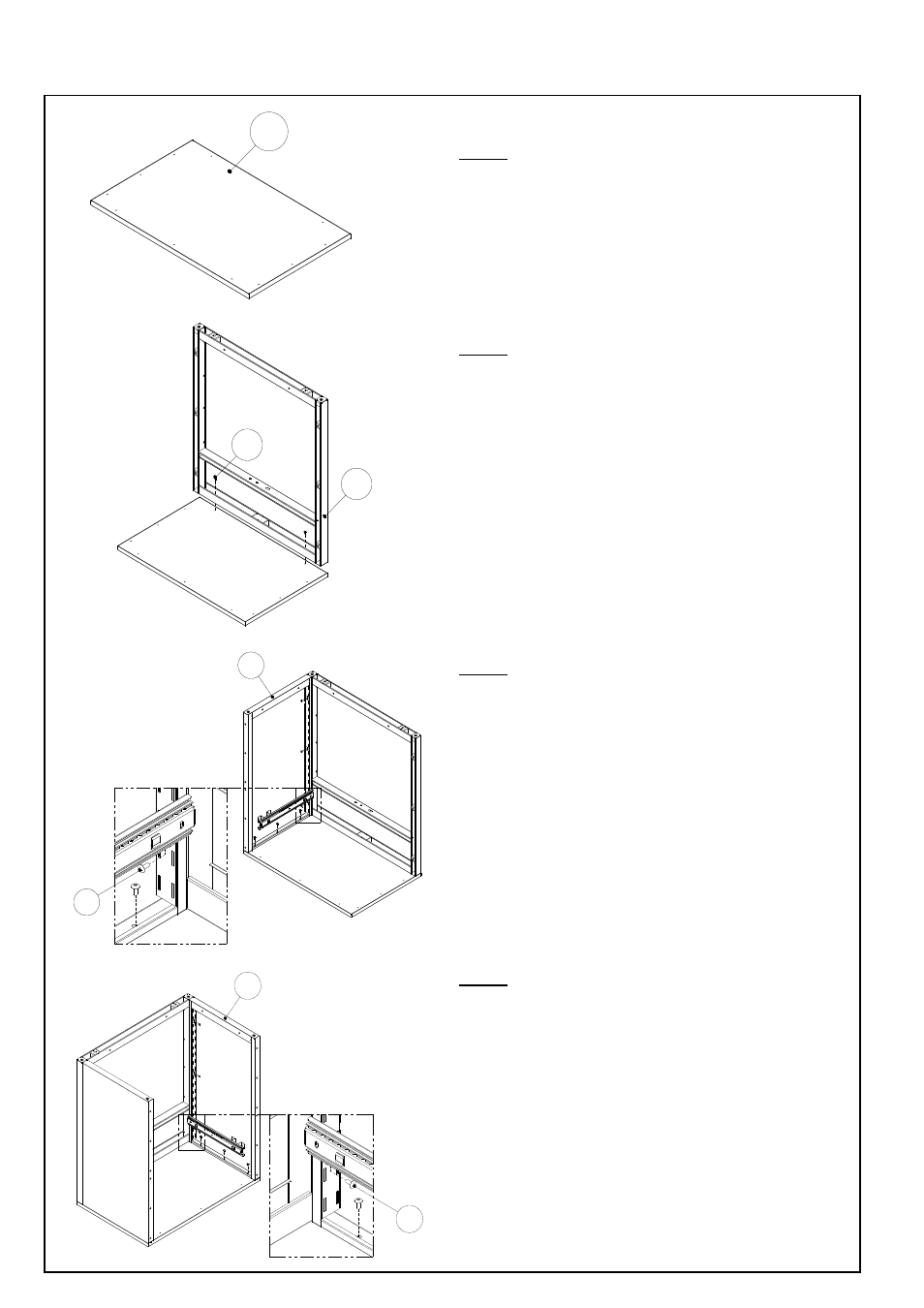

Step 1.

Step 2.

Step 3.

Step 4.

Attach the Right Panel (#5) to Front Frame (#6) and
The Stainless Steel Top (#1), Make sure the “Top” of
the Left Panel (#4) is on the Stainless Steel Top (#1)
and the screw holes are lined up to the Front Frame
(#6), Use Screwdriver (#21) and 6pcs Screw A (#14) to
tighten the Right Panel (#5) the Front Frame (#6) and
Stainless Steel Top (#1).

Locate the Front Frame (#6)and attach to the "Front"
of the Stainless Steel Top (#1), using 2pcs Screw A
(#14) and Screwdriver (#21) to tighten.

Note: The screw holes have some tolerance so make
sure that the top and sides of the Front Frame are
flushed with the Stainless Steel Top (#1) – this may
save time by avoiding having to make slight
adjustments later.

Install the Right Panel (#5).

UltraHD Rolling Cabinet (Model No. 20238F)

(pg 5 of 10)

Install Front Frame (#6)

Install the Left Panel (#4)

Attach the Left Panel (#4) to the Front Frame (#6) and
the Stainless Steel Top (#1). Make sure the “Top” of
the Left Panel (#4) is on the Stainless Steel Top (#1)
and the screw holes are lined up to the Front Frame
(#6). Use Screwdriver (#21) and 6pcs Screw A (#14) to
tighten the Left Panel (#4) to the Front Frame (#6),
and then to Stainless Steel Top (#1).

Open the package, remove and place all parts to the
side. Then open the package of the Stainless Steel Top
(#1).
Note: The Stainless Steel Top is packed within an
inner cardboard box. Assemble the unit on top of this
cardboard box to minimize damage to the stainless
steel surface.

Front

Back

#14
