Specifications Dometic 4300/4400 Series Toilets

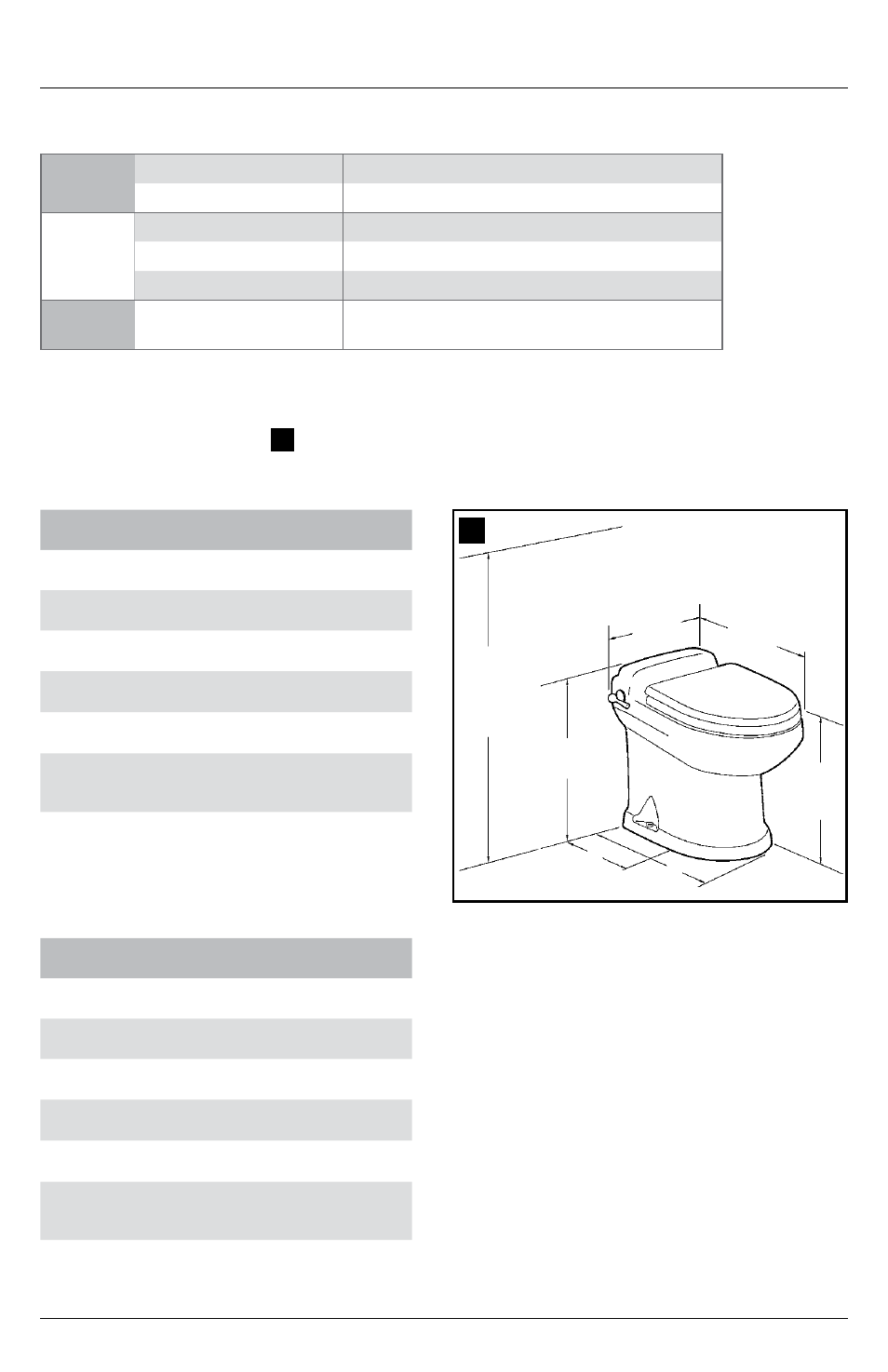

4.3 Dimensions (fig . 1
) All dimensions may vary ±3/8 inch (10 mm)
4.2 Minimum System Requirements
Electrical
Circuit breaker 2 amps/12 V DC
Wiring 14 gauge stranded copper
Water
Supply
Fitting 0.5 in. NPT
Flow rate 4 gpm/15 lpm minimum at toilet
Maximum flow pressure 40 PSI / 276 kPa
Discharge Fitting
4-bolt floor (closet) flange. 3-in. (76 mm) ID
ABS or PVC connection to holding tank
Specifications are subject to change without notice .
Ref. Dimension
A 19 in . / 483 mm
B 14 .75 in . / 375 mm
C 21 .5 in . / 546 mm *
D 17 .75 in . / 451 mm - seat height
E 17 .125 in . / 435 mm *
F 10 in . / 254 mm - centerline
rough-in *
G 33 .75 in . / 857 mm - seat lid up
Ref. Dimension
A 19 in . / 483 mm
B 15 .875 in . / 403 mm
C 21 .5 in . / 546 mm *
D 17 .75 in . / 451 mm - seat height
E 17 .125 in . / 435 mm *
F 10 in . / 254 mm - centerline
rough-in *
G 33 .75 in . / 857 mm - seat lid up
Models with wall-mounted flush touchpad
Models with flush handle
A
B
C
D
E
F
G
1
* For toilet models with hand sprayer, add 0 .25 in . /
6 .3 mm to dimensions C, E, F to allow small space
between toilet and wall .
