6

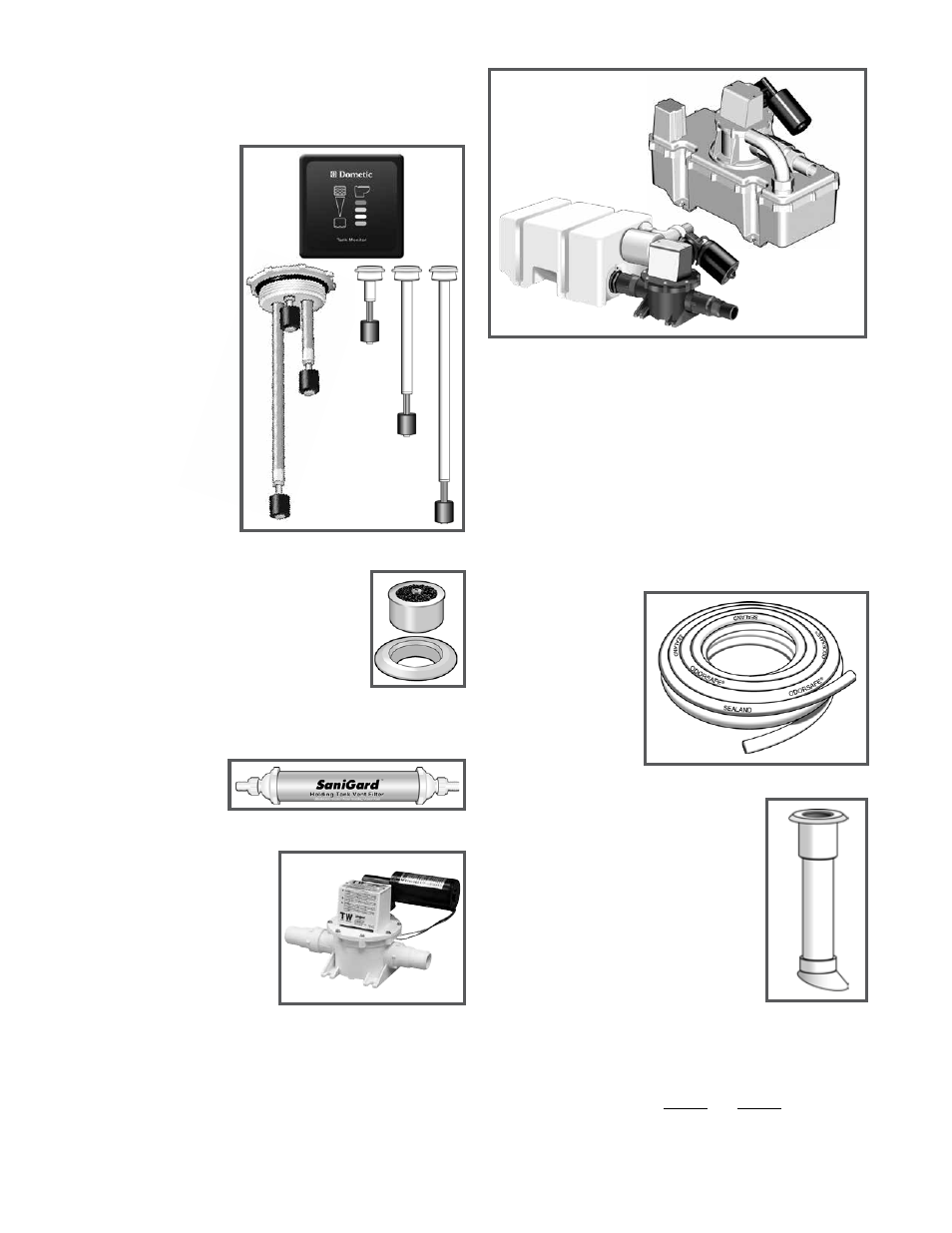

SaniGard™ Holding Tank Vent Filter*
With odor-removing filter media, the vent filter stops odors from
escaping the holding tank vent. Keeps boats smelling clean
and pleasant. Each
cartridge is good for
an entire season and is
easily replaced.
Plumbing Connection Dimensions
Inlet Fitting Size:
1-1/2 inch
38.1 mm
Outlet Fitting Size:
1-1/2 inch
38.1 mm
Vent Inlet/Outlet Size: 5/8 inch
15.9 mm
Electrical Requirements
12 VDC
24 VDC
Vacuum Generator:
10 amp
5 amp
Level Indicator:
3 amp
3 amp
Discharge Pump:
10 amp
5 amp
†
†
†
Requires separate circuit breaker.
HTS Components
VacuFlush
®
Vacuum Generators*
On HTS-VG models, VacuFlush vacuum generators combine
the vacuum tank and vacuum pump in one unit. All models
eliminate hose runs between the vacuum tank and pump of
previous VacuFlush systems. HTS vacuum generators feature
high-performance vacuum pumps, offering quieter operation
and faster vacuum generation than previous models.
Other HTS Features
OdorSafe
®
Plus Sanitation Hose
OdorSafe Plus hose provides the best odor barrier of any marine
hose available. It delivers
up to 19 times greater
resistance to sulfurous
malodors than other “no-
odor” marine hoses. On
HTS models, it's used
for all 1.5-inch (38mm)
hose connections. It's
also best for connecting
the discharge pump to
the through-hull and deck
waste fittings.
Diptube Discharge
Our diptube discharge design allows for removal
of waste from the top of the holding tank rather
than near the bottom of the tank. This feature
greatly reduces the opportunities for stagnant
sewage to sit in tank discharge lines – a main
cause of odor permeation and hose failure.
Plumbing, Electrical Specifications
Dometic, OdorSafe, SeaLand, and VacuFlush are registered trademarks
of Dometic Corporation.
SaniGard, SaniPump and TankSaver are trademarks of Dometic Corporation.
TankSaver™ Vacuum Relief Valve
Prevents damage due to tank implosion from
dockside pumps that generate very high vacuum.
TankSaver valve opens automatically under
vacuum, but remains sealed regardless of shock-
loading or vibrations.
DTM04 Level Monitor and Micro-Float Switches*
I n c l u d e s f o u r t a n k
levels – Empty, Low, Mid
and Full. Micro-float
switches are installed in
holding tank. No electri-
cal components contact
waste or water. Operates
on 12 or 24-volt DC. Uses
only .008 amps at 12 V
DC. Micro-float switches
are installed either as a
unit (with a 3-inch cap)
or as separate indicators.
SaniPump™ Overboard
Discharge Pump*
Runs dry without harm. Draws
6 amps at 12 VDC. Delivers flow
rate of 3.9 gallons per minute (14.7
liters per minute). Connects to
through-hull fitting. Check Marine
Sanitation Regulations for informa-
tion on areas where discharge is
allowed.
* Not available on all HTS models.
VacuFlush
Shutdown Relay*
To prevent overfilling a
holding tank, a shutdown
relay is supplied with HTS-
VG models. When the
tank reaches "Full", the
relay shuts off the vacu-
um generator, preventing
further flushing of the
toilet.
Separate
Float Switches
Combined
Float Switches
