3

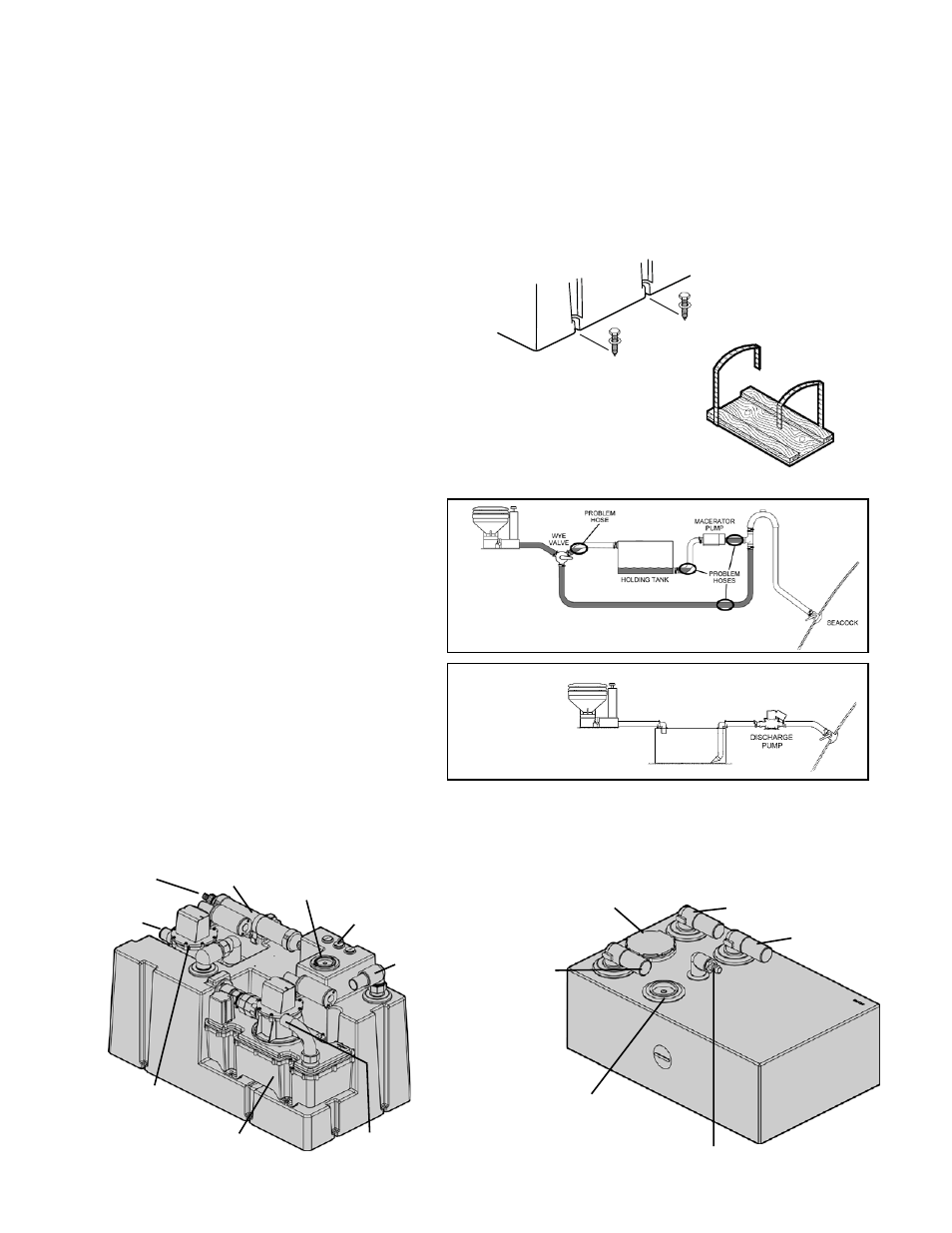

Installation
CHOOSING A LOCATION FOR THE HTS
As a general rule, the HTS should be positioned as low in the hull as possible with all interconnecting hoses or pipes sloped to permit
gravity drainage and prevent potential hose odor permeation.
The holding tank must not be exposed to temperatures above 120°F (45°C). Do not place near heat sources such as engine
manifolds, water heaters, generators, etc.
Be certain to estimate holding tank weight when filled (typical effluent weighs about 9 lbs. per 1 gallon or 1.08 Kg per liter). Make
certain to allow for total filled weight when selecting materials for mounting the tank. Also consider impact of full tank on vessel trim.
Preparing a Mounting Surface
1. Mount tank to surface that supports the entire area of the
tank.
2. If required, fabricate mounting surface and toe blocks from
13 mm or 19 mm (1/2-inch or 3/4-inch) plywood.
3. Do not mount tank on projections such as screw or bolt
heads, which could puncture the tank.
4. Do not allow holding tank to block free flow of bilge water.
Mounting surface can be
made from plywood and
securing straps.
AVOIDING HOSE ODOR PERMEATION
• Hose failure due to odor permeation almost always
occurs in hose runs which retain sewage when the
system is not in use.
• Eliminate all unnecessary runs which retain trapped
liquids, if possible.
• Where possible, use rigid PVC pipe in sections that
cannot be arranged to drain.
• Simplify hose layout by removing unnecessary valves.
[For specific installations, some regulations and
standards may require the installation of a vented loop
(anti-siphon valve), one-way valve or seacock in
sewage discharge piping.]
Simplified plumbing layout
BASIC HTS CONNECTIONS
TankSaver
vacuum relief valve
Vent line
Inlet from toilet or
vacuum generator
Outlet to deck
discharge fitting
Inspection port
Outlet to
through-hull
discharge
pump
Integrated mounting feet
in holding tank simplify
installation.
HTS / VACUUM GENERATOR CONNECTIONS
Vent line
Outlet to
through-hull
discharge
fitting
Inlet from
toilet
Tank
level indicators
TankSaver
vacuum relief
valve
SaniGard
vent filter
Vacuum
generator
SaniPump
discharge
pump
Outlet to
dockside
discharge
fitting
Complicated plumbing layout
