Reznor JT4BD - 208/230-3 Parts Manuals User Manual

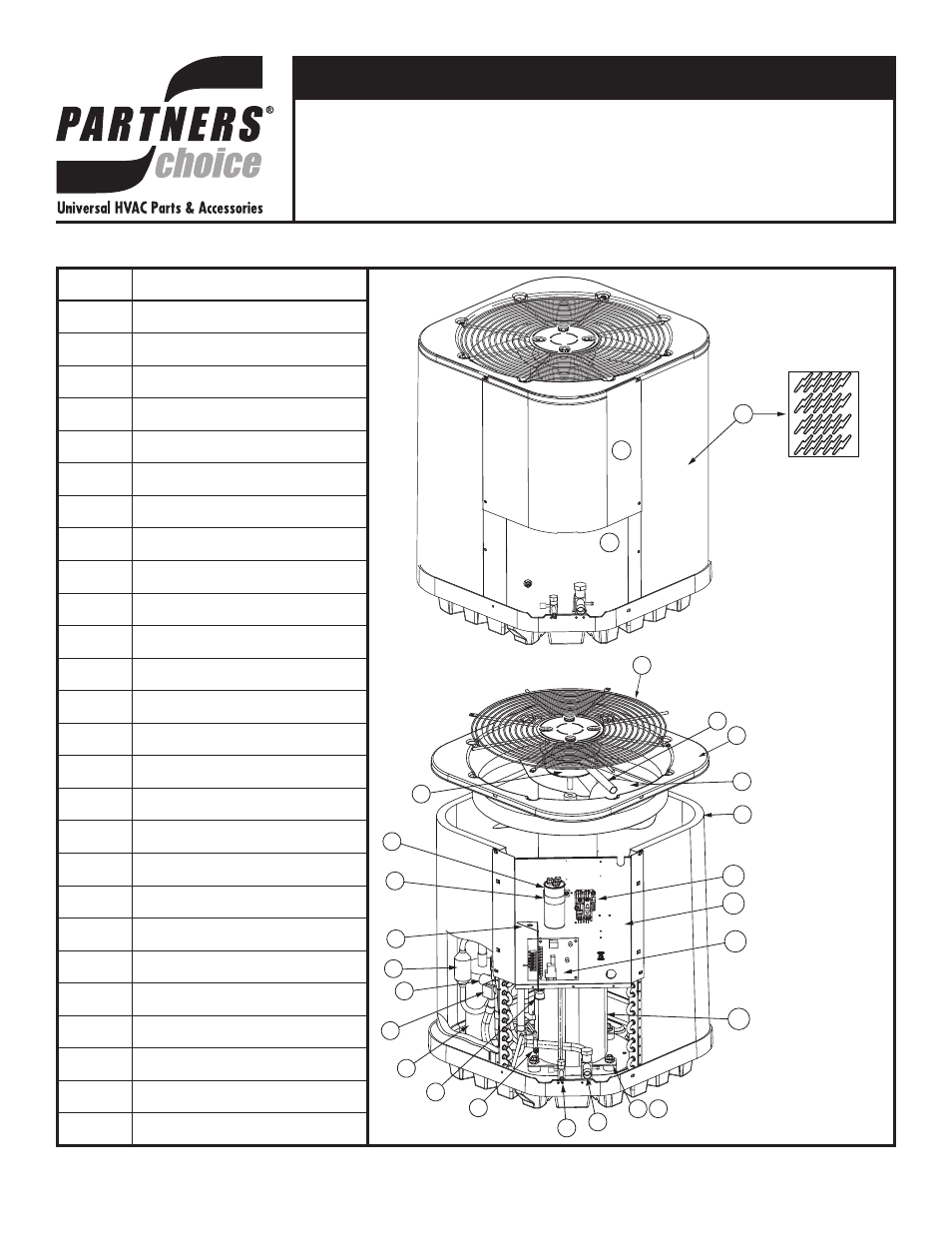

Replacement parts list, Coil jacket style

ITEM #
COMPONENT
1
COMPRESSOR BOLT
2
COMPRESSOR GROMMET
3
REFRIGERANT VALVE (LG)
4
REFRIGERANT VALVE (SM)
5
SHRADER VALVE
6
SWIVEL CONNECTOR
7
ACCUMULATOR
8
REVERSING VALVE COIL
9
REVERSING VALVE
10
MUFFLER
11
LOW VOLTAGE DIVIDER
12
CAPACTIOR STRAP
13
CAPACITOR
14
OUTDOOR FAN MOTOR
15
OUTDOOR FAN GRILLE
16
MOTOR WIRE CONDUIT
17
TOP PAN
18
OUTDOOR FAN BLADE
19
OUTDOOR COIL
20
CONTACTOR
21
CONTROL BOX
22
DEFROST BOARD
23
COMPRESSOR
24
ACCESS PANEL
25
CONTROL BOX COVER
26
OUTDOOR COIL GUARD
24
26
9
10
19
13
16
14
15
18
12
8
11
17
5
4
7
3
2
1
6
23
22
20
21
25
COIL JACKET
STYLE
REPLACEMENT PARTS LIST
LIGHT COMMERCIAL SPLIT SYSTEM HEAT PUMP
JT4BD-C SERIES
3-PHASE, 13 SEER MODELS
