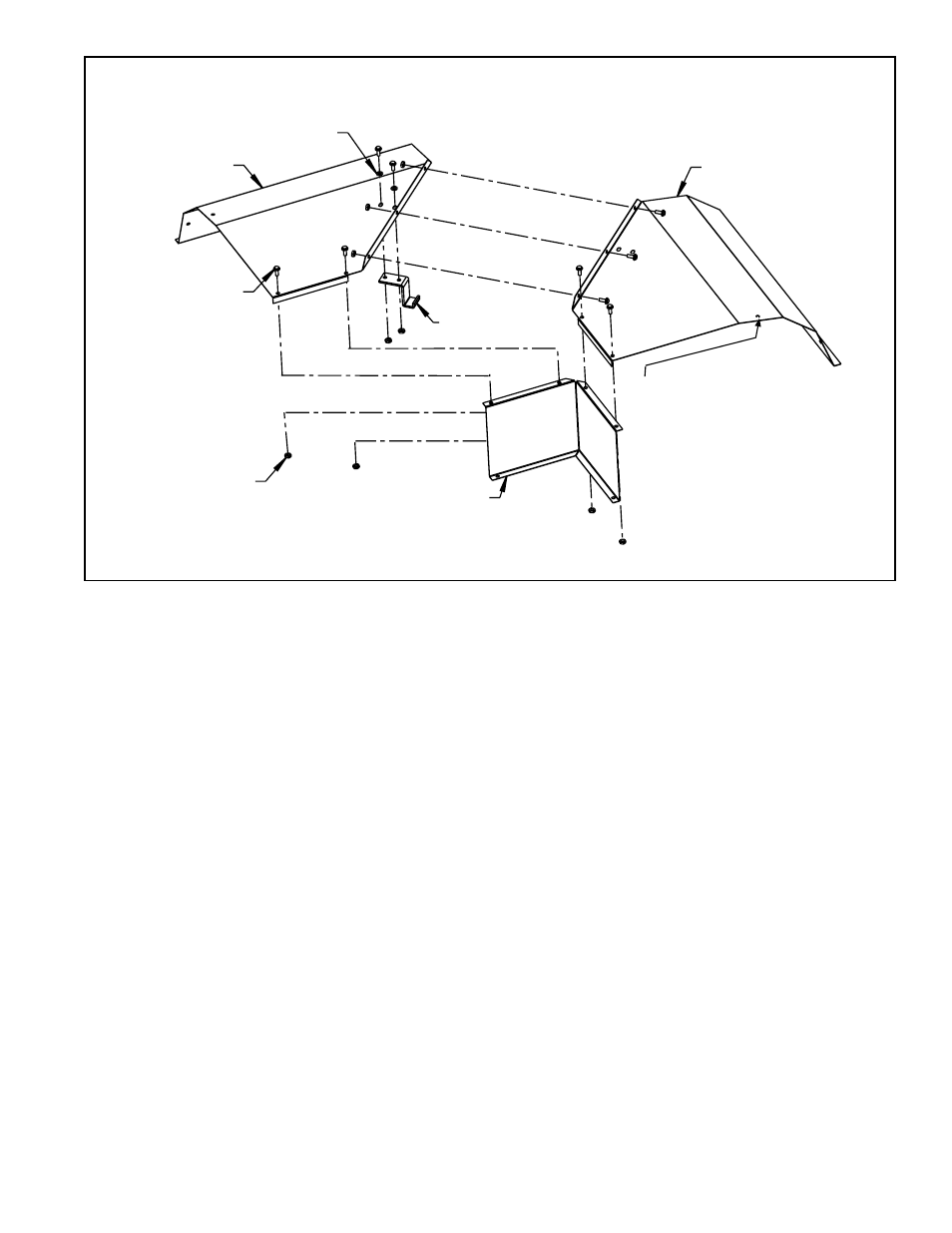

FIGURE 4 - Use the hardware provided to assemble the reflector and attach it to the "L" tube
and the adjacent reflectors.
8. Install the Assembled "L" Tube Reflector - Position the assembled reflector
on top of the "L" tube with the bracket at the center of the bend in the "L". Locate
the two holes on the assembled reflector where it overlaps the adjoining straight
reflector. Mark the holes on the straight reflector. Remove the "L" reflector
assembly and carefully drill 7/32" holes in the straight reflector.
Unfasten the worm clamp. Re-position the reflector on top of the tube with the
bracket at the center of the "L". Wrap the clamp around the "L" tube attaching the
reflector bracket. Fasten the clamp to hold the reflector in place but do not tighten.
Use screws and nuts from the kit to attach the side of the "L" tube reflector
assembly to the adjacent straight reflector.
Tighten the clamp to secure the reflector to the "L" tube.
Use the clips and screws in the kit to attach the flange of the "L" reflector side
to the straight reflector following the same procedure as used when joining two
straight reflectors.
9. Install the Next Adjacent Straight Reflector - Position the reflector in the wire
retainer. Mark and drill holes to attach it to the side of the "L" tube reflector. Use
screws and nuts from the kit to attach the straight reflector to the "L" tube reflector.
Join the flanges with the clips and screws shipped with the straight tubes and
reflectors.
"L" tube and adjacent reflectors cannot be angled.
10. Complete the installation by following the instructions in the heater installation
manual.
“L” Reflector Side,
P/N 268219
10-32 Hex Nut,
P/N 26490
10-32 x 1/2” Bolt,
P/N 113275
*Reflector Bracket,
P/N 120677
Left “L” Reflector
Half, P/N 268226
Right “L” Reflector
Half, P/N 268225
Flat Washer,
P/N 113807
Use holes to attach “L” reflector to
adjacent straight reflectors using:
(4) 10-32 x 1/2” Bolts, P/N 113275
(4) 10-32 Hex Nuts, P/N 26490
*Use the worm clamp to attach the reflector bracket to the “L” tube.
