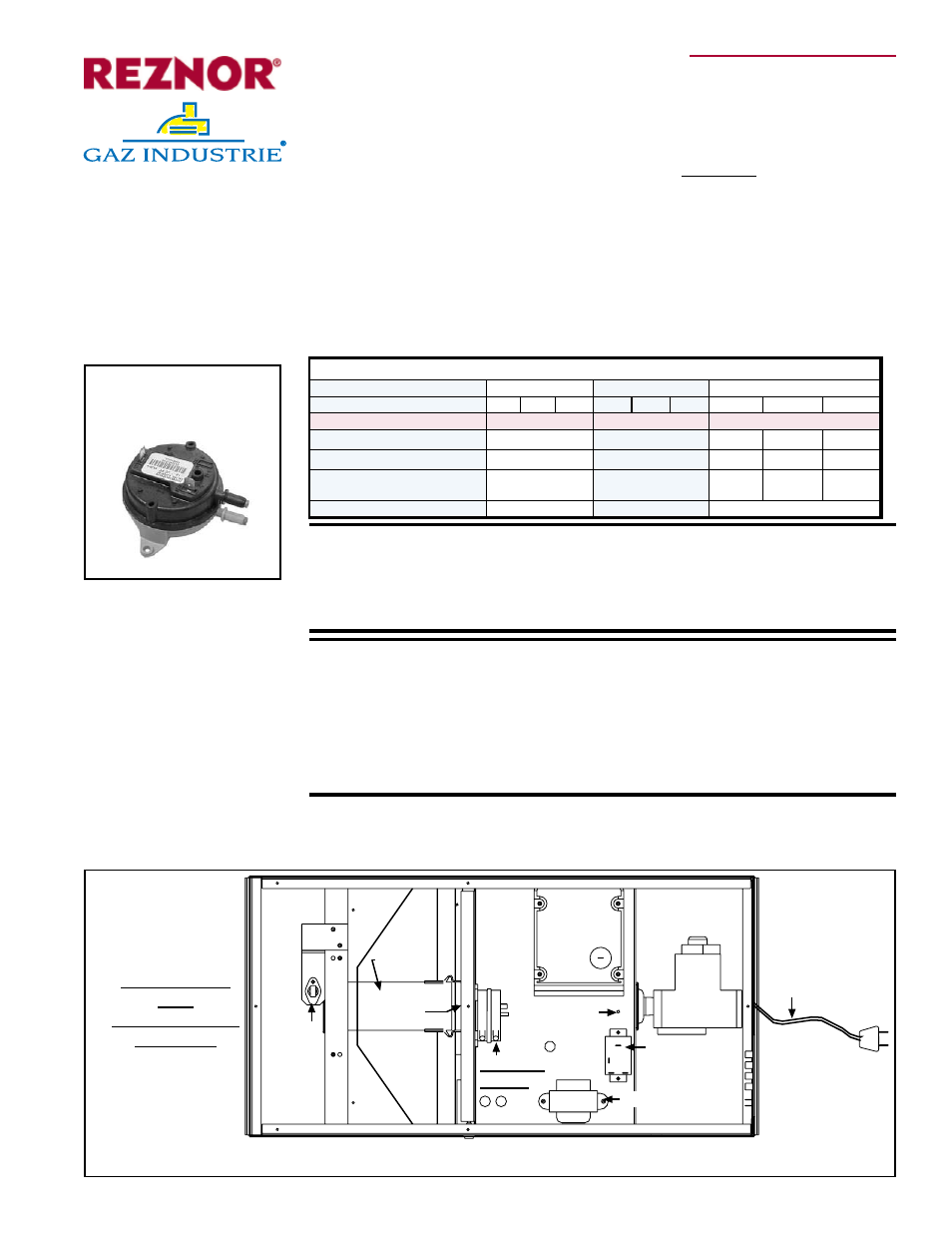

Form I-VR-HA, P/N 205523R1, Page 1

High Altitude Pressure Switches (Option DJ20 required above 6000 ft/1830M)

Model

VR and GVR

VR

VR and GVR

Size

50 75 100 125 150 175

125

150

175

Electrical Frequency

50 Hz or 60 Hz

60 Hz

50 Hz

Option DJ20 Package P/N

205524

205525

258817 258818 258819

High Altitude Switch P/N

205445

205446

197030 203932 205444

Differential OFF Setpoint

(“ w.c.)

0.15

0.70

0.40

0.25

0.30

Label Color

Gray

Pink

Green

High Altitude Kits for Elevations

above 6000Ft/1830M, Option DJ20

Form I-VR-HA (Version A)

Obsoletes Form I-VR-HA

If a Model VR or GVR heater is being installed above 2000 ft (610M), the input

rate must be derated. This is done by adjusting the valve outlet pressure as

explained in the heater installation manual. In addition, if a Model VR or GVR

50, 75, 100, 125, 150, or 175 is being installed at an altitude above 6000 ft

(1830 M), the pressure switch must be changed.

The high altitude pressure switch is ordered as Option DJ20, High Altitude Kit.

Be sure your kit matches your installation.

Application and

Kit Components

Option DJ20 is

required above

6000 ft (1830M)

Installation

Instructions

FIGURE 1 - Pressure

Switch

WARNING: The high altitude kit is to be selected and

installed by a qualified service person in accordance with

these instructions and in compliance with all codes and

requirements of authorities having jurisdiction. The qualified

agency performing this work assumes responsibility for this

installation.

WARNING: The instructions in this sheet are designed to pre-

pare a heater for high altitude operation prior to installation.

If your heater is installed, for your safety, turn off the gas and

the electric before servicing.

1. In the control compartment, locate the pressure switch (FIGURES 1 & 2).

2. Mark and disconnect the two wires attached to the pressure switch.

3. Disconnect the sensing tubes from the pressure switch.

���

�����

�����������

����

�������������

�������

�����

����������

����������

��������

����������

��������

������

����

���������

�����������

��������������

����������������������

���������������

�������������������������������������

���

��������

�����

������

�����

�������

������

FIGURE 2 -

Pressure

Switch

Location

®

Applies to:

Tubular Infrared

Model VR (60 Hz) and Model GVR (50 Hz)
