Form RZ-NA I-VR-HK (Version A), P/N 205403 (Rev 1), page 1
APPLIES TO: Model VR
Hanger Kit
Option CK11
Installation Form RZ-NA I-VR-HK (Version A)
Obsoletes Installation Form RZ-NA I-VR-HK
®
When installed, these tubular radiant heaters must be able to expand, must be
level, and must be restricted from too much lateral sway. The optional hanger
kit includes 50' of chain (rated for 200 lbs) and "S" hooks. The chain must be
cut to length. A minimum of 12" (305mm) total of chain, "S" hooks, and/or
turnbuckle length is required between the tubes and the structure suspension
points.
The burner box has four suspension points. Each straight tube must have at
least one suspension point. Model VR heaters are designed so that the tube
suspension point location can be adjusted slightly to adapt to the building
structure. A straight tube adjacent downstream of an “L” or “U” tube requires
two suspension points.
Heaters should be suspended at a height that has been determined to be most
efficient for that application. Clearances to combustibles must be observed.
Refer to the installation manual for clearances and recommended mounting
heights. Description
WARNING: Improper installation, adjustment,
alteration, service, or maintenance can cause
property damage, injury or death. Read the
installation, operation, and maintenance instructions
thoroughly before installing or servicing this
equipment.
Suspension
Requirements NOTE: Although turnbuckles are not included in this hanger kit, using
turnbuckles in heater suspension is recommended for convenience in
leveling the system. Use either an Option CK12-CK18 Turnbuckle Kit, or
field-supplied turnbuckles of steel or malleable iron.
The installer is responsible for attaching the suspension points to the building and
for adequately supporting the weight of the heater. Suspension point hardware is
field supplied.
The burner/control box has two hanger brackets. To restrict lateral sway of the
heater, locate suspension points as illustrated in FIGURE 1.
9-1/4” (235mm)
15-3/32”
(383mm)
Height
of Box
Including
Hangers
24” (610mm) Distance between
Suspension Points
Attached combustion
chamber tube.
Chains should be plumb with
each suspension point.
Suspension
Point
Suspension
Point
Minimum
12” (305mm)
A =
12”
(305mm)
Minimum
A + A/4
Burner/Control
Box End View
Burner/Control Box
Side View with Combustion
Chamber Tube Attached.
Install a tube bracket
with hanger on each
end of the combustion
chamber tube. Suspend
from both hanger bars.

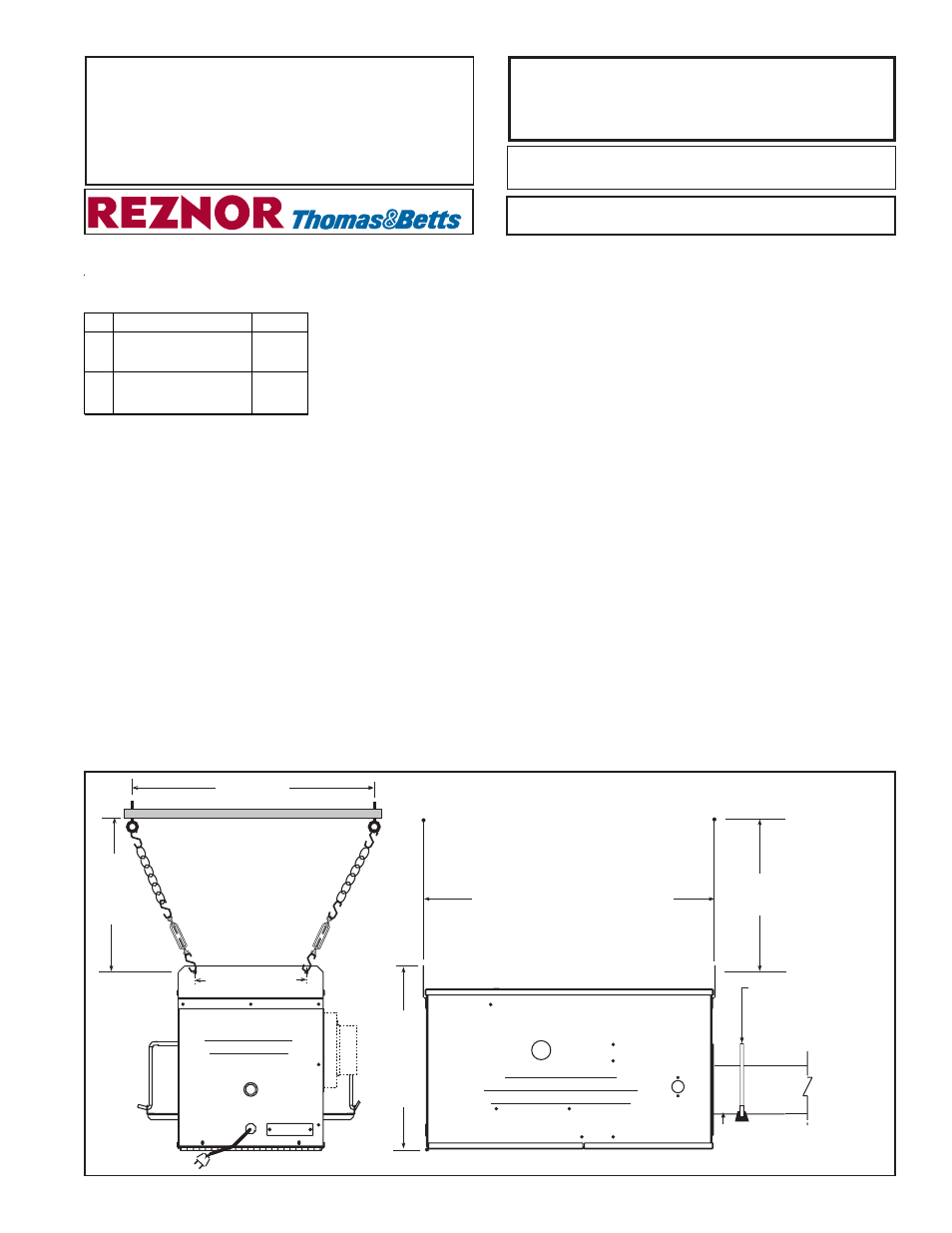

FIGURE 1 - Suspension
Dimensions and Hanging
Arrangement of the Burner/
Control Box and attached
Combustion Chamber Tube
Qty Description P/N
1 50' long chain (200-
lb working load)
120703
22 S Hooks (for tube
suspension points*)
116034
* The four "S" hooks for the
burner/control box are in the
burner/control box hardware
package.
Option CK11, P/N 205402,
includes:
