Installation instruction – Reznor R6GP Option - Installation - Economizer User Manual
Page 4
INSTALLATION
INSTRUCTION
INSTALLATION INSTRUCTIONS FOR
559375
ECONOMIZERS USED WITH P6/R6 072-090 UNITS

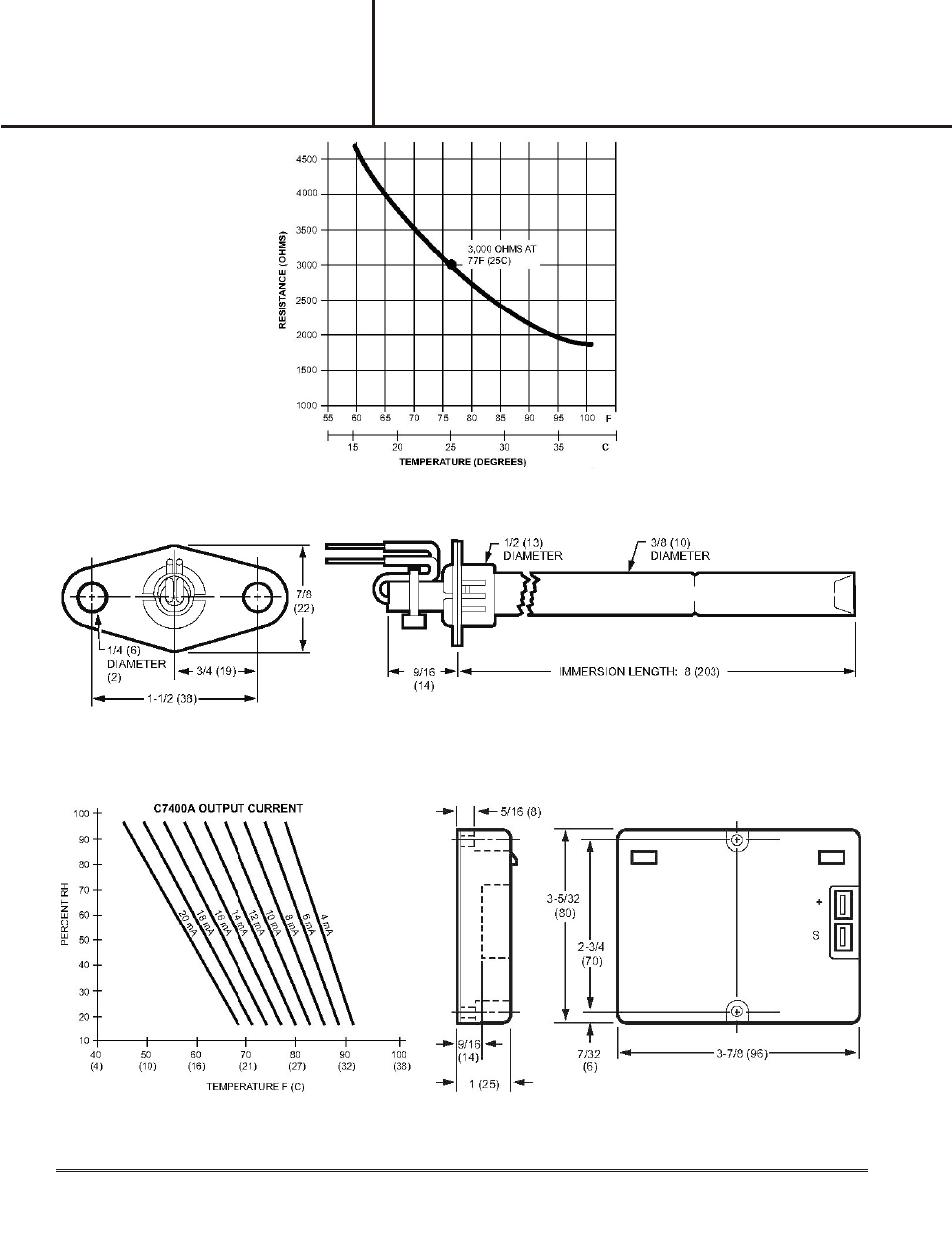

C7046C Air Temperature Sensors
resistance versus temperature.
Approximate dimensions of C7046C Air Temperature Sensor in in. (mm).
C7400A Sensor output current
vs. relative humidity
Approximate dimensions of C7400A Solid State Enthalpy Sensor
C7650A Solid State Temperature Sensor in in. (mm)
4
