Grill head assembly, Assembly guide – Char-Broil GRILL2GO 11401587 User Manual
Page 7
7

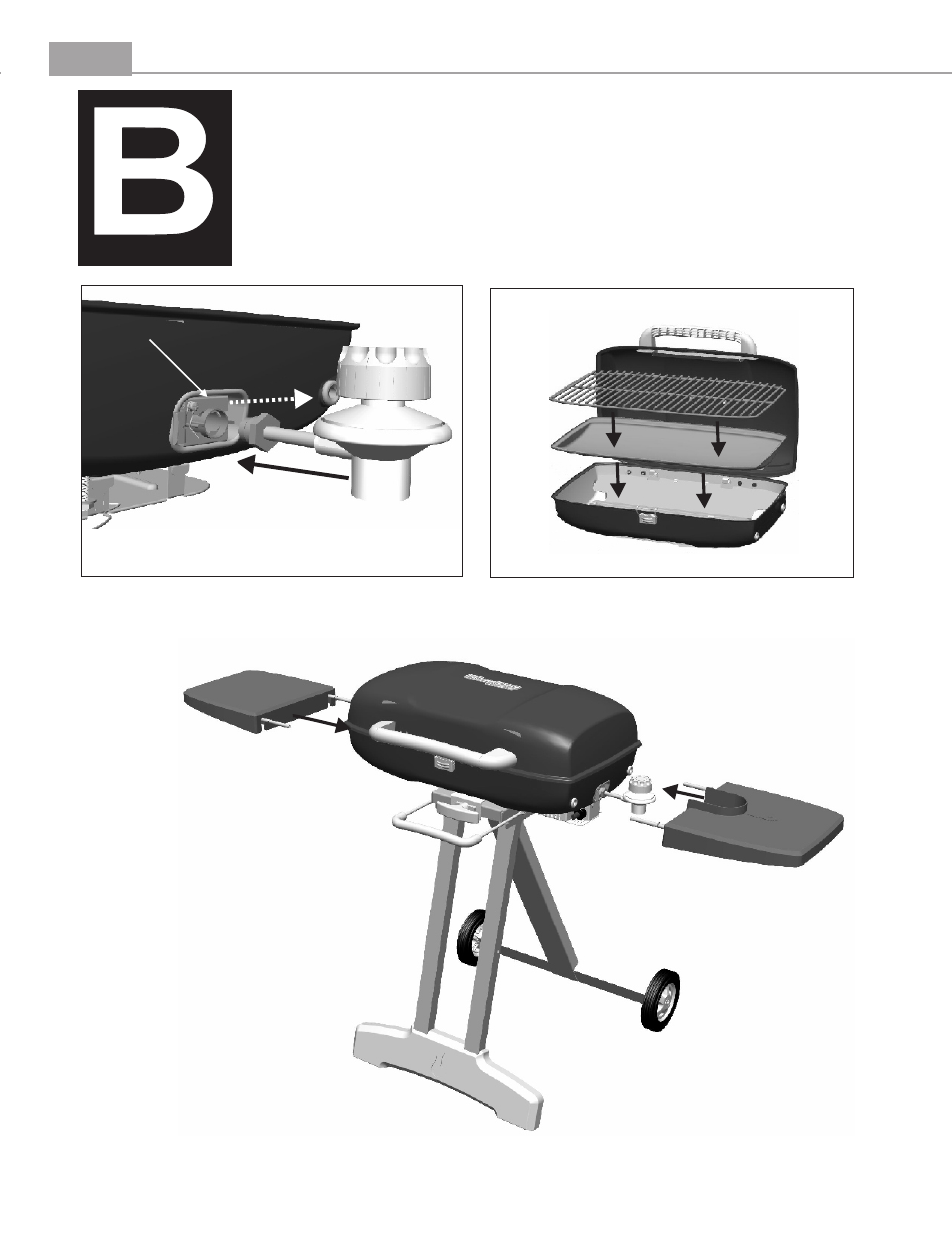

ASSEMBLY GUIDE
GRILL Head Assembly
Step 2:
rear of the grill, inserting the Regulator Control Valve fully into the exposed burner tube,
and then releasing the regulator lock.
Step 3: Place the Trough and Cooking Grate in position as shown below.
Assemble the Side Shelves by inserting the side shelf mounting rods into the side shelf busing.
Install the Regulator Control Valve by first sliding the regulator lock toward the
Regulator Lock
1. Slide to rear
Regulator
2. Insert Regulator fully
into burner tube.
3. Release lock.
Trough
Cooking Grate
