Grill head assembly, Assembly guide – Char-Broil GRILL2GO 11401587 User Manual
Page 6
6
ASSEMBLY GUIDE

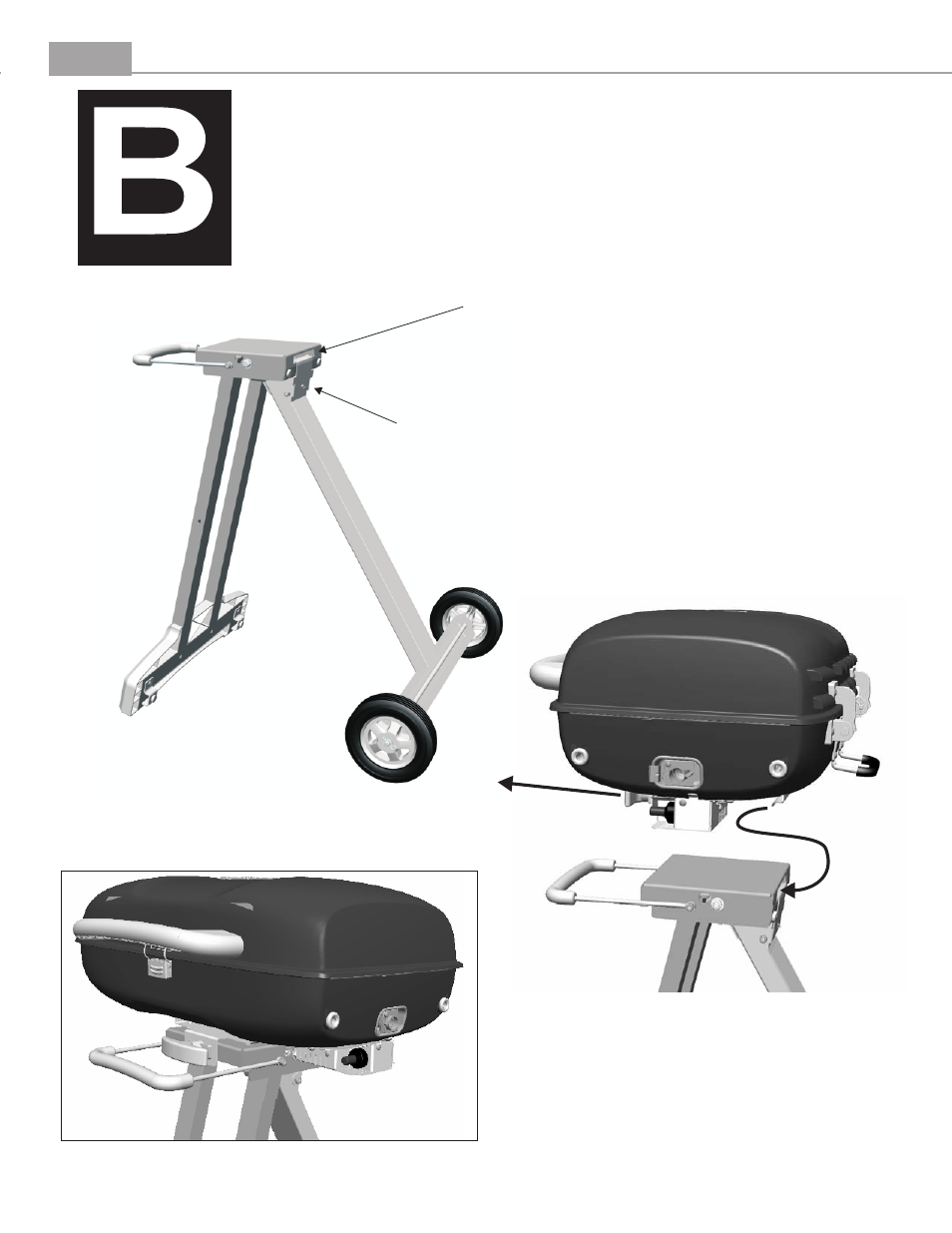

GRILL Head Assembly
Step 1: Unfold the grill stand. Ensure that the locking clip engages at the rear
of the stand.
Attach the grill head to the grill stand by inserting the tab shown into the grill
stand, then allow the grill head to rotate forward while pulling the latch
handle. Ensure that the latch handle is fully engaged by pulling up on the grill
head.
Grill Head Slot
Grill Stand Locking Clip
(Shown engaged)
Engage Grill
Head Clip into
slot
Pull Handle to
engage pin in front of
the grill stand.
Grill Head shown assembled to the grill stand.
