Grill parts diagram, Assembly guide, Bb dd – Char-Broil GRILL2GO 11401587 User Manual
Page 3: Cc ee
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular model. However, the method of assembly remains the same.
K
A
L
D
S
Q
F
J
P
N
3
ASSEMBLY GUIDE

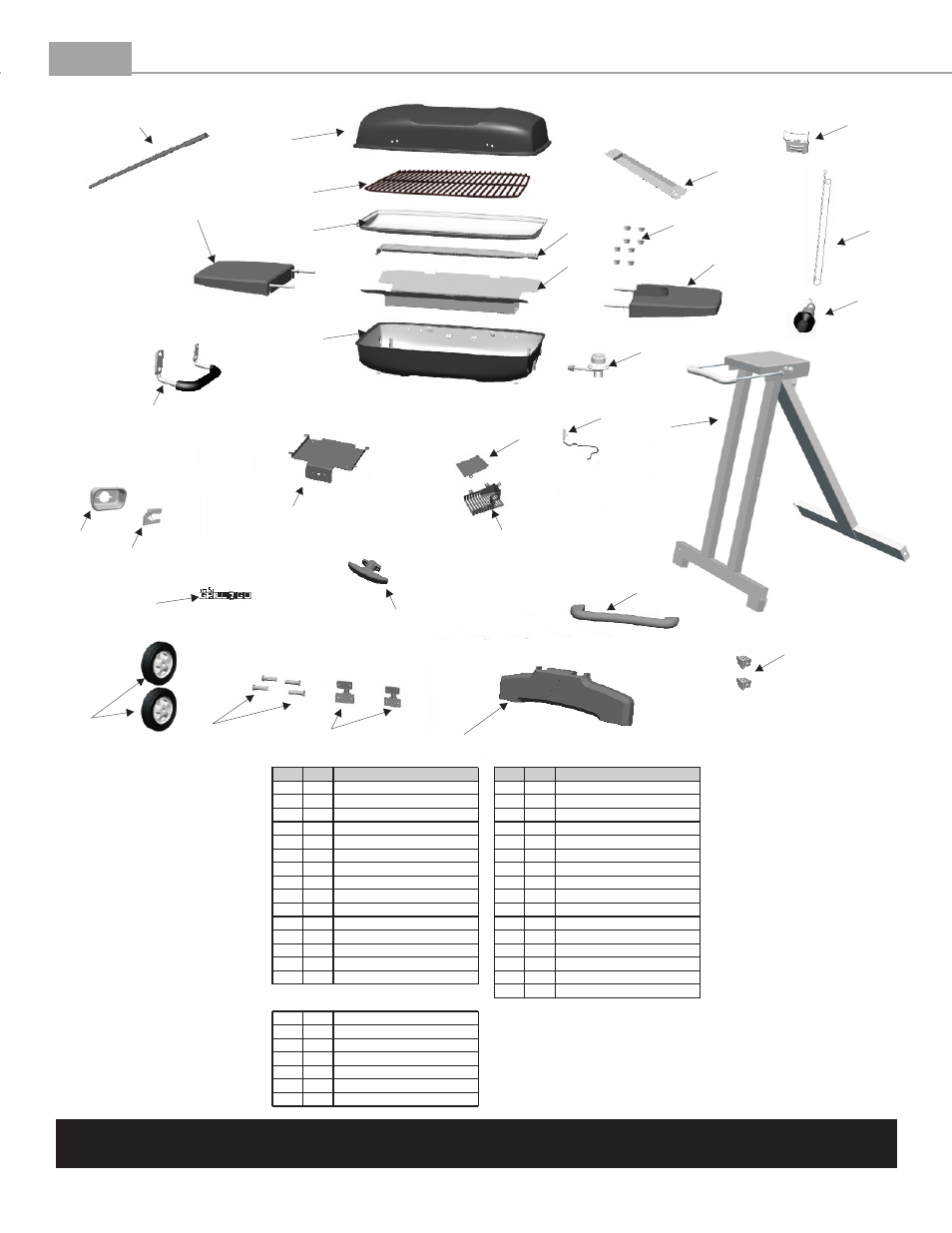

Grill Parts Diagram
M
B
C
E
I
V
R
X
Y
Z
O
AA
H
T
U
W
G
BB
DD
Key
Qty
Description
Key
Qty
Description
A
1
GRILL LID
P
1
HANDLE, F/ LID
B
1
COOKING GRATE
Q
1
LOGO PLATE
C
1
TROUGH
R
1
ELECTRODE W/ WIRE
D
1
BURNER
S
2
SIDE SHELF BUSHINGS
E
1
INNER REFLECTOR
T
1
IGNITOR MOUNTING BRACKET
F
1
FIREBOX BOTTOM
U
1
IGNITOR HEAT SHIELD
G
1
GRILL STAND
V
1
GRILL HEAD MOUNTING BRACKET
H
1
FASCIA, F/ GRILL STAND
W
1
GRILL HEAD PULL HANDLE
I
1
MATCH HOLDER
X
1
HEAT SHIELD, F/ LID HANDLE
J
1
LEFT SIDE SHELF
Y
1
LID CLASP
K
1
RIGHT SIDE SHELF
Z
1
VENTURI GUARD
L
1
REGULATOR CONTROL VALVE
AA
1
PIEZO IGNITOR
M
2
WHEEL
BB
1
REAR HANDLE, F/ FIREBOX
N
1
HINGE SET
CC
2
LEG END CAP
O
1
VENTURI LATCH ASSEMBLY
DD
8
RUBBER BUMPER
EE
1
AXLE, F/ WHEEL
NOT Pictured
…
1
HARDWARE PACK
…
1
ASSEMBLY MANUAL, ENGLISH
…
1
ASSEMBLY MANUAL, SPANISH
…
1
ASSEMBLY MANUAL, FRENCH
…
1
PRODUCT GUIDE, ENGLISH
…
1
PRODUCT GUIDE, SPANISH
…
1
PRODUCT GUIDE, FRENCH
CC
EE
