4

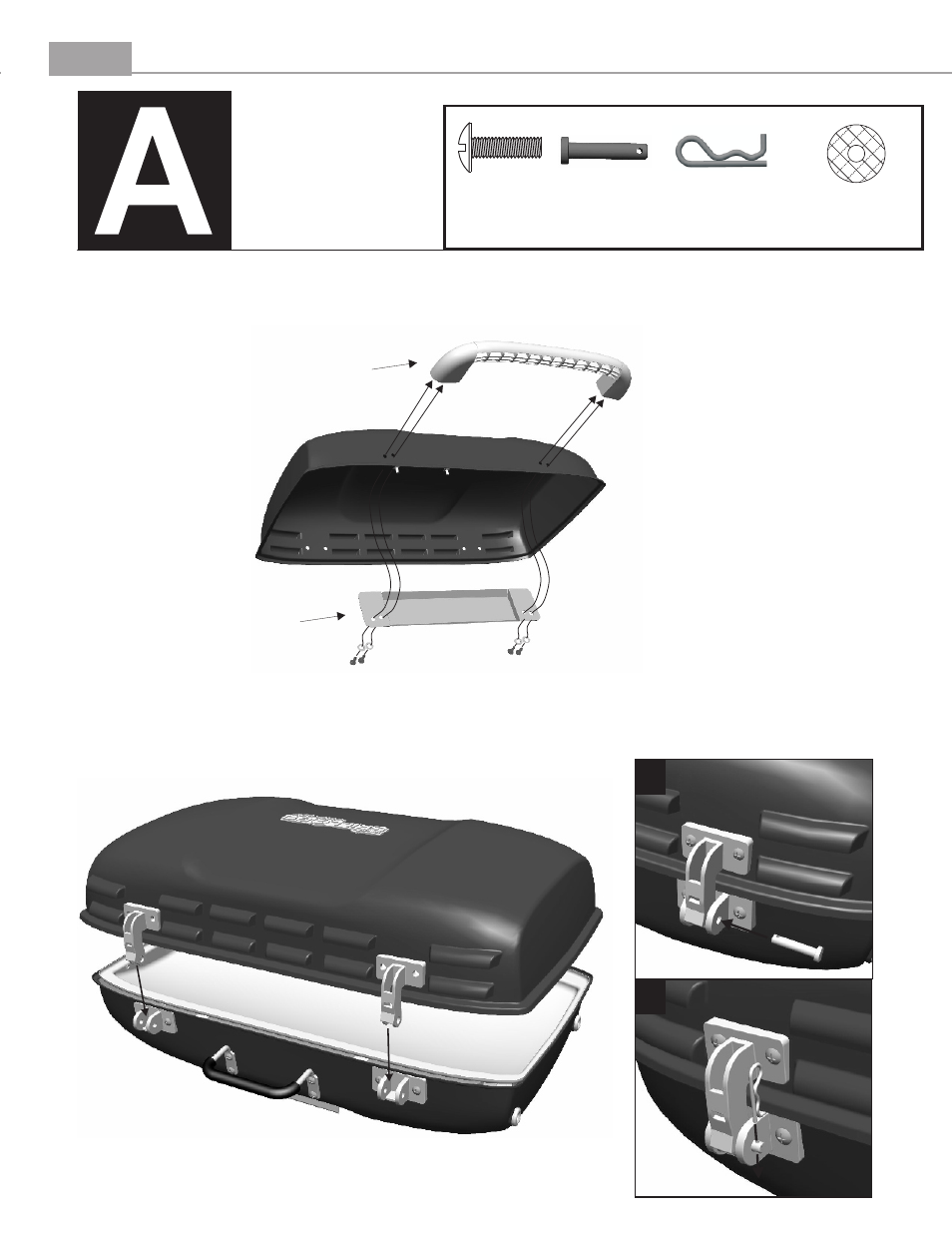

ASSEMBLY GUIDE
Part Qty
A1 – Handle 1
A2
Fasteners
(Qty. 4)
GRILL Assembly
#8 Fiber Washer
– Heat Sheld 1
Step 1: Choose a location suitable for assembling your grill. Carefully cut the carton open and use it as a
pad to prevent scratching or damaging your grill. Next, verify that you have all of your parts.
Assemble the Handle and Heat Shield as shown using 4 #8 Fiber Washers and 4 #10-24x5/8" Screws.
Securely tighten the screws.
Step 2: Install the Grill Lid to the Firebox Bottom by aligning the hinges as shown below. with the hinges
aligned and the grill lid resting on top of the fire box, install the hinge pins through the holes in the
hinges, shown (A) Then insert a hitch pin into each of the hinge pins to hold them in place, shown (B)
A1
A2
Handle
Heat Shield
#10x24x5/8”
Machine Screw
(Qty. 4)
(Qty. 2)
Hinge Pin
A
B
Insert Hitch Pins
Grill Lid
Fire Box
(Qty. 2)
Hitch Pin
