INSTALLATION INSTRUCTIONS FOR
555641
HAIL GUARD USED WITH R4G* 150/180 UNITS

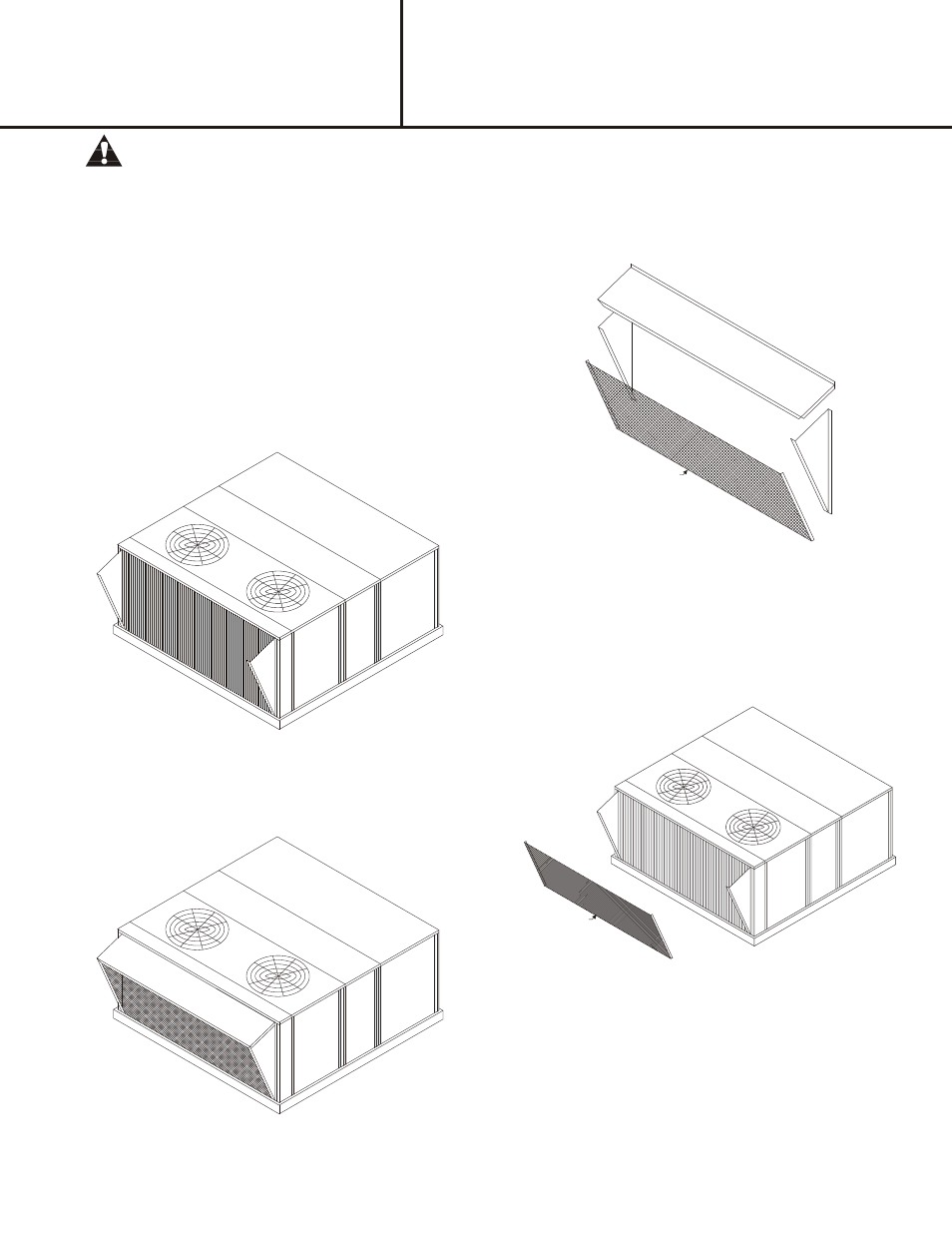

Fig ure 1
(B)
MAY 12, 2005 NEIHG10
Fig ure 3
Fig ure 2
(B)
Fig ure 4
Step 1:
Check for correct number of parts. See list below.
1 - Rear Hail Guard (A)
1 - Rear Top Panel (B)
2 - Vertical Side Panel (C)
1 - Hardware Package
8 - #10- 16 x ½ Screw
1 - Installation Instruction
Step 2:
Take (C) vertical side panel and align inside of side
panels with outside edge of coil. Then secure with the
screws provided.
Step 3:
Then secure (A) hail guard in between clips on vertical
side panel and close clips to hold in position.
Step 4:
Now secure the (B) rear top panel flange under top of
unit and flange over side panels. Then secure with
screws provided.
(C)
(C)
(C)
(C)
(A)
(A)
IN STAL LA TION
IN STRUC TION
935B-0505
NOTICE TO INSTALLER
WARNING!
Refrigerant tubing located behind panels this Accessory is mounted. Special attention must be given if
pre-drilling of holes or using screws other than those provided are used. Failure to follow these
instructions could result in serious injury or property damage and may void Warranty.
The Hail Guard is designed to prevent damage to the condensor coil of the unit. The following list of parts are required:
