INSTALLATION
INSTRUCTIONS
NEIHG06

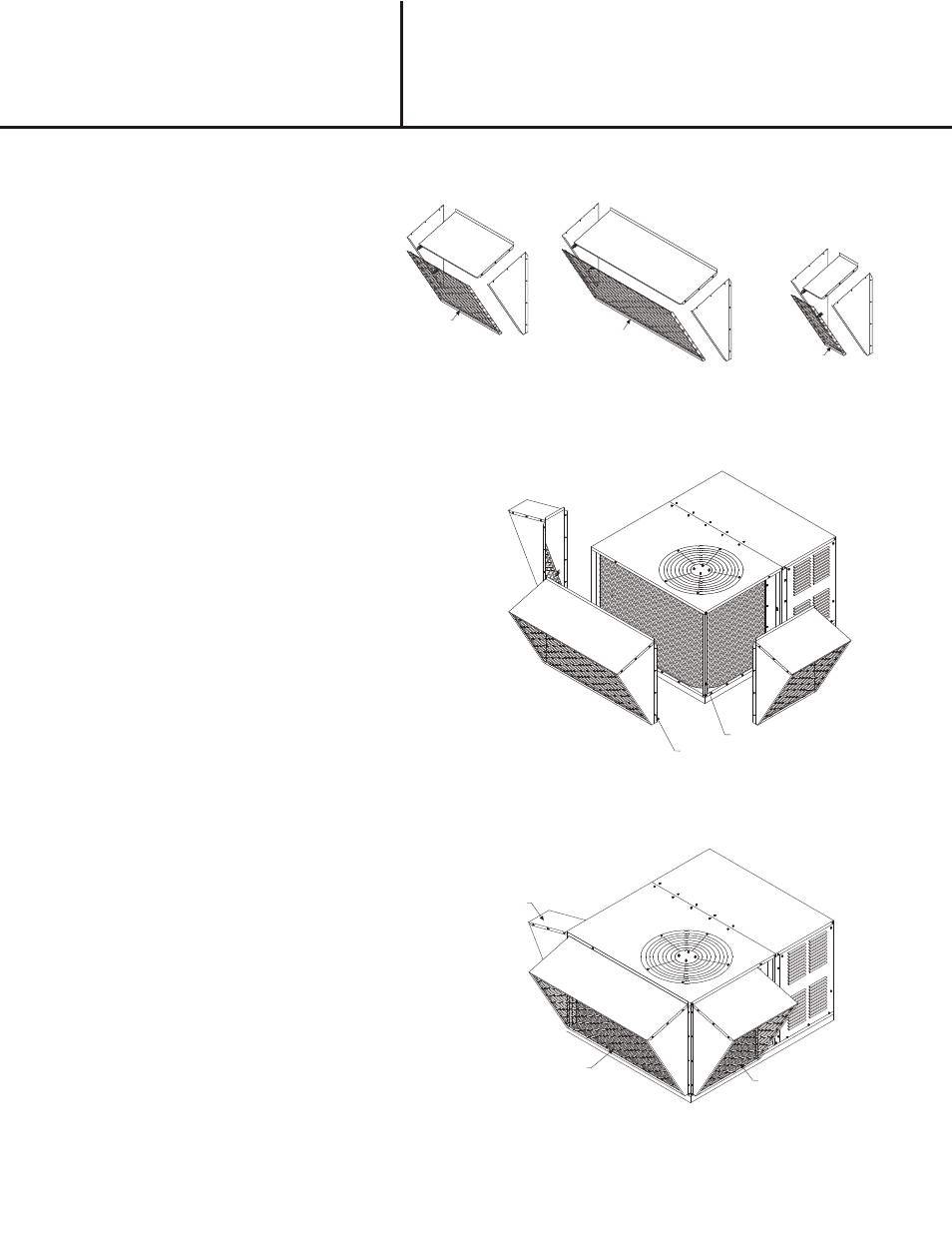

Fig ure 4
Fig ure 6
Fig ure 5
Step 1:
Check for correct number of parts. See
list below.
1 - Rear Hail Guard (A)
2 - Side Hail Guard (B & C)
1 - Rear Top Panel (D)
2 - Side Top Panel (E & F)
6 - Vertical Side Panel (G)
1 - Hardware Package
44 - #10- 16 x ½ Screw
1 - Installation Instruction
Step 2:
Take (G) vertical side panels and
assembly to their respective top panel
(D), (E) and (F)
Step 3:
Secure (A), (B) and (C) hail guards in
between clips on the vertical side panels
and close clips to hold guard in position.
Step 4:
Slip top flange of the assembled kit under
the top pan of the unit and fasten to unit.
Use the existing screws on the unit and
self-drilling screws to attach to the corner
posts.
D
E
F
G
G
G
FLANGE
CORNER POST
REAR HAIL GUARD
SIDE HAIL GUARD
SIDE HAIL GUARD
The Hail Guard is designed to prevent damage to the condensor coil of the unit. The following list of parts are required:
B
A
C
FORM# 601A-0808 (601A-0298)
INSTALLATION INSTRUCTIONS FOR
547846 / 547847
HAIL GUARD USED WITH R4GM 072
P6SD, Q6SD, R6GD 024-060 UNITS
SUPERSEDES 10-26-04
SEPTEMBER 2, 2008
