INSTALLATION INSTRUCTIONS FOR
559543
HORIZONTAL ROOF CURB WITH DUCT
USED WITH R6GN 150/180 UNITS
INSTALLATION
INSTRUCTIONS
Step 8:

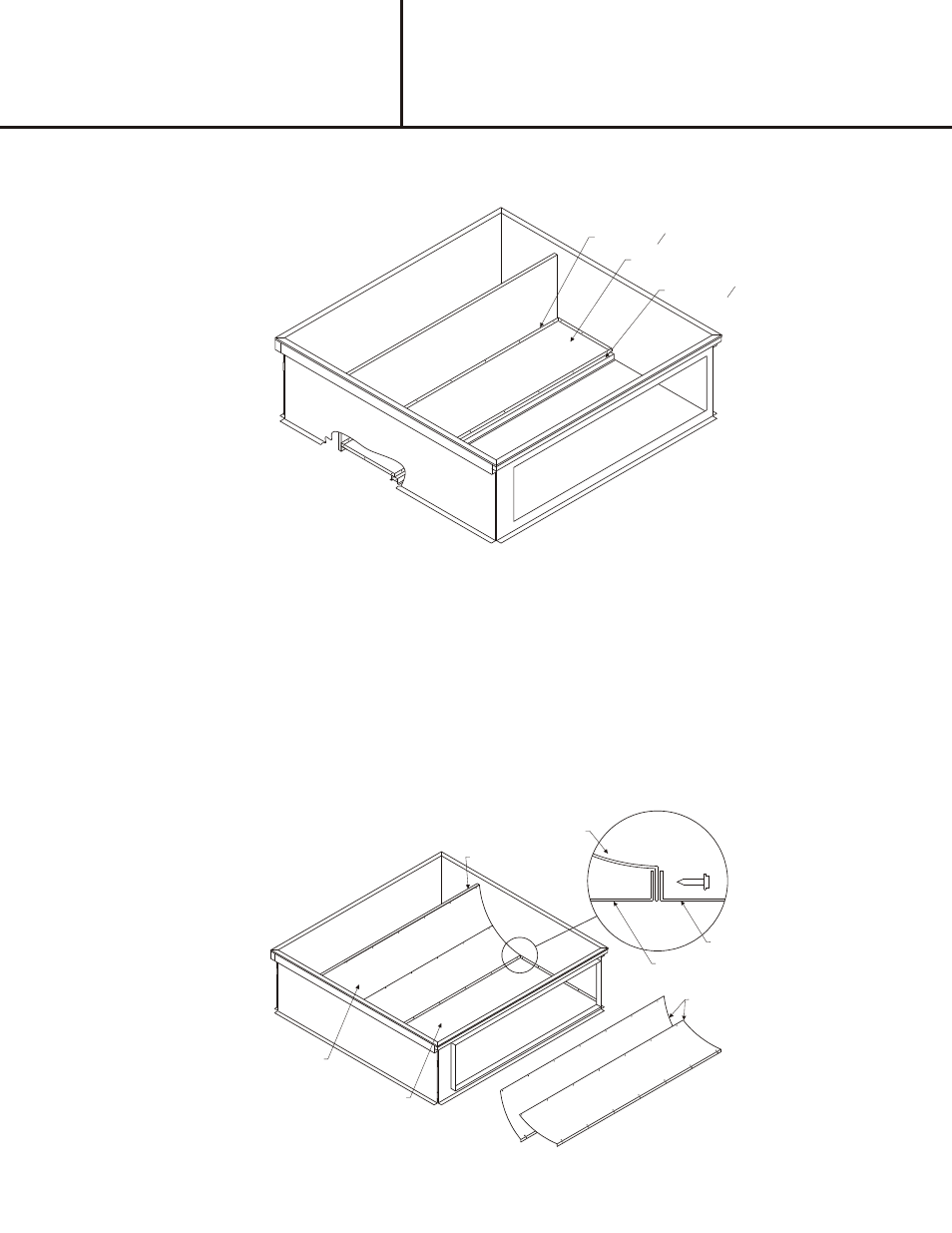

Screw deflectors (F and G) together as shown in Figure 7.
Step 9:
Place deflector assembly (F and G) into curb and screw to divider panel (J).
Step 10:
Install duct panel (H) #2 into curb making sure the deflector (G) is between duct panel (H) #1 and #2 as shown in Detail "C".
Step 11:
Then secure all 4 sides of duct panel (H) #2.
DEFLECTOR
Detail "C"
DUCT PANEL (H) #2
Fig ure 7
POSITION 3
16
" HOLES HERE
POSITION 1
8
" HOLES HERE
Step 7:
Install duct panel (H) #1 with holes located as shown in Figure 6. Secure duct panel (H) #1 to divider panel (J) and curb
sides (A).
Fig ure 6
DUCT PANEL (H) #1
DUCT PANEL (H) #1
(ALREADY INSTALLED)
DEFLECTORS (F AND G)
DUCT PANEL (H) #2
DEFLECTOR (F)
DIVIDER PANEL (J)
