Reznor VC Series Option - Installation - Wind and Rain Hood Attachment - Manual (Page 3)

3

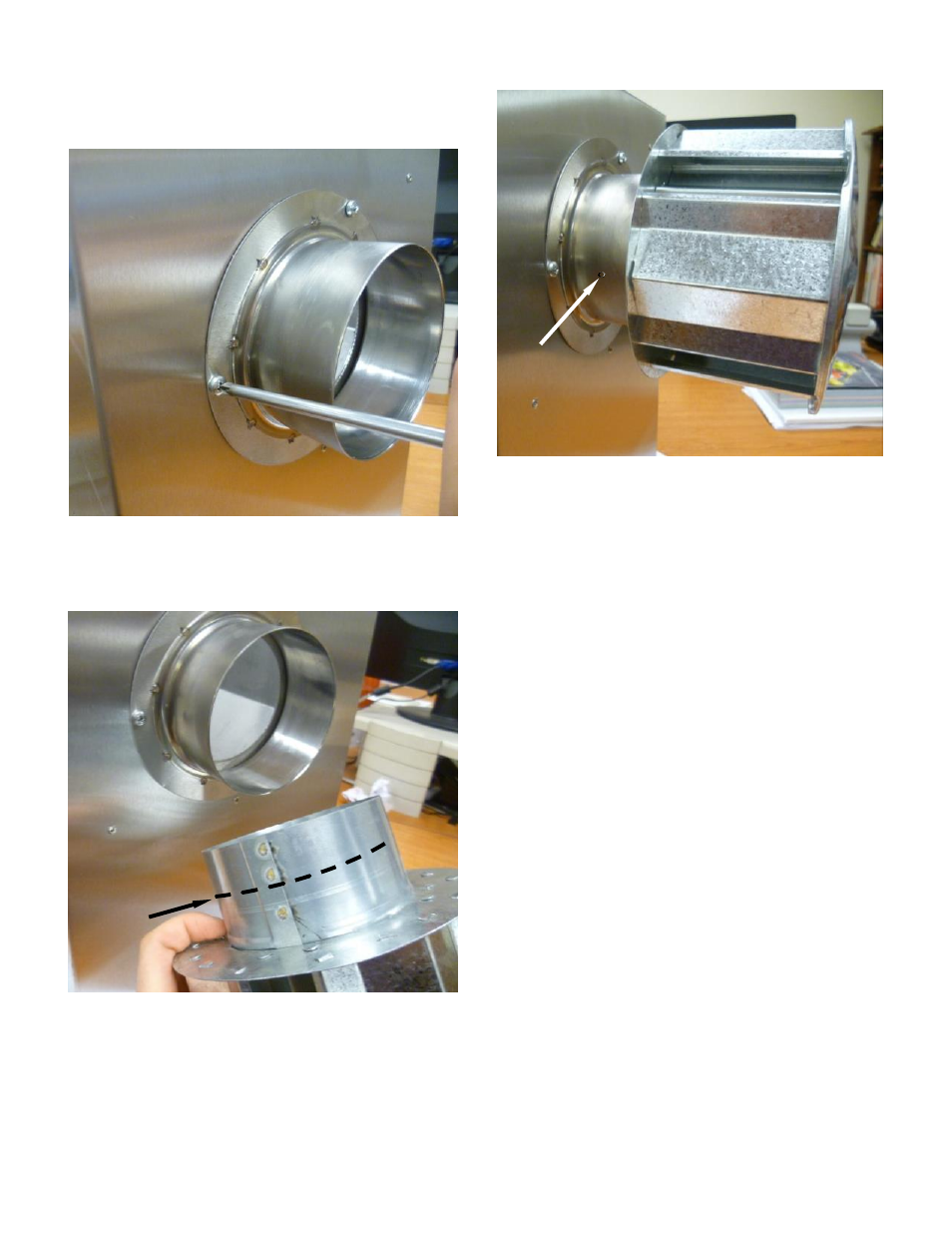

Step 5: Push the wind and rain hood cover fully home,
then using a 3mm bit, drill 2 pilot holes either side of
the spigot in the horizontal plane.
Step 6: Secure with the self-tapping screws supplied.
The conversion is now complete.

Step 3: Attach the wind and rain hood spigot to the
burner using the same three screws that were removed
in Step 1.
Step 4: Apply waterproof sealant to the mating surface
along the line as shown in the picture below. Insert the
wind and rain hood cover into the spigot.
