Form RZ-N/A-I-F/B-DN, Page 4

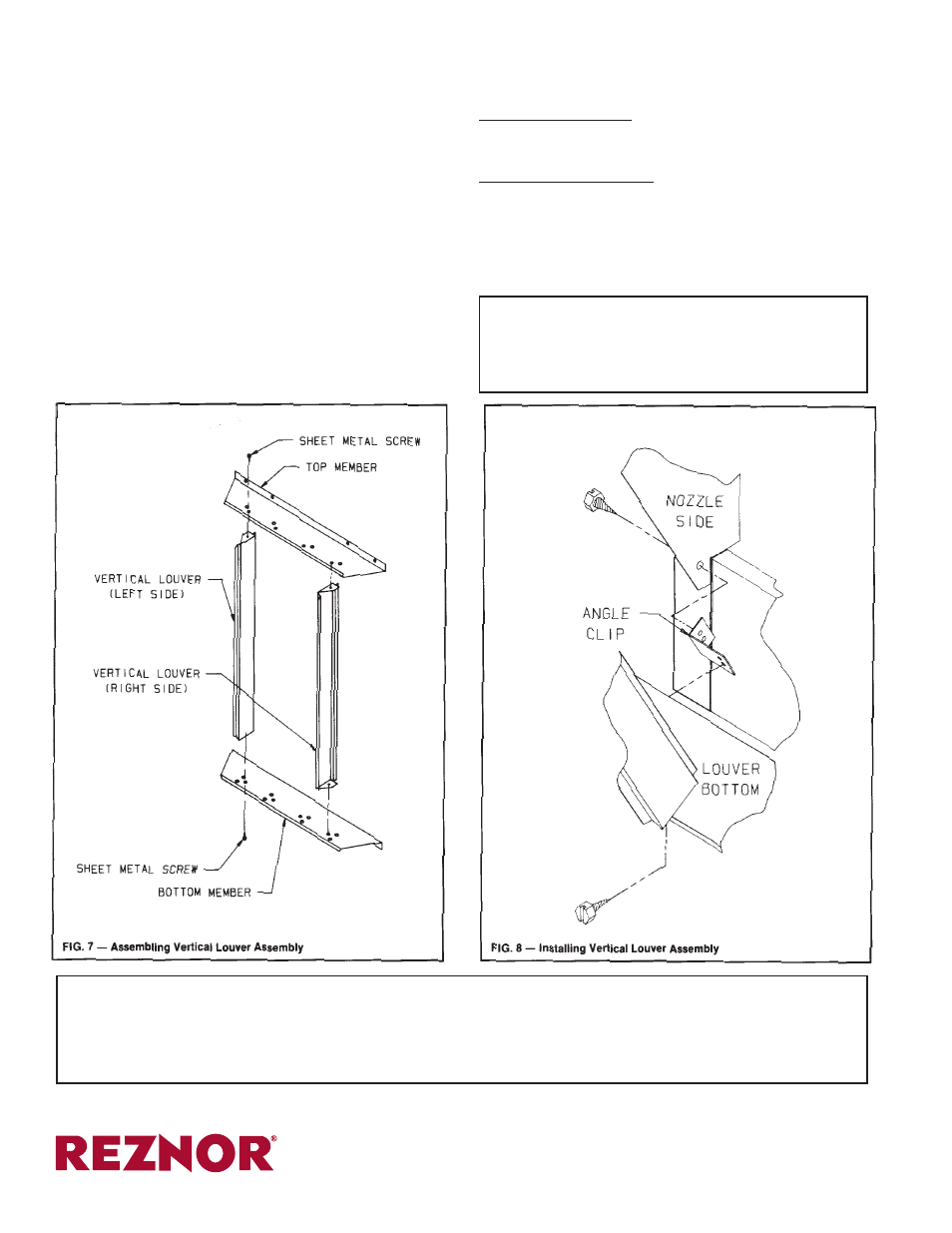

SECTION B (See Figures 7 and 8)

Additional Instructions for Installing Vertical Louvers
in Option CD4 and Option CD5
Follow the instructions that apply to your application for install-

ing the downturn nozzle. If the heater is installed, do not re-light

until the vertical louvers have been added.
1. Assemble the Louvers -- Assemble vertical louvers to the

top and bottom members using the sheetmetal screws provided.

(See Figure 7.)

a. Vertical louver edges should extend beyond the front outer

end of the louver top and bottom members.

b. Stops are designed so that the right half of the louvers turn

right and the left half of the louvers turn left.

2. Attach the Vertical Louver Assembly -- Screw the top of

the vertical louver assembly to the top of the downturn nozzle.
3. Install Angle Clips (See Figure 8) -- Attach the angle clip to

the nozzle sides and to the louver assembly bottom.

4. Installation is complete.
If the heater is installed, be sure that it is level. Turn on the

electrical power and the gas. Light the heater, following the light-

ing instructions.
If the heater is not installed and the wooden crate bottom has

been removed, the bottom of the heater must be supported with

plywood or appropriately placed boards when it is raised for

suspension. If the bottom is not protected, the bottom access

panel could be damaged. Install the heater in accordance with

the instructions provided in the heater installation manual.

IMPORTANT: Do not install vertical louvers in combination with a downturn nozzle

with a 50°-90° variable air deflection range (Option CD3) on a Model F or FE. That

combination which is the same as Option CD5 is permissible only on blower units,

Models B and BE.

CAUTION: To avoid getting burned, adjust the

louvers while the heater is not in operation. If

adjustment is required after the heater is in

operation, wear protective gloves.
