Left
Inner
Side
Panel
Switch
Inner
Nut
Place chain through
hole first.
1/2”diameter hole
Outer
Knurled
Nut
Figure 1
Figure 2

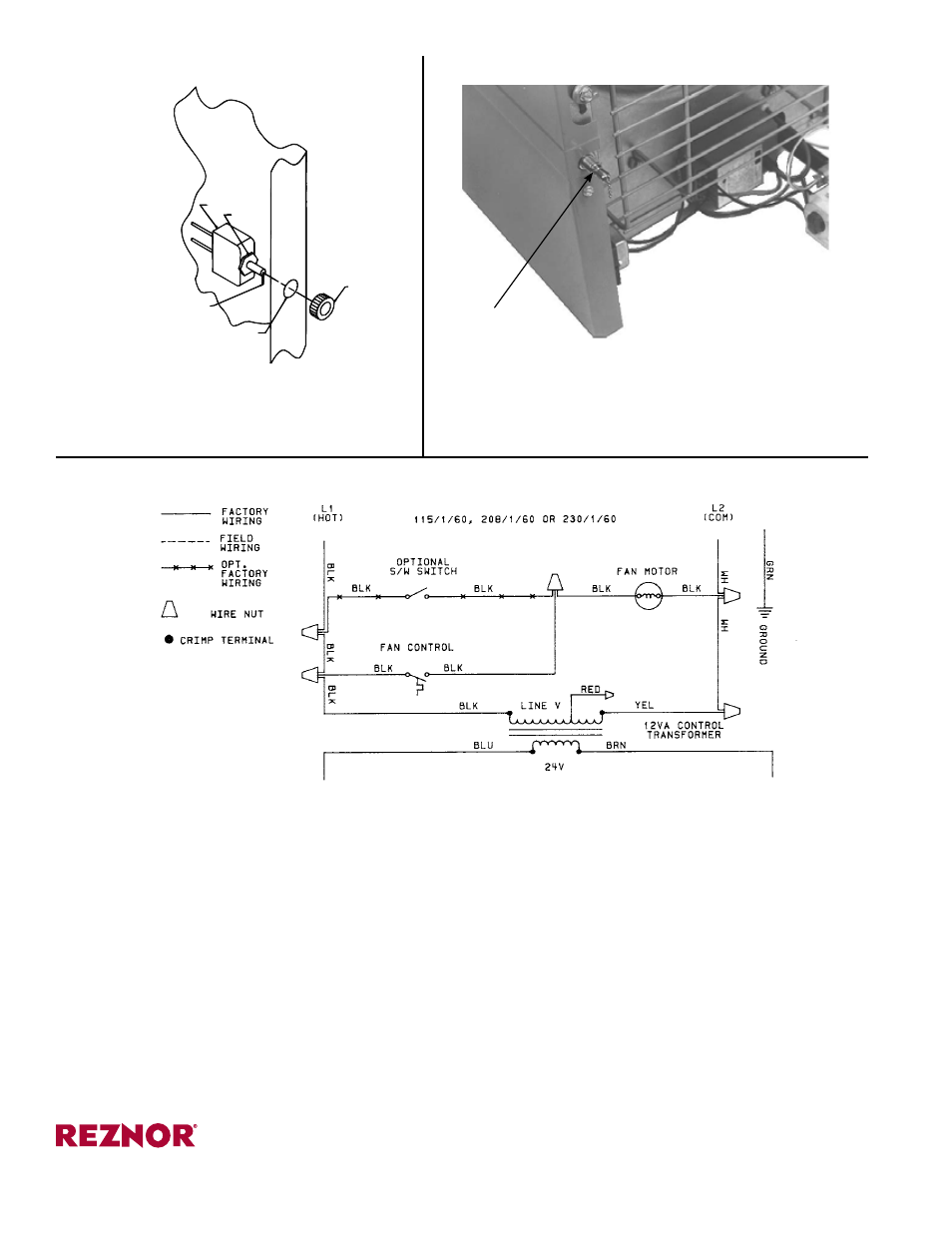

Wiring Diagram - Option CH1, Manual Summer/
Winter Switch on Fan-Type Unit Heater
