MODEL 2000010194

STITCH

LINE

tEnt sEtup instructiOns

Before you begin

• Read all instructions before set up.

• Select a level site clear of rocks, branches, and other hard or

sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees because of potential lightning

strikes or falling tree limbs in inclement weather.

• Secure with

all stakes and guylines provided to prevent property

damage or personal injury.

• For best results in windy conditions, position narrow end of tent

into the wind.

• Do not drop tent.

• Do not bounce tent bag on its end to remove tent, as these

actions may damage the frame.

• THIS RECREATIONAL PRODUCT REQUIRES A MINIMUM OF TWO

PEOPLE TO ASSEMBLE.

• Under no circumstances should this product be used to cover

automobiles, marine products or similar items.

CAUTION: Avoid pinch points when opening and closing the
tent frame.

(continued on other side)

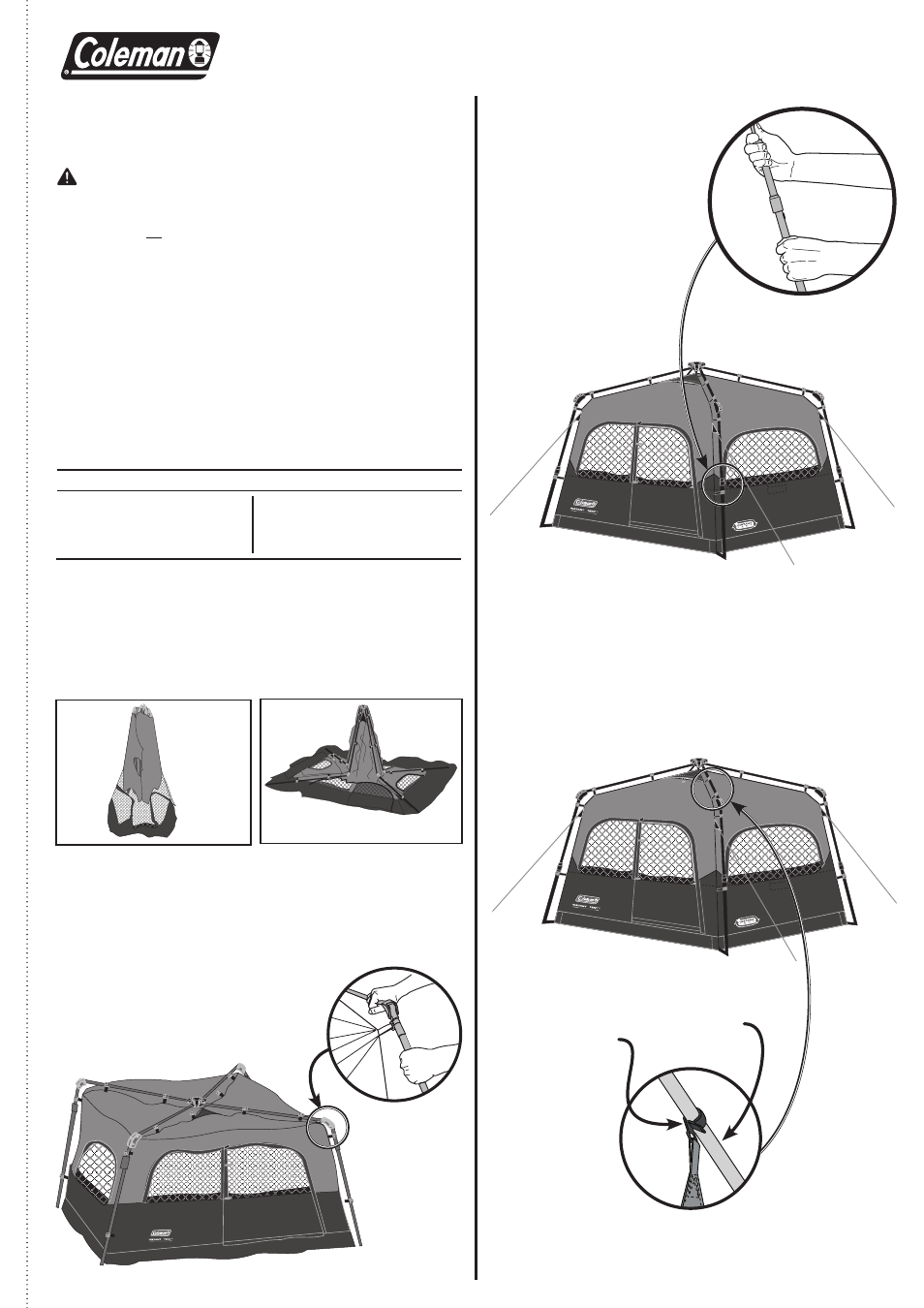

Extend the Tent Frame

Raise the Tent

• Stand the tent upright with the hub assembly at the

top. (Fig. 1)

• Unfold the arms of the tent downward until they lay flat on

the ground. (Fig. 2)

1

2

3

Verify Connections

between Tent and

Frame Poles

• Verify the clips along the edges of the tent are properly

attached to the frame poles. (Fig. 7 and 8)

• Unfold the arm joints located at each of the tent corners.

The tent will raise as the leg poles are extended.

(Fig. 3 and 4)

• Extend each of the telescoping leg poles until they snap

into place. (Fig. 5 and 6)

Clip

Pole

Description

Description

repair Kit

repair Kit

Plastic Clip 16 mm
Plastic Clip 20 mm
Fabric Repair Kit

Plastic Corner Joint
Fabric Joint Cover

5010000845
5010000846
5010000852

5010000851
5010000856
