VPS Model

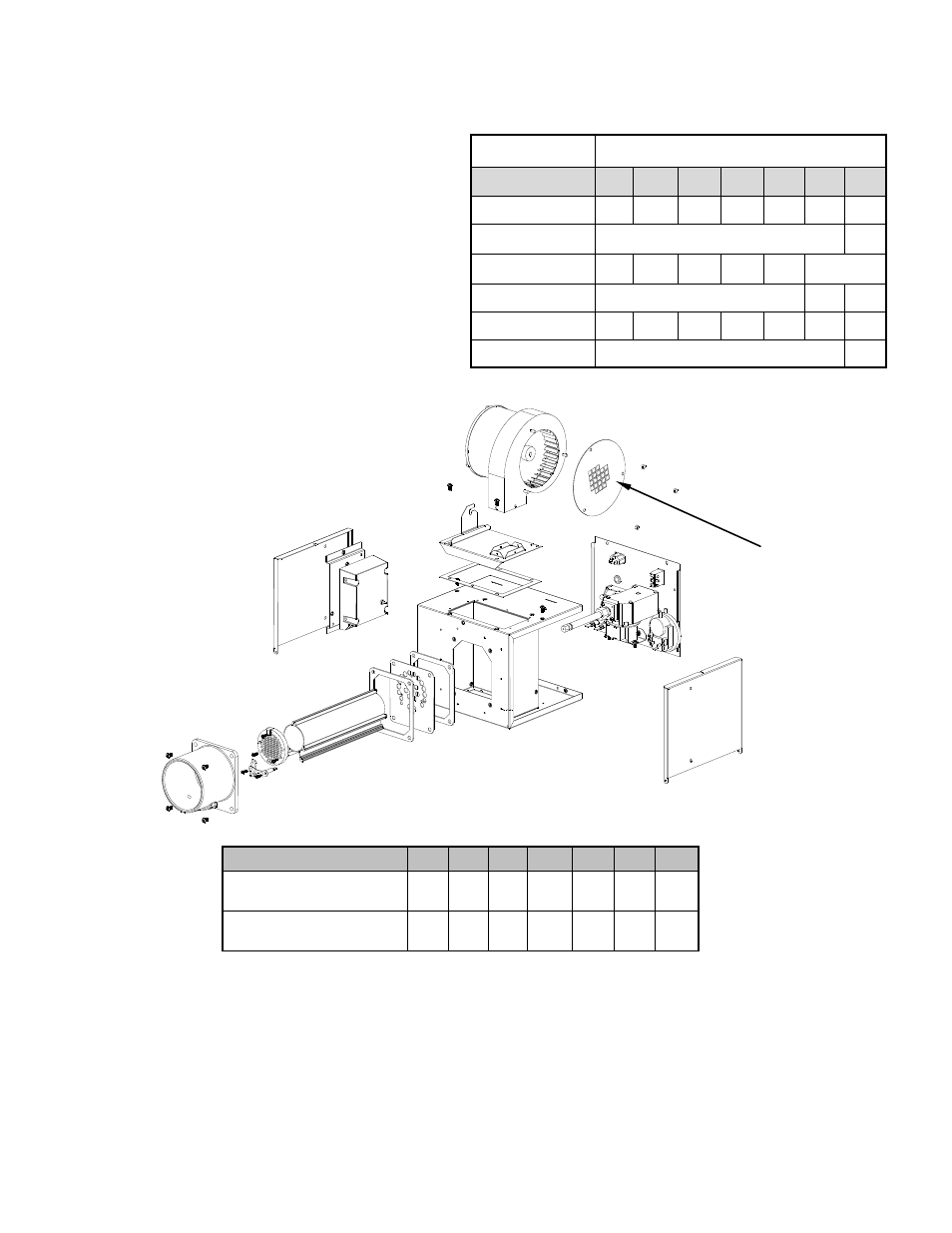

Fan orifice
plate
There are two types of combustion fan, one with three orifice plate fixings and one with
four orifice plate fixings. Follow the relevant procedure for the type of fan fitted to the
appliance being converted.
Section 1 …………VPS Three Fixing Fan.
Section 2 ……… VPS Four Fixing Fan.
Section 3 ……… VPT, VCS/T Three Fixing Fan.
Section 4 …………VPT, VCS/T Four Fixing Fan.
Size
60
80 100 125 150 170 200
Remove plate with ‘X’
Qty. of holes (10mm)
8
7
8
11
11
15
18
Add plate with ‘X’ Qty. of
holes (10mm)
9
9
10
14
15
26
22
Fresh Air Inlet Plate Type
Size
60
80
100 125 150 170 200
VPS 3 Hole
*
*
*
*
*
*
VPS 4 Hole
*
VPT/VCT 3 hole
*
*
*
*
*
VPT/VCT 4 hole
*
*
VCS 3 hole
*
*
*
*
*
*
VCS 4 hole
*
