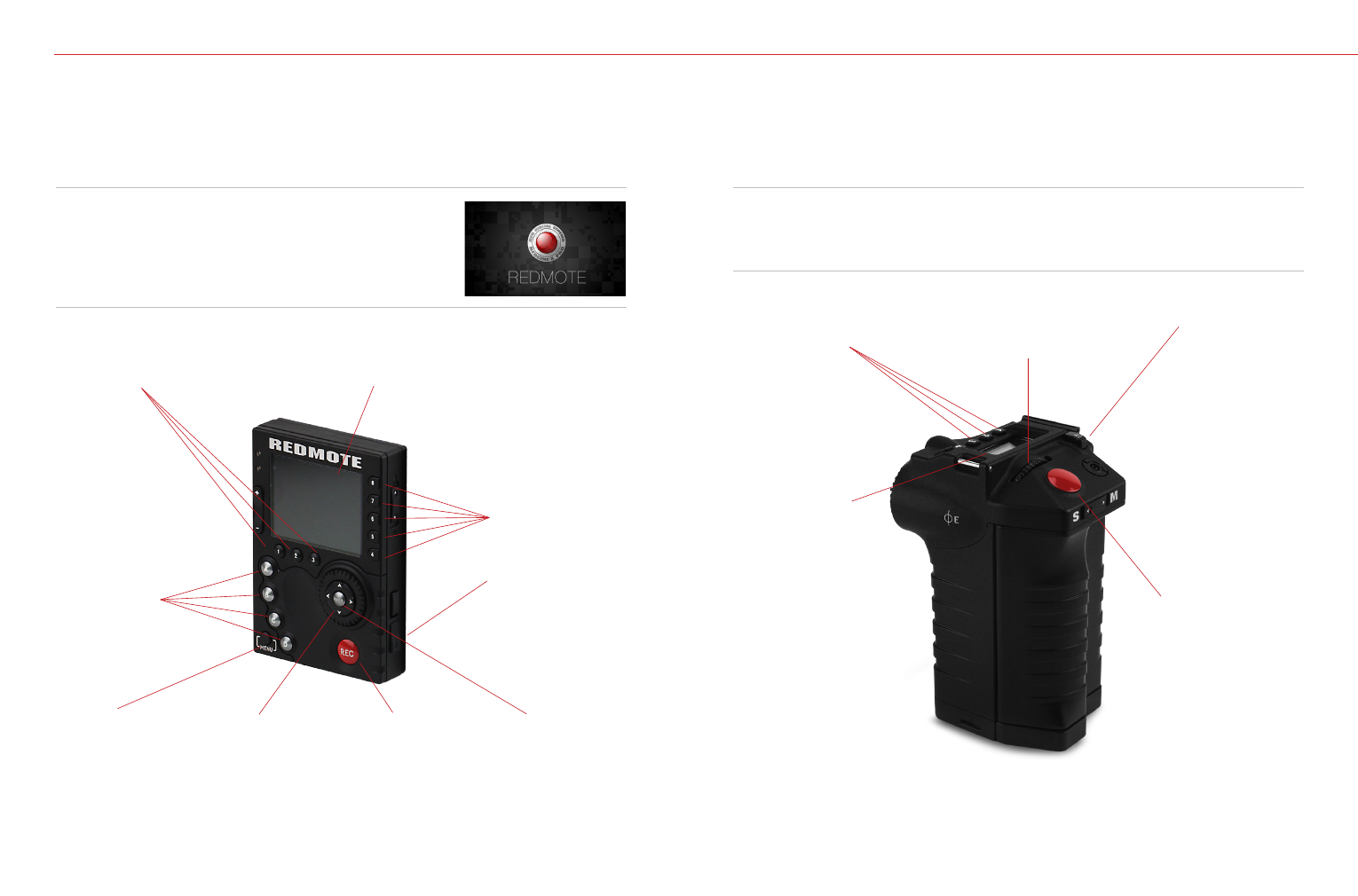

RED MOTE
®
(1-3)
CUSTOMIZABLE
MENU KEYS
ENTER KEY
Selection key
MENU KEY
Easy access Menu button
USB
Use to charge from a 3rd
party USB power source
(A – D)
CUSTOMIZABLE
USER KEYS
DIRECTION KEY
Navigate camera menus and
select parameters for
Adjustment
RECORD BUTTON
Enables AUTO FOCUS
mode and START/STOP
recording
(4 – 8)
SOFT MENU KEYS
LED DISPLAY SCREEN
Use to navigate camera
menus and settings
REMOTELY CONTROL CAMERA SETTINGS, MENU OPTIONS, AND START/STOP RECORDING OF YOUR DSMC BRAIN.
GREAT FOR:
Users seeking the freedom of controlling their DSMC brain wirelessly on
a crane, jib, or utilizing REDMOTE as a start/stop trigger.
NOTES:
Approx. 8hrs of battery life. Approx. 50’ of wireless control.
To watch the REDMOTE product demo, please visit www.red.com/learn/product-demos
DSMC SIDE HANDLE
LED DISPLAY
Monitor camera settings.
EASY ACCESS RECORD
BUTTON
NAVIGATION WHEEL
Provides complete control
over camera menus and
settings
DISPLAY BACKLIGHT
THE DSMC SIDE HANDLE ALLOWS FOR HAND-HELD, LIGHTWEIGHT SHOOTING, AND COMPLETE CAMERA CONTROL.
GREAT FOR:
Users looking for a refined grip for compact, hand-held support Ideal for photographers and lightweight shooters.
NOTE:
Power camera with 1x REDVOLT
® .
CUSTOMIZABLE BUTTONS
For quick access to desired
in-camera tools
