GREAT FOR:
Anyone looking for a basic way to utilize RED shoulder rigs and Quick
Release system.

GREAT FOR:
Users looking to utilize RED’s Quick Release system with the option of
adding 15mm lightweight accessories such as a follow focus or
matte box.

GREAT FOR:
Users looking for the freedom to swiftly move from one setup to
the next.

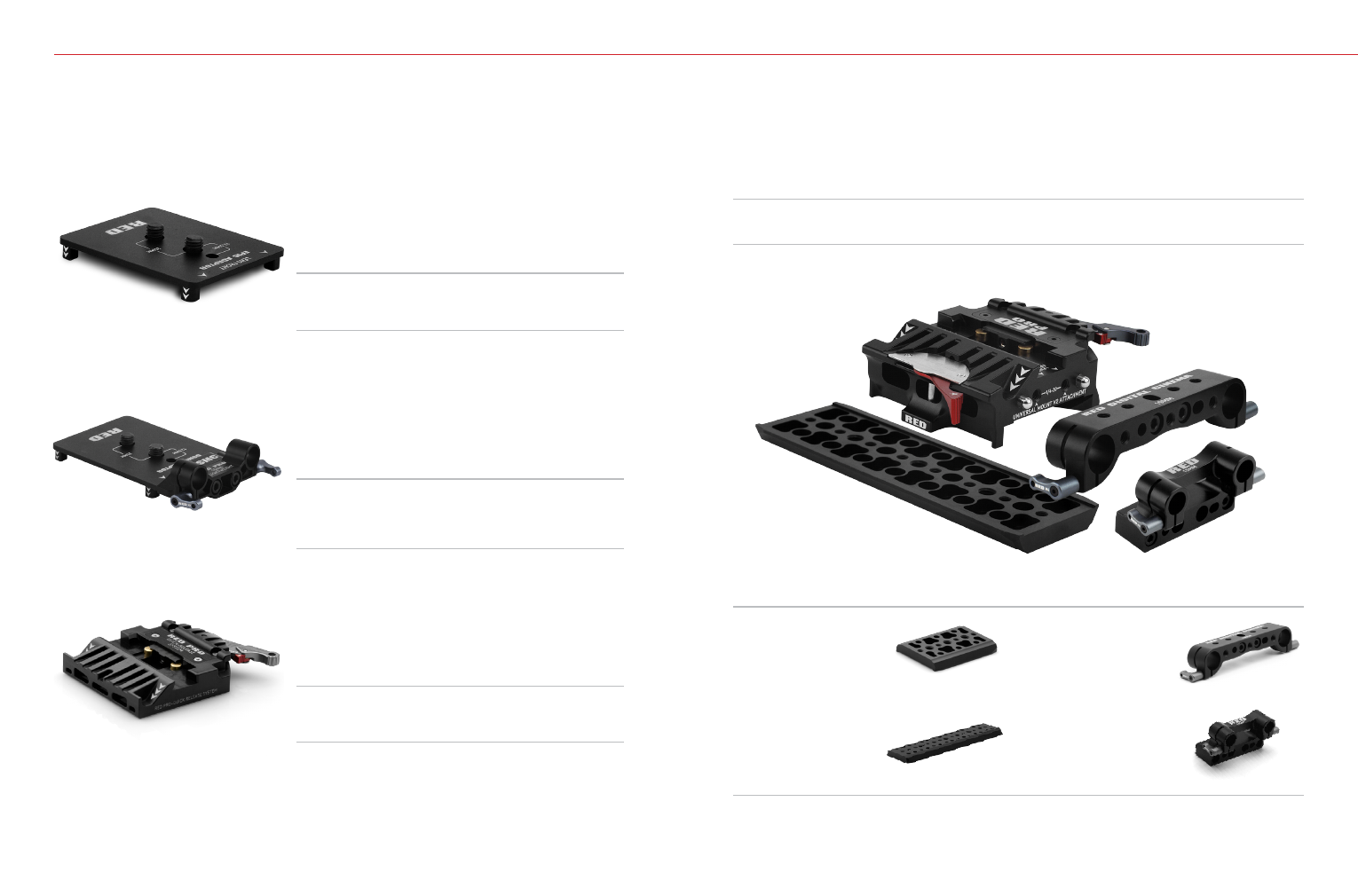

MOUNTING PLATE

(DSMC)

MODULAR

ASSAULT PLATE PACK

QUICK RELEASE PLATFORM

(BOLT-ON)

THE MOUNTING PLATE (DSMC) ATTACHES TO THE BOTTOM OF YOUR
EPIC OR SCARLET

®

BRAIN

®

, ALLOWING YOU TO SNAP IN AND OUT OF

DSMC PLATFORMS OR SHOULDER RIGS IN SECONDS.

IN ADDITION TO QUICK RELEASE COMPATIBILITY, THE MODULAR
ASSAULT PLATE PACK FEATURES A LIGHTWEIGHT, REMOVABLE 15MM
ADAPTOR FOR THE USE OF 3RD PARTY ACCESSORIES AND
MATTE BOXES.

QUICK RELEASE PLATFORM (BOLT-ON ATTACHES DIRECTLY ONTO A
TRIPOD HEAD, ALLOWING YOUR CAMERA TO EASILY SNAP IN AND OUT
OF CONFIGURATIONS.

DSMC

®

MOUNTING PLATES

GREAT FOR:
Users looking to attach rail accessories with the ability of properly balancing their camera or rig on a tripod.

QUICK RELEASE PLATFORM

(DOVETAIL)

THE QUICK RELEASE PLATFORM (DOVETAIL) ALLOWS YOU TO MOUNT 19MM OR 15MM RAILS, WHILE LETTING YOU SWIFTLY
MOVE BETWEEN RIGS WITH THE ABILITY TO SLIDE RIGHT OFF OF YOUR DOVETAIL PLATE.

SHORT DOVETAIL

Primarily used with The
Clutch

®

shoulder rig system.

15MM CENTERED MOUNT

Adaptor which allows for
15mm lightweight acces-
sories such as follow focus
and matte box.

LONG DOVETAIL

Allows you to slide your
configuration forward or
backward, making it simple
and efficient to balance
camera.

UNIVERSAL MOUNT

Allows the shooter to add
rails to their configuration.
Available in 19mm and
15mm.
