ONE CAMERA.
ANY MODULE.
EVERY JOB.
DSMC ® MODULES ATTACH TO YOUR EPIC OR SCARLET ® BRAIN ®
TO ENABLE DIFFERENT FEATURES, ALLOWING YOU TO HAVE THE
PERFECT CONFIGURATION FOR EVERY SHOOT
For more information, please visit
www.red.com/store/dsmc-modules

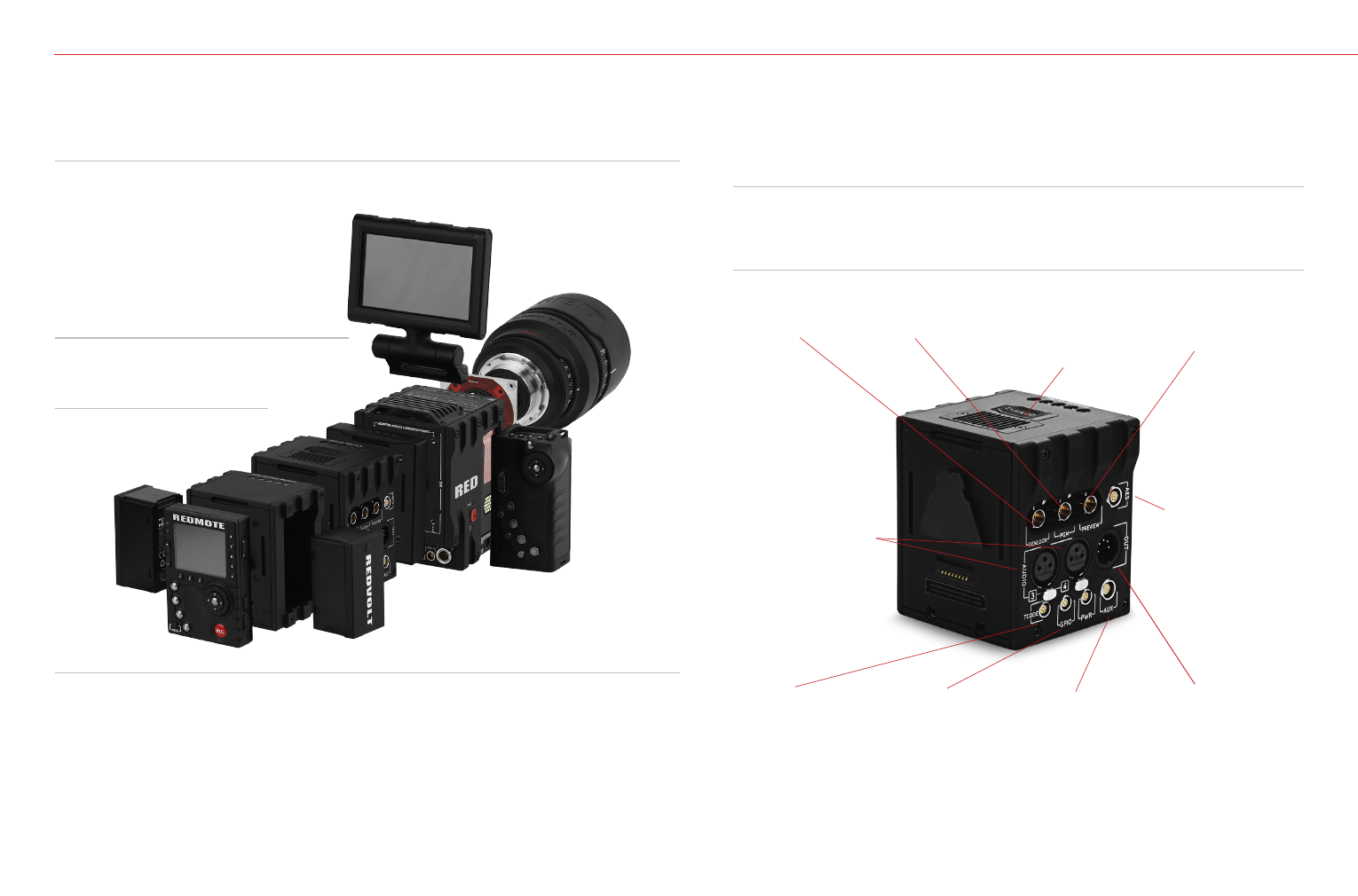

PRO I/O MODULE
GENLOCK
Allows for shutter sync;
ideal for 3D shooting
AES
2 to 4 channel (24 bit) cor-
respondence from camera
to digital audio mixers
5-PIN XLR OUTPUT
Supports 2 channels of bal-
anced analog audio output
TIMECODE
(5-PIN LEMO)
Timecode output which
supports SMPTE Timecode
input and output
LCD/EVF OUTPUT
(RED DISPLAY)
LCD/EVF port allows you to
connect an additional RED
LCD or EVF
3-PIN XLR INPUT
2 to 4 channels of balanced
audio ports
GPIO (4-PIN LEMO)
Run start/stop with 3rd
party remote triggers and
control devices
AUX
(10-PIN LEMO)
11.5 to 17V port for 3rd
party accessories to run
start/stop cables
*Same port as RED ONE, cables are compatible
PREVIEW (BNC)
Preview feed to external
monitors and up to 2
Channels of 48KHz
PGM
Clean video output and up to
2 channels of 48 KHz audio
THE PRO I/O MODULE INTEGRATES ALL OF YOUR ESSENTIAL I/O CONNECTIONS FOR VIDEO AND AUDIO IN ONE CENTRAL HUB.
GREAT FOR:
Users looking to utilize multiple monitors, engage timecode/genlock, and power/control 3rd party accessories.
NOTE:
A +1 ADAPTOR MODULE or MODULE ADAPTOR will be required to use this module with your DSMC brain.
