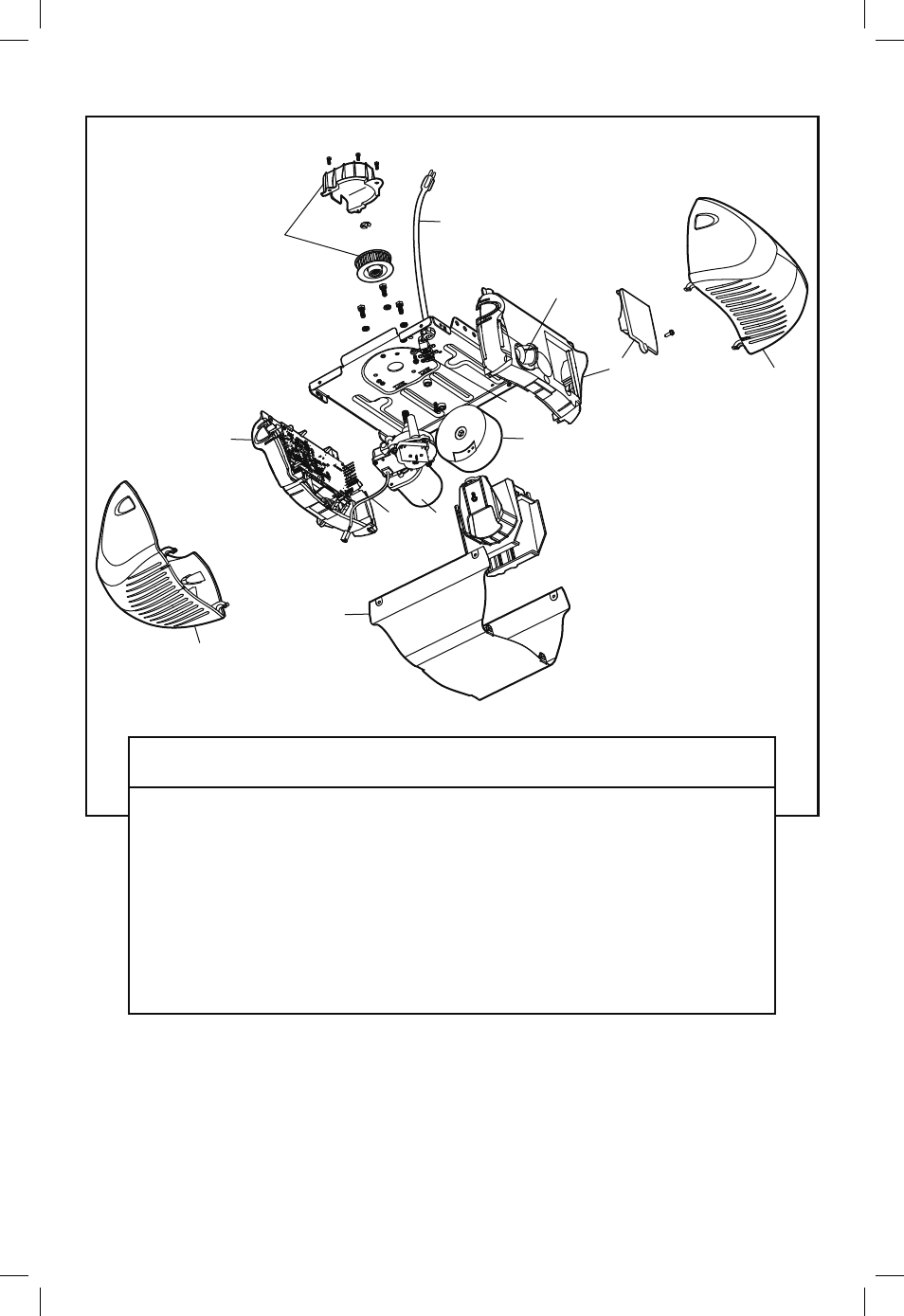

Motor Unit Assembly Parts
KEY PART
NO. NO.
DESCRIPTION
1 41C76 Belt cap and sprocket
2 41B4245 Line cord
3 41B4375-3 Terminal block with screws
4 41A6281 Wire harness kit complete with:
41A6282 Battery wires and plug
41A6327 Light socket wires and plug
41A6328 RPM/passpoint wires with plug
5 41D794 Motor with travel module
6 41DB002-2 Receiver logic assembly
KEY PART
NO. NO.
DESCRIPTION
7 41A6231 End panel with battery door
and screw
8 41C190 Transformer and harness
9 41D504-5 Cover
10 108D79 Light lens
11 175B88 Light socket
NOT SHOWN
41A6357-1 Battery kit
1
2
3
4 5
6
7
8
9
10
11
