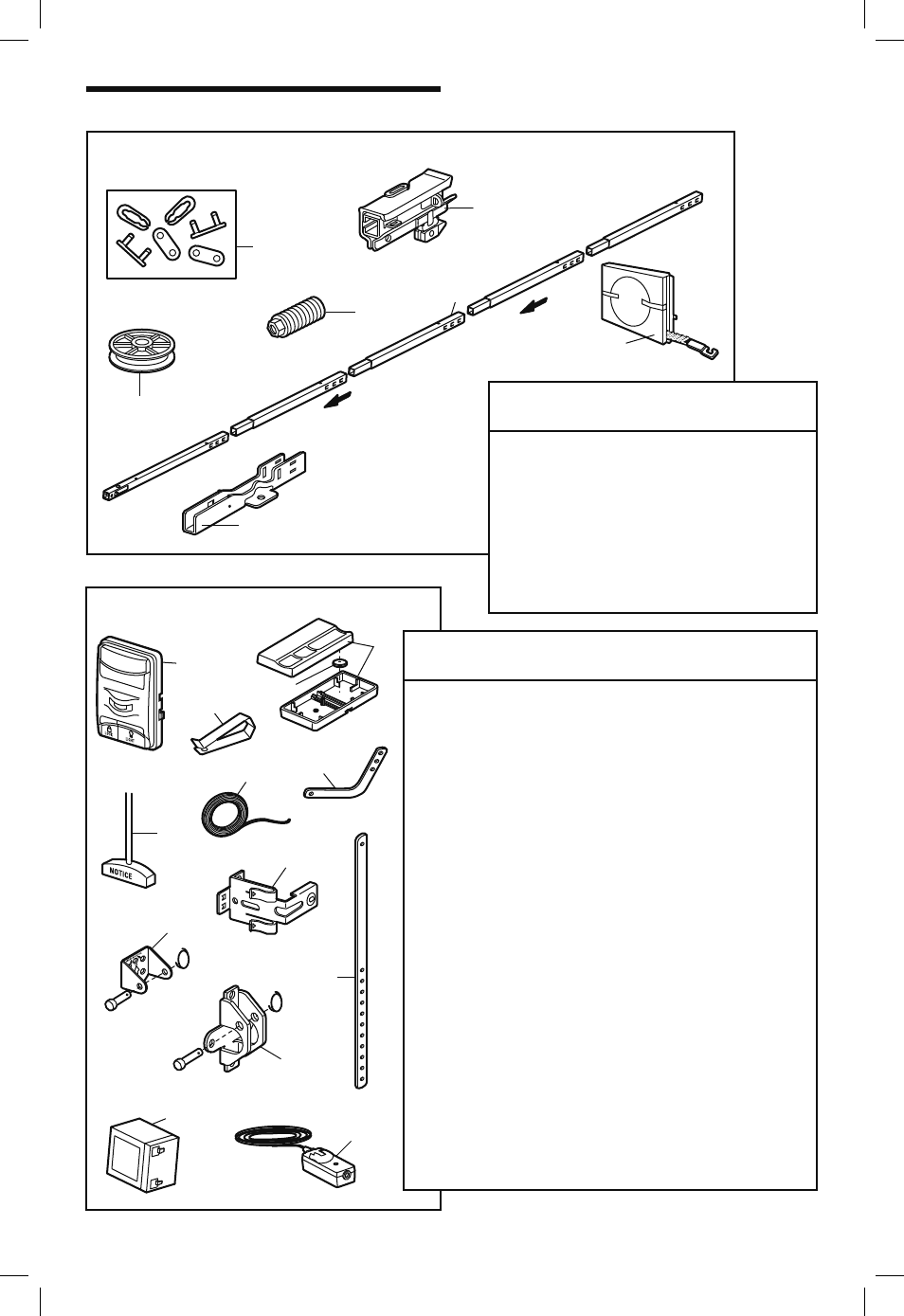

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO.
DESCRIPTION
1
41C472-7
Motion Detecting Door Control
2
953D
3-Button remote control
3
10A20
3V2032 Lithium battery
4
29B137
Remote control visor clip
5
41A2828
Emergency release rope and
handle assembly
6
41B4494-1
2-Conductor bell wire, white and white/red
7
41A5047-1
Door bracket w/clevis pin & fastener
8
41A5047-3
Header bracket w/clevis pin & fastener
9
41A5034
Safety reversing sensor kit (receiving
and sending eyes) with 3 foot (.9 m)
2-conductor bell wire
10
178B34
Straight door arm section
11
178B35
Curved door arm section
12
41A5266-1
Safety reversing sensor brackets (2)
13 41A6357-1
Battery
NOT
SHOWN
41A5257-10 Installation hardware bag
(includes hardware listed on page 7)
12B776 Hanging
brackets
114A4249
Owner’s
manual
114A4249SP Owner’s manual - Spanish
KEY PART
NO. NO.
DESCRIPTION
1
4A1008
Master link kit
2
41C5141-2
Complete trolley assembly
3 41A5665-2
Complete
rail
4
41B4103
Spring trolley nut
5 144C54
Idler
pulley
6
41A5250
Full belt assembly
7 41D598-1
“U”
bracket
NOT
SHOWN
183A163
Wear
pads
Installation Parts
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
