PS Engineering
PMA6000B Audio Selector Panel and Intercom System
Installation Manual
200-066-0200 Appendix B Rev 6, Feb. 2013

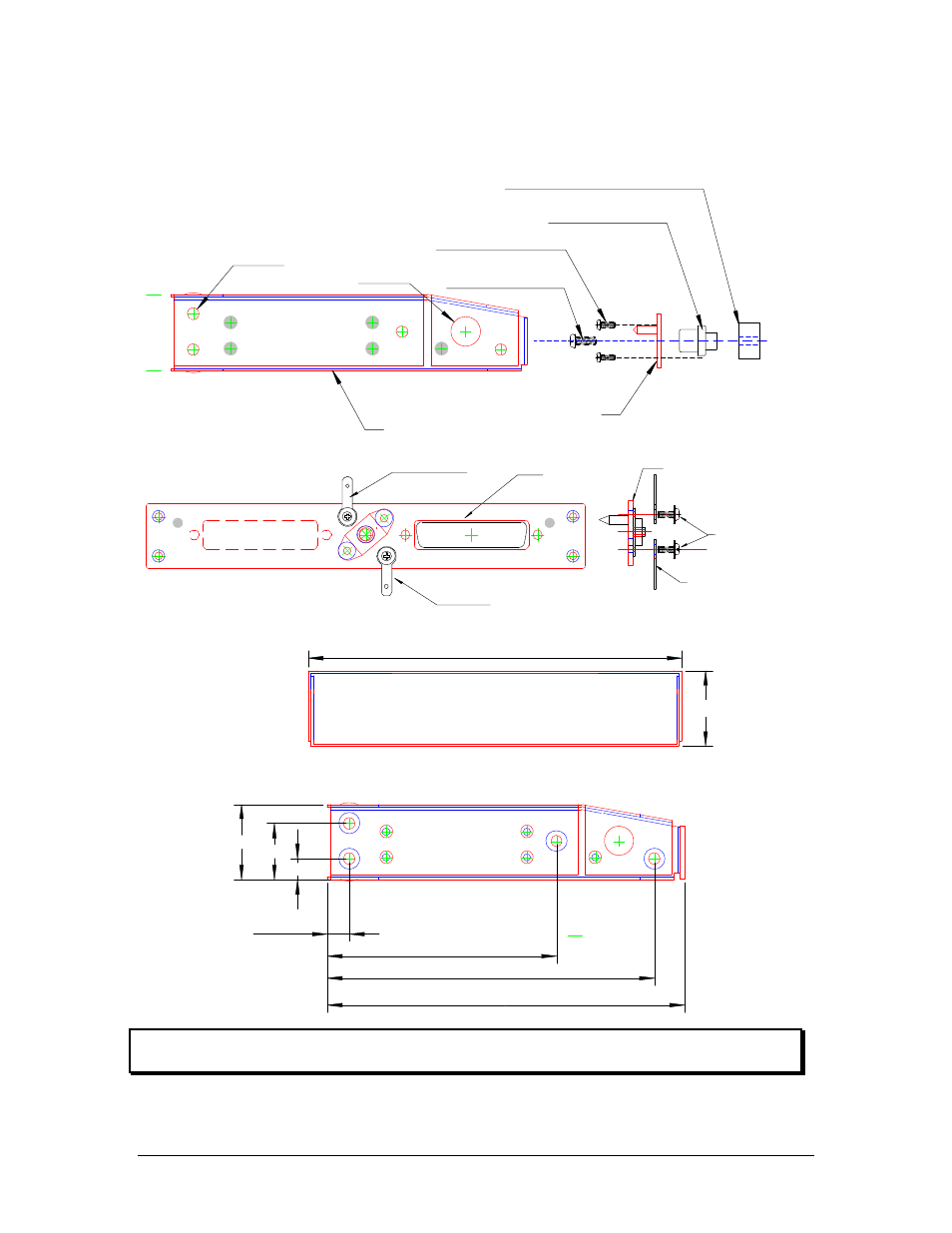

Appendix B- Installation Drawing (not to scale)
431-891-0100 Retaining Block
44-pin connector
Rack back plate
430-890-0050
475-440-0007 (4 ea)
475-440-1038 ( 2)
Rack
430-890-0040
Ø0.20 in
8 plcs Ø0.50 in
2 plcs
J1
Viewed from Back
15
30
44 1
16
31
Ground Lug
Ground Lug
475-440-0001 (x2)
Back plate assy
475-009-0001
ground lug (x2)
475-440-0001 (x2)
Screw w/washer
Ground lug detail
Not used
0.37 in
3.87 in
5.53 in
6.04 in
0.36 in
0.96 in
1.28 in
6.31in
1.28in
Ca ut i on: Ap p l y st ea d y p r essu r e t o t h e bez el wh i l e scr ewi n g t h e u n i t i n t o t h e t r a y t o
en su r e even sea t i n g of t h e u n i t a n d con n ect or s.
