QuickSpecs


ProLiant BL20p and p-Class system

DA-11411

Canada — Version 1 — August 26, 2002

2

Overview

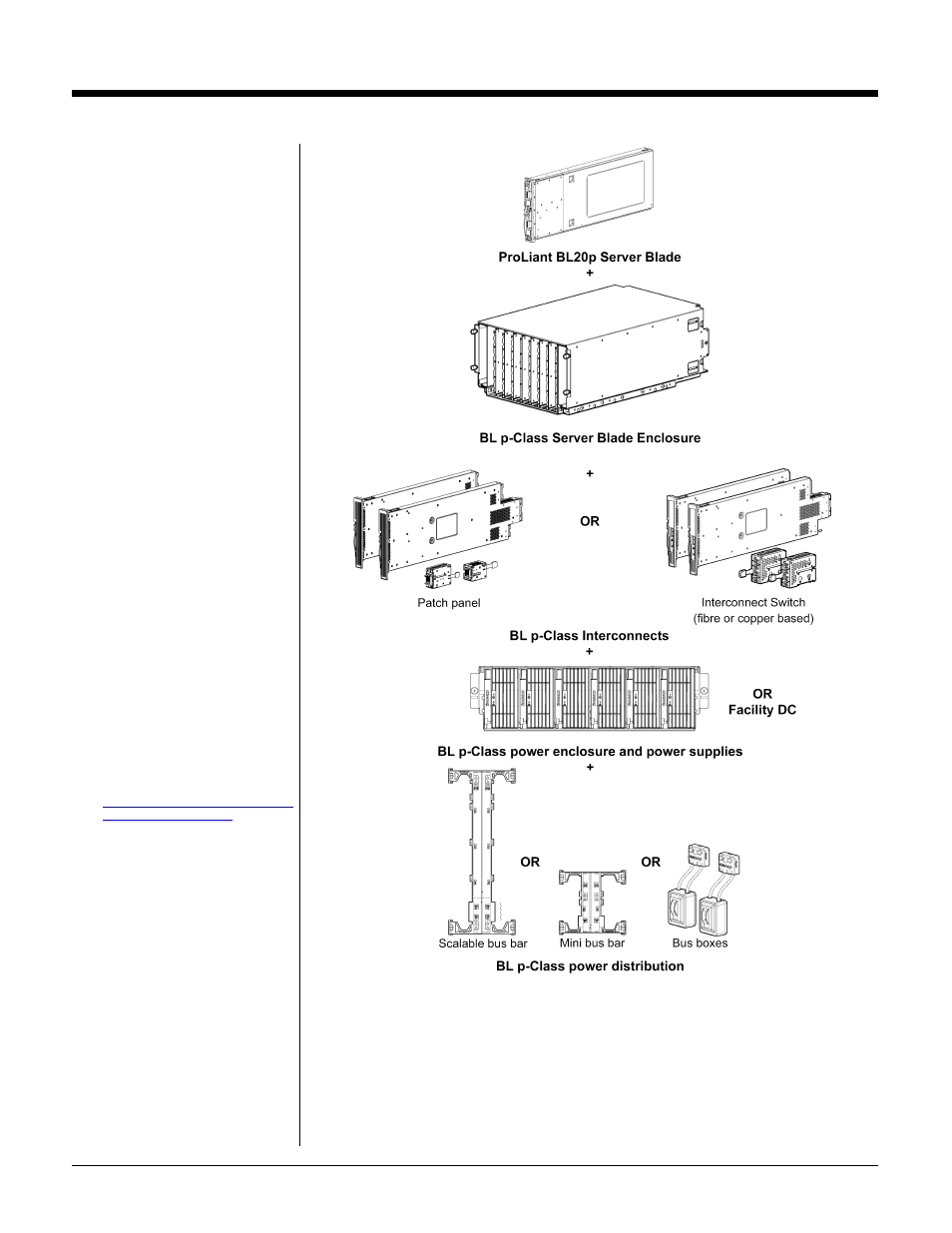

C o n f i g u r a t i o n S t e p s

For a complete configuration of the ProLiant

BL20p, do the following:

1.

Select BL p-Class server blades

Single Intel Pentium III 1.40-GHz

processor, 512-MB ECC SDRAM

(230040-B21)

or

Two Intel Pentium III 1.40-GHz

processors, 1-GB ECC SDRAM

(Note: Additional options include

processors, memory, and Gb NIC)

(257959-B21)

PLUS

2.

Decide how many BL p-Class Server

Blade Enclosures to purchase (each

enclosure can hold up to 8 ProLiant

BL20p server blades)

BL p-Class server blade enclosure

with 8 Rapid Deployment Pack

licenses (281404-B21)

or

BL p-Class server blade enclosure

with Rapid Deployment Pack trial

(243564-B21)

PLUS

3.

Select an Interconnect. Interconnects are

sold in pairs. One pair of Interconnects is

required with each BL p-Class server

blade enclosure

BL p-Class RJ-45 Patch panel (with

32 RJ-45 connectors)

(230766-B21)

or

ProLiant BL p-Class C-GbE

Interconnect Kit (with 4 RJ-45

10/100/1000 T/TX/T and 4 RJ-45

10/100 T/TX uplink connectors)

(249655-B21)

or

ProLiant BL p-Class F-GbE

Interconnect Kit (with 4 LC 1000 SX

and 4 RJ-45 10/100 T/TX uplink

connectors)

(279720-B21)

PLUS

4.

Select BL p-Class power enclosure and

power supplies based on configuration.

Use p-Class sizing tool to help determine

power configuration

http://www.compaq.com/products/servers/

proliant-bl/p-class/index.html

Note: This Web site is available in

English only.

Note: Power enclosures and supplies are

not needed if using facility DC

(-48V

±

10%).

Single phase power enclosure with

four hot-plug power supplies

(239162-001)

or

Three-phase power enclosure with

six hot-plug power supplies

(230769-001)

PLUS

5.

Select power distribution

Scalable bus bar - Supports up to 5

server blade enclosures

(240560-B21)

or

Mini bus bar – Supports up to 3

server blade enclosures

(240559-B21)

or

Power Bus Box - connects 1 power

enclosure to 1 server blade

enclosure (240562-B21)
