DESCRIPTION

Catalog #

Type

Project

Comments

Date

Prepared by

SPECIFICATION FEATURES

www.cooperlighting.com

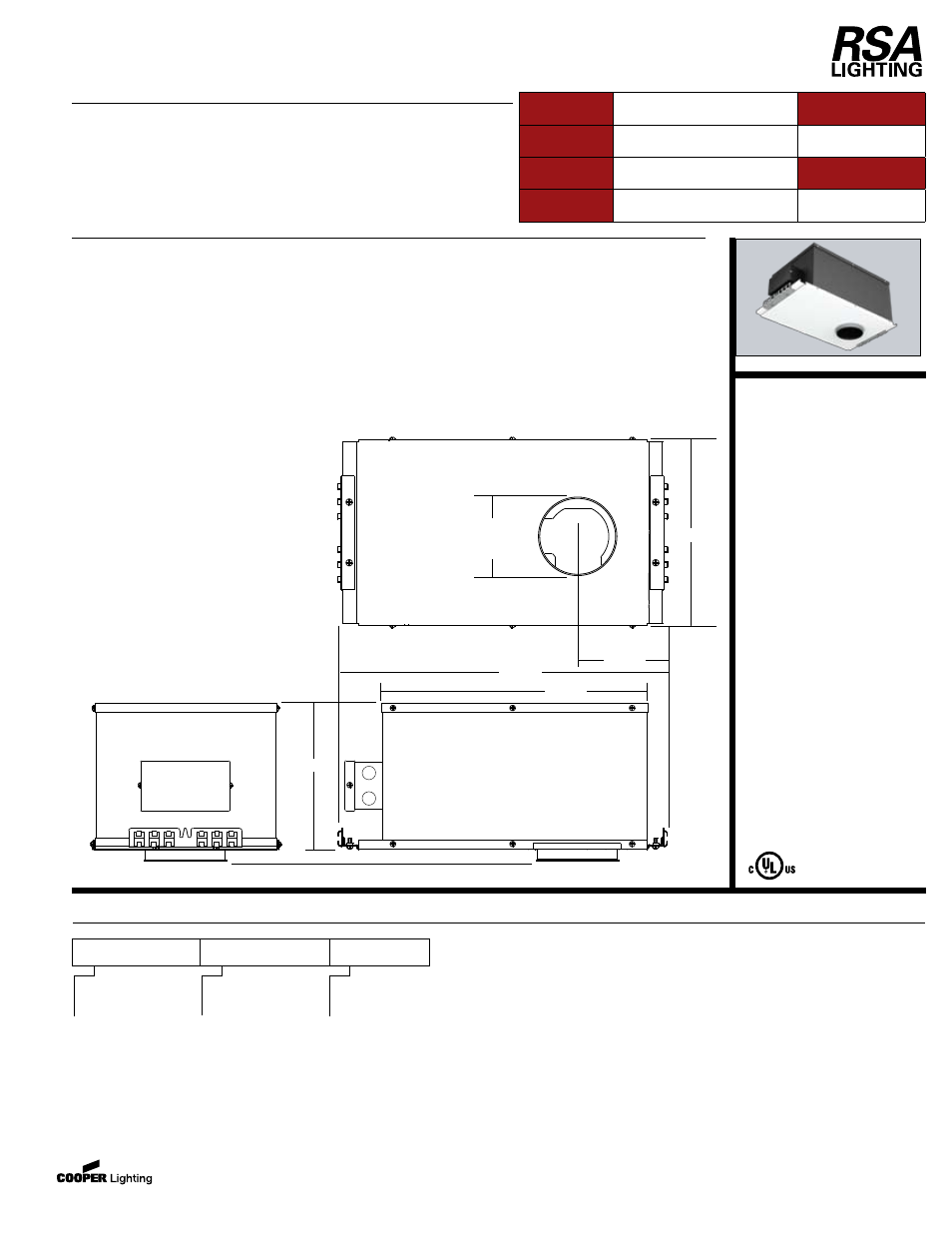

10.00”

17.50”

14.25”

5.00”

7.63”

0.5” - 1.0”

Ceiling

Cut-Out

3.63”dia.

A ...Housing

Housing and plaster frame: 18 gauge CRS

with flat black powder coated internal

finish. Adjustable plaster frame can

accommodate up to 1” ceiling thickness.
B ...System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around fixture.
C ...Electrical

Integral j-box and low voltage (12V)

transformer . 120V input, 12V output.

Junction box is U.L. listed for through

branch wiring. Includes seven 1/2 trade

size knockouts.
D ...Lamp

12V MR16 50 watts max.

(not included)

Internal rotation ring with locking

adjustment. Provides 360º rotation of

trim and secures original trim position

after relamping. “POSI-GRIP” bi-pin

lamp socket for firm, mechanical lamp

connection.

E ...Mounting

Hanger Bars included.

Ceiling Cut-Out: 3.63” dia.

MINI

ACCURUS

ACM502IC

Insulated Ceiling

Air Tite

I.C. Housing

for Round Trim

FOR 12V MR16 50 watts max.

ORDERING INFORMATION

Housing

ACM502IC =

Mini Accurus

I.C. Housing

for Round Trim

w/ Integral Transformer

Voltage
120

=

120 volts primary

277

=

277 volts primary

New construction I.C. housing for Mini Accurus small aperture round
trims. (ACM5001, ACM5002, ACM5003, ACM5004).

For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031

Transformer
ELC

=

Electronic

MAG

=

Magnetic

ACM502IC

rev. 091806
