Connections

Step 5: Connecting FM/AM

antennas

Step 6: Connecting the

power cord

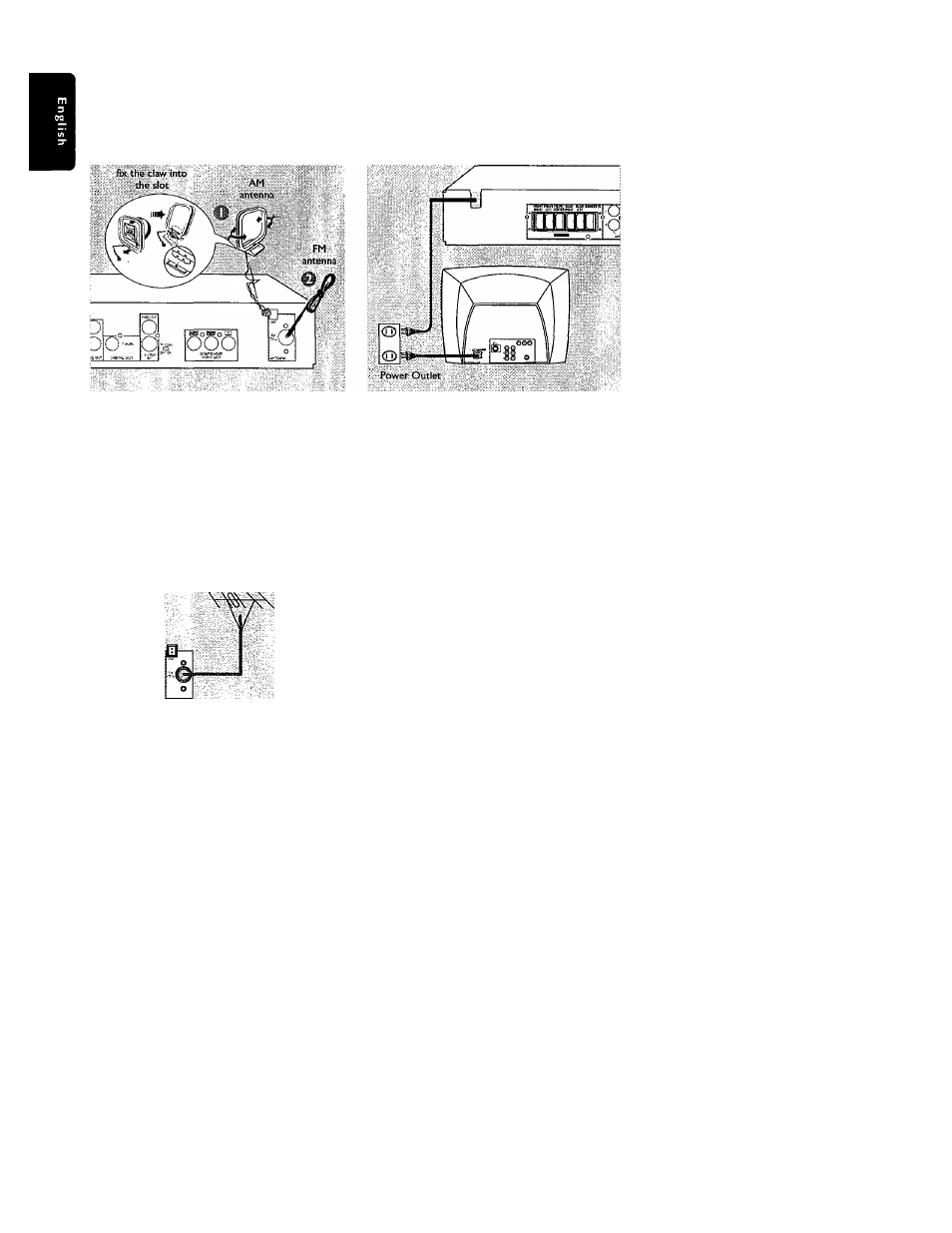

® Connect the supplied AM loop antenna

to the

jack. Place the AM loop

antenna on a shelf or attach it to a stand
or wall.

@ Connect the supplied FM antenna to the

(75Q) jack. Extend the FM antenna

and fix its ends to the wall.

For better FM stereo reception, connect

an external FM antenna (not supplied.)

After everything is connected
properly, plug the AC power cord

into the power outlet.

Never make or change any connections
with the power switched on.

Helpful Hint

- Refer to the type plate on the rear or
bottom of the system for identification and
supply ratings.

Helpful Hints:

- Adjust the position of the antennas for

optimal reception.
-

Position the antennas as far as possible

from your TV, VCR or other radiation source
to prevent unwanted interference.
