SoundMax SM-CDM1038 User Manual

Page 7

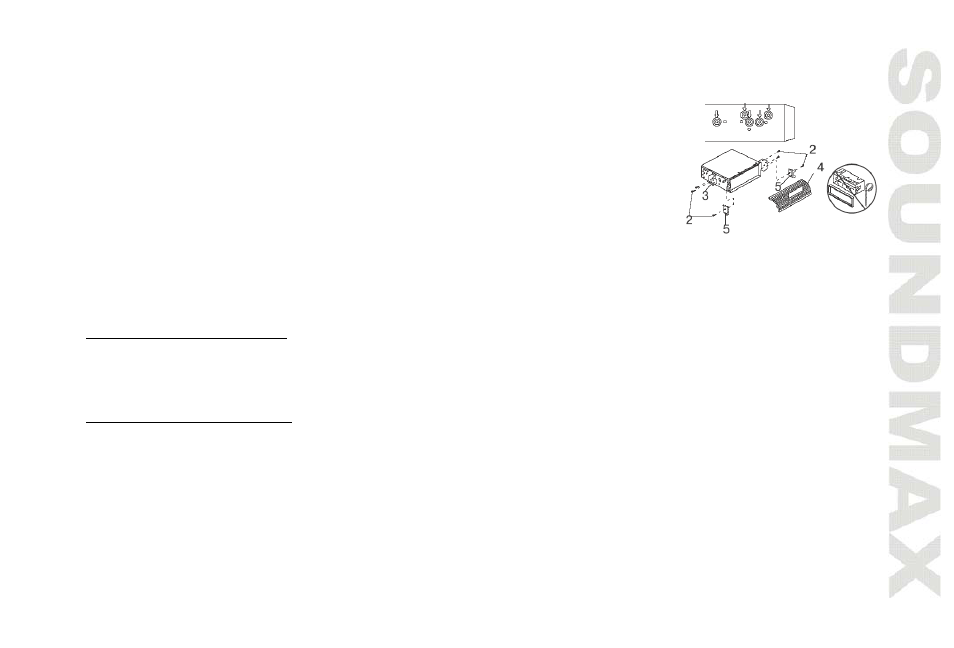

2. DIN REAR-MOUNT (Method B)
For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the
factory radio mounting brackets.
1. Select a position in which the screw holes of the brackets (3) are aligned
with the screw holes in the unit body, and screw in two screws (2) in each
side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
Note: The outer trim frame and mounting sleeve are not used for method of installation.

Installing/detaching the front panel
Attaching the control panel
Insert the right side of the front panel into the main unit locker. Press the left side of the control panel
until a click sound is heard. Ensure the panel is installed properly, otherwise error symbols might be
displayed or some buttons will not function.
Detaching the control panel
Press RELEASE button to detach the front panel. Pull the panel to take it off.

Anti-theft system
The front panel of this unit can be stored in the included protective case when not in used and carried
away when you leave the vehicle to deter theft.
Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it
with you.
