19
NV360/580 Series
20003565

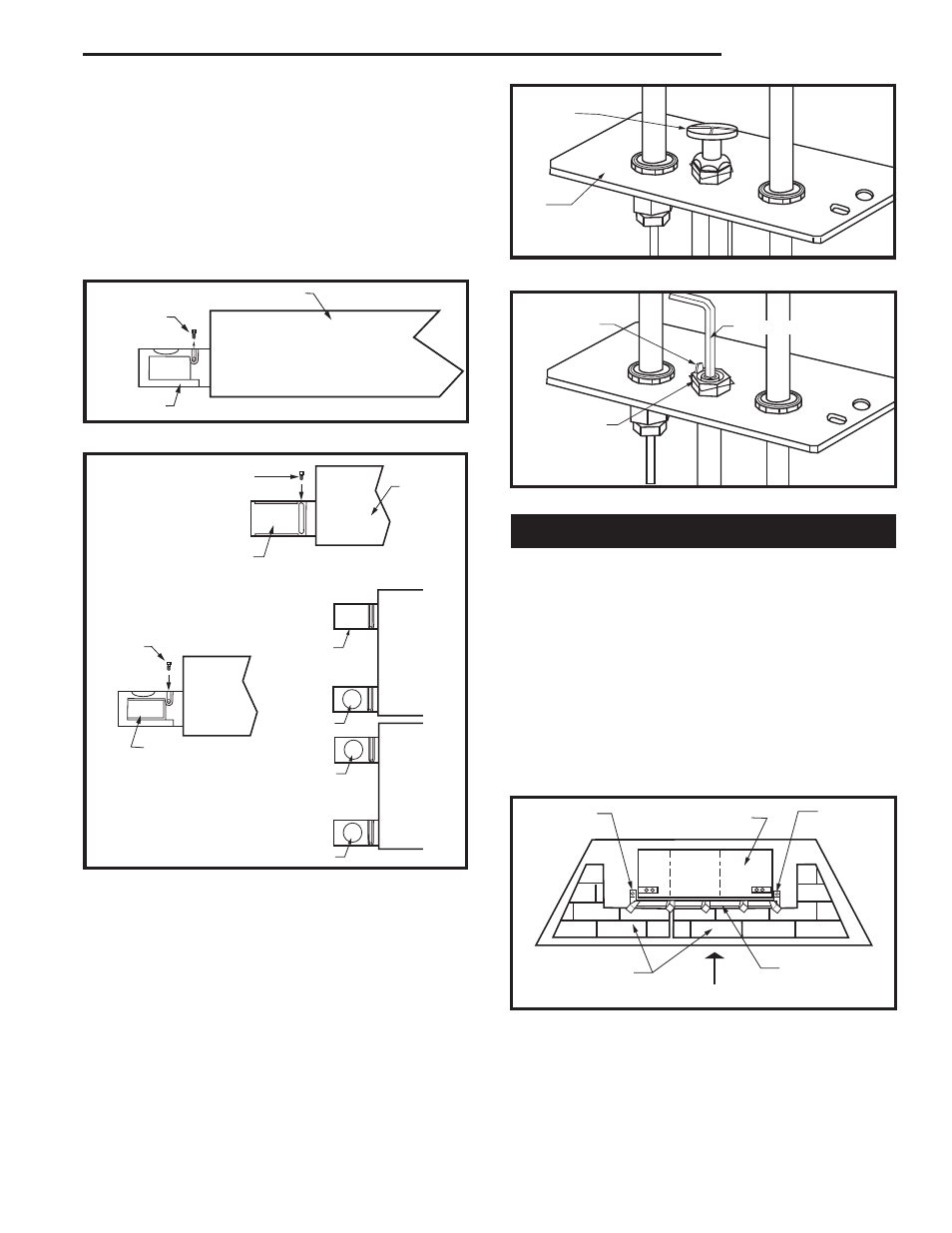

4. Remove both air shutters from burner pan by remov-
ing shutter retaining screw then air shutter. (Fig. 26)
5. Install air shutters supplied in kit on burner pan.
Replace shutter retaining screw. For conversion to
Natural Gas adjust new air shutters so slots are cov-
ered. For conversion to Propane Gas, adjust new air
shutters so slots are open. NOTE: NV360 air shutter
has only one hole, closed. Secure shutter retaining
screws. (Fig. 27)
6. Re-install manifold to burner pan.
CO103
Gas Conversion
Air shutter
2/15/99 djt
Burner Pan
Shutter
Retaining
Screw
Air Shutter
CO103
Fig. 26 Remove air shutter from burner pan.
CO109
air shutter conversion
6/22/01 djt
Shutter Retaining
Screw
Slots Covered
Burner
Pan
Natural Gas
Shutter
Retaining
Screw
Slots Open
One (1) Hole Closed
Holes Open
Holes Open
Holes Open
Burner
Pan
NV360
Burner
Pan
NV580
CO110
Front View
Top View
Front View
Fig. 27 Install conversion air shutters.
NOTE: It is not necessary to remove the pilot tube for
conversion.
7. Remove pilot hood by lifting up. (Fig. 28)
8. Remove pilot orifice with Allen wrench. (Fig. 29)
9. Install LP pilot orifice.
10. Re-install pilot hood and be sure to align with index
tab. Installation complete.
CO105a
DV360/580
Gas Conversion
Pilot
1/28/00 djt
Pilot
Hood
Pilot
Bracket
CO105a
Fig. 28 Remove pilot hood.
CO106a
DV360/580
Gas Conversion
Pilot2
1/28/00 djt
Index Tab Allen Wrench
Snap Ring
CO106a
Fig. 29 Remove pilot orifice.
Replacement of Ceramic Hearth Panels
1. Turn unit OFF. NOTE: Be sure unit is cool.
2. Remove glass.
3. Remove logs. Remove old hearth panels and dis-
card.
4. Remove two (2) screws securing grate to hearth
pan. (Fig. 30)
5. Set left and right panels on hearth and bring towards
front of unit.
6. Replace assembly.
7. Replace logs.
8. Re-install glass panels.
H100a
hearth Panels
1/27/00 djt
Screw
Burner
Screw
Hearth Panels
Grate
Front of Unit H100a
Fig. 30 Hearth panel location.
