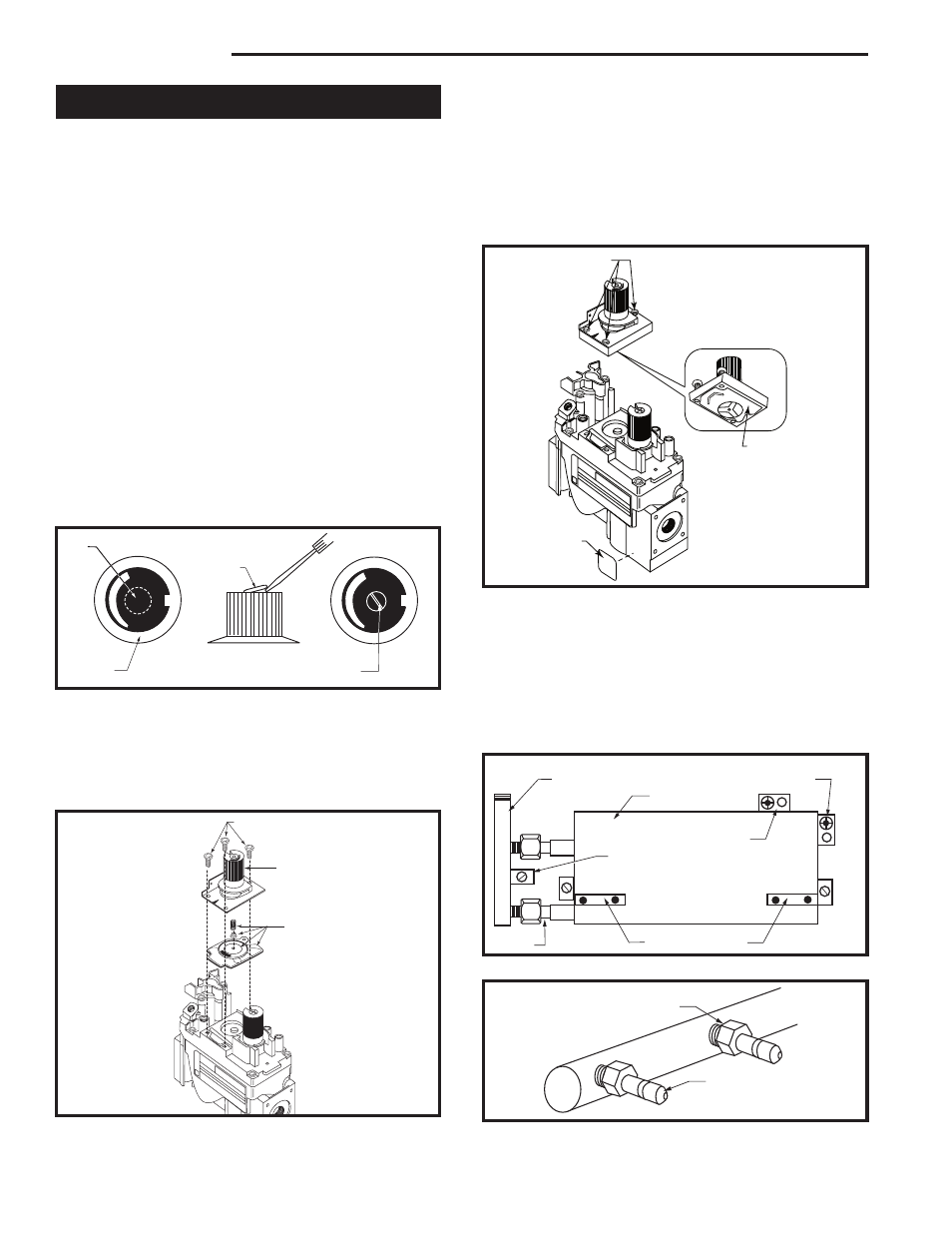

Fuel Conversion Instructions

To convert the DV360/580 units for use with a different
gas follow these instructions. Before proceeding, turn
control knob on valve to “OFF” and turn gas supply
OFF. Turn OFF any electricity that may be going to the
appliance.
CAUTION: Logs may be HOT! Allow to cool before
proceeding.
1. Open louvre assembly bottom to gain access to

valve. Remove window frame assembly. (See “Win-
dow Frame Assembly Removal”, Page 10, Fig. 10)

2. Remove logs if previously installed.
Honeywell Valve
1. Remove cap from HI/LO knob. This can be accom-

plished by lifting the plastic cap off the screw. (Fig.
21)

2. Remove the screw from center of HI/LO knob with

small screwdriver turning counterclockwise. (Fig. 21)

3. Insert conversion screw supplied in conversion kit.

Blue for natural gas, red for LP.

4. Tighten screw, replace cap.

CO100

Gas conversion

HI-LO knob

3/15/99 djt

LO

HI

LO

HI

Cap

Hi/Lo
Knob

Lift Open

Remove

Center Screw

CO100

Fig. 21 Remove center screw from Hi/Lo knob.

NOVA SIT820 Valve
1. Using the TORX T20 bit, remove and discard the

three (3) pressure regulator mounting screws (A),
pressure regulator tower (B) and the spring and
diaphragm assembly (C). (Fig. 22)

FC107

SIT820

valve conversion

10/03

A

B

C

OFF

PILO

T

ON

FC107

Fig. 22 Remove mounting screws, pressure regulator tower
and spring and diaphragm assembly.

2. Insure the rubber gasket (D) is properly positioned

and install the new HI/LO pressure regulator assem-
bly to the valve using the new screws (E) supplied
with the kit. Tighten the screws securely. (Ref. torque
= 25 in/lb) (Fig. 23)

3. Install the enclosed conversion label (F) to the valve

body where it can easily be seen. (Fig. 23)

Valve conversion is complete.

D

E

F

FC108

SIT

regulator

conversion

10/03

OFF

PILOT

ON

FC108

Fig. 23 Replace regulator.

Burner and Pilot Orifice Conversion
1. Remove manifold mounting screw from burner. (Fig.

24)

2. Remove burner orifice from manifold assembly using
3/8” wrench. (Fig. 25)
3. Install conversion orifices in place of orifices just

removed.

CO101a

DV360/580

Gas Conversion

Manifold

1/28/00

added manifold screw

4/7/00 djt

Manifold Assembly

Burner Pan

NV580 Pilot

Location

Manifold

Mounting

Screw

Log Support

Orifice

NV360 Pilot

Location

CO101a

Fig. 24 Remove manifold assembly.

CO102a

DV360/580

Gas Conversion

1/28/00 djt

Rear Burner Orifice

#53 (NV360)

#51 (NV580)

Front Burner Orifice:

#74 (NV360)

#65 (NV580)

CO102a

Fig. 25 Remove burner orifice, replace with new orifice.
