10
NV360/580 Series
20003565
Operating Instructions
Glass Information
Only glass approved by CFM Corporation
should be used on this fireplace.
• The use of any non-approved replacement glass will
void all product warranties.
• Care must be taken to avoid breakage of the glass.
• Do not operate appliance with glass front
removed, cracked or broken.
• Replacement glass (complete with gasket) is
available through your Majestic Fireplaces
dealer and should only be installed by a licensed
qualified service person.

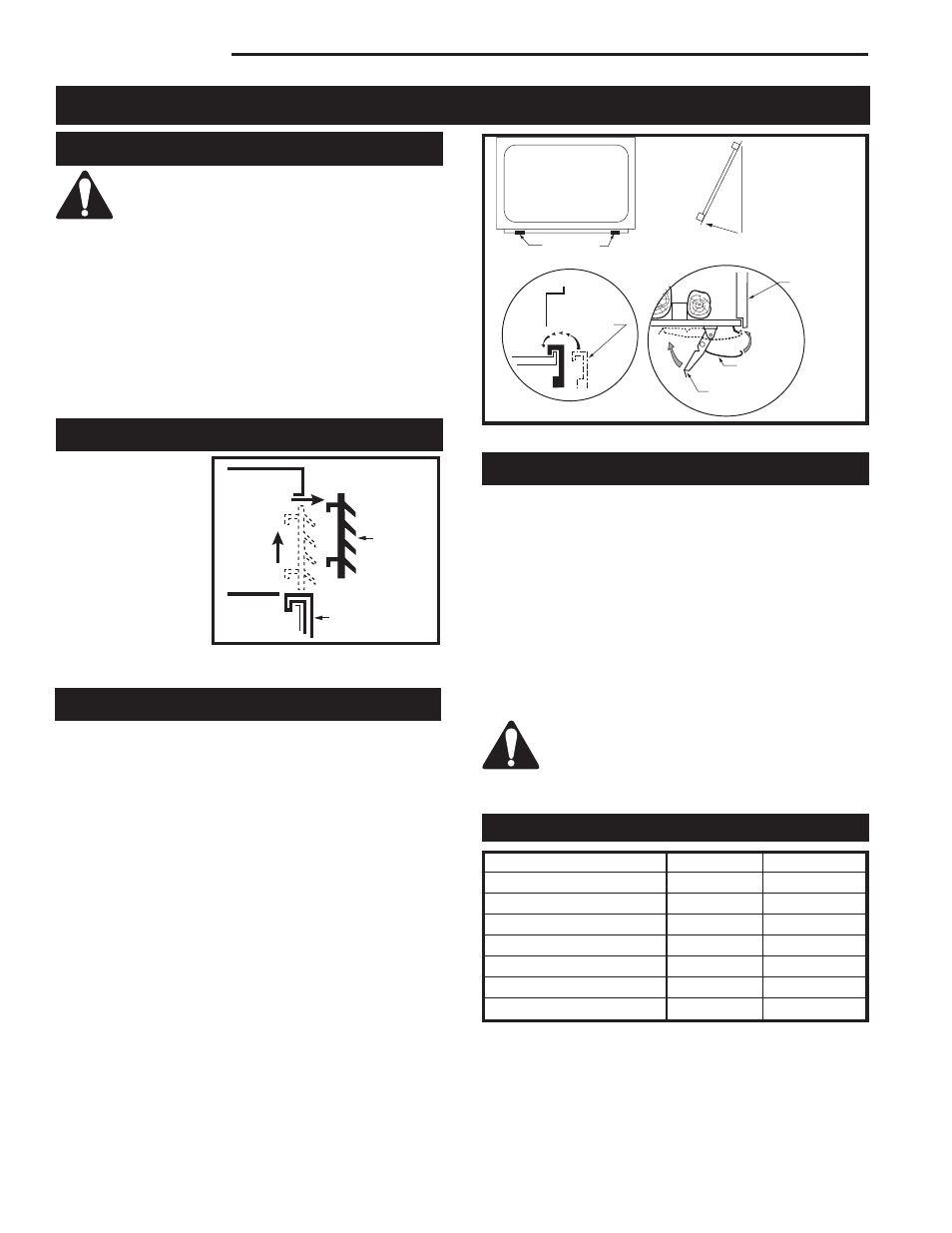

Louvre Removal
To remove the
louvre assembly
top, pull louvre up,
then lift out. (Fig. 9)
The bottom louvre
assembly is hinged at
the bottom edge and
swings down.
Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up, condensation, which is normal, forms
on the inside of the glass and causes lint, dust and
other airborne particles to cling to the glass surface.
Also, initial paint curing may deposit a slight film on
the glass. It is therefore recommended the glass
be cleaned two or three times with a non-ammonia
household cleaner and warm water (gas fireplace
glass cleaner is recommended). After initial use the
glass should be cleaned two or three times during
each heating season depending on the circumstances
present.
Clean glass after first two weeks of
operation.
Do not clean glas when hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.
1.
2.
FP444
remove louvre
12/99
Louvre
Assembly
Top
Glass Panel
FP444
Fig. 9 Remove louvre assembly
top.
Window Frame Assembly Removal
1. Shut off gas.
2. Allow the fireplace to cool if it has been operating.
3. Remove louvre assembly top. (Refer to Louvre Re-
moval, Fig. 9)
4. Open the bottom louvre assembly.
5. Release the two (2) clamps at the bottom of the win-
dow frame by pulling down on the clamp handles.
6. Lift off the window frame assembly as shown. (Fig.
10)
7. To reinstall window frame assembly, follow the above
procedure in reverse.
FP771a
DV360/580
GLASS REMOVAL-CLIP
1/27/00 djt
Clamps
Glass Frame
Fireplace
Front
Glass
Panel
Glass
Panel
Pull Clamp
Hook
Push Clamp
Handle
FP771a
Fig. 10 Glass panel removal.
Log Installation
Logs NV360 NV580
Log Front Left B25 E1
Log Front Right B26 E2
Log Rear B27 E3
Log Top Left B28 E4
Log Top Center Left -- E5
Log Top Center Right -- E6
Log Top Right B29 E7
