ASSEMBLY

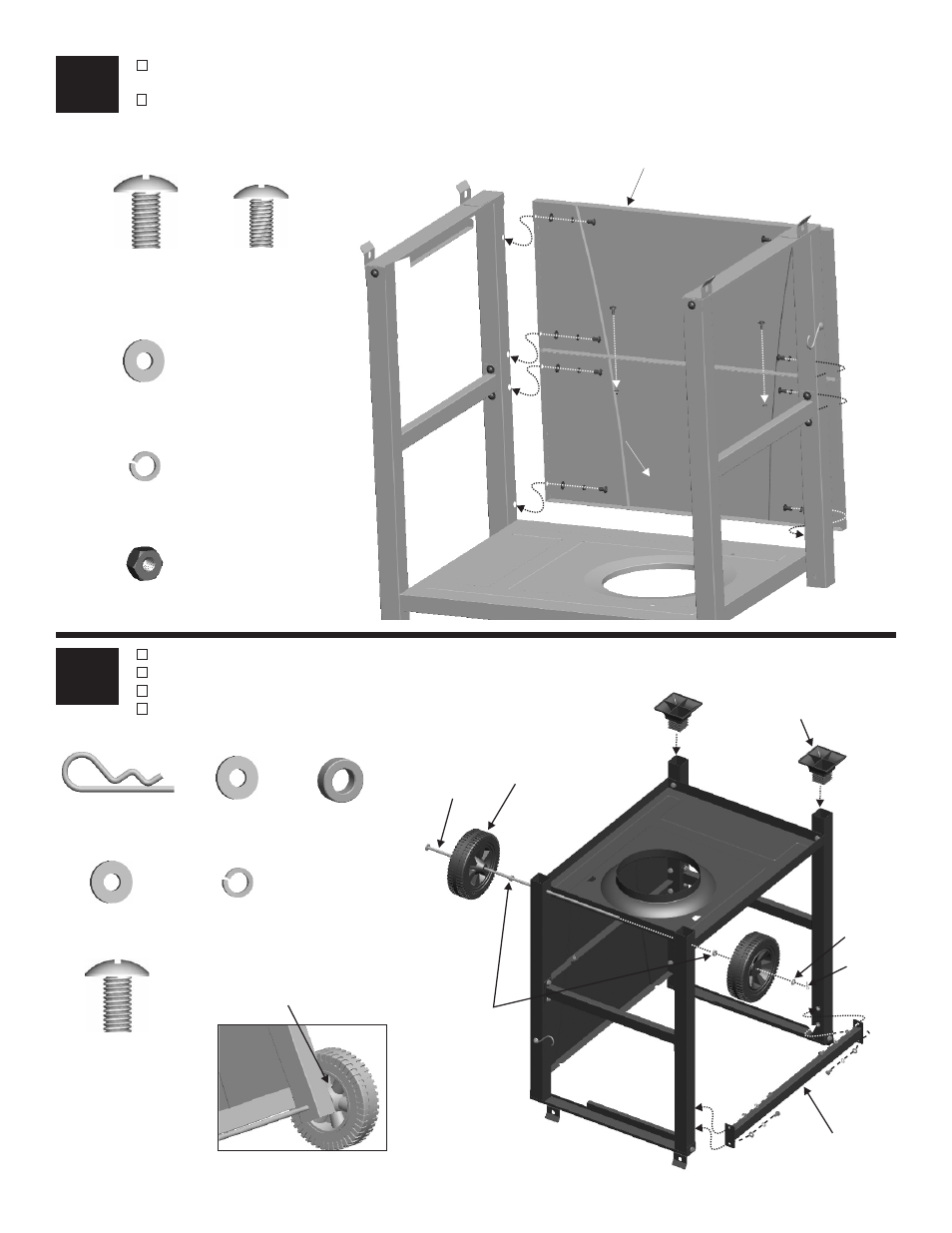

Attach upper and lower front panel to cart with 1/4-20x1/2" screws, 7mm Flat Washer and
7mm Lock Washer on each side.
3
Qty:
1/4-20x1/2"
Machine Screw
8
Qty: 8
7mm Flat Washer
Qty: 8
Lock 7mm Washer
"Cone" side of wheel against leg
Qty: 2
#10-24 Hex Nut
Qty:
#10-24x1/2"
Machine Screw
2
Attach upper front panel to lower front panel with #10-24x1/2" screws and #10-24 hex nuts.
18
Upper Front panel
Lower Front panel
Turn assembly upside down.
Insert axle rod into wheel, axle spacer, legs and other
Attach with (1) axle washer and hitch pin. axle spacer and wheel,
Qty. 1
1” Hitch Pin
Qty:1
Axle Washer
4
Qty: 4
1/4-20x1/2"
Machine Screw
Qty: 4
7mm Flat Washer
Qty: 4
7mm Lock Washer
Hitch Pin
Axle Washer
Wheel
Back Brace
Leg Extenders
Axle Rod
Push leg extenders into right legs.
Attach back brace to cart with 1/4-20x1/2" screws,
7mm Flat
Washer and 7mm Lock Washer on each side.
Axle
Spacer
Qty: 2
Axle Spacer
