OmniSistem Beta 3 – R4/R8 - Manual (Page 20)

COMPACT LINE ARRAY SOUND REINFORCEMENT SYSTEM
18
SOFTWARE APPLICATION GUIDE

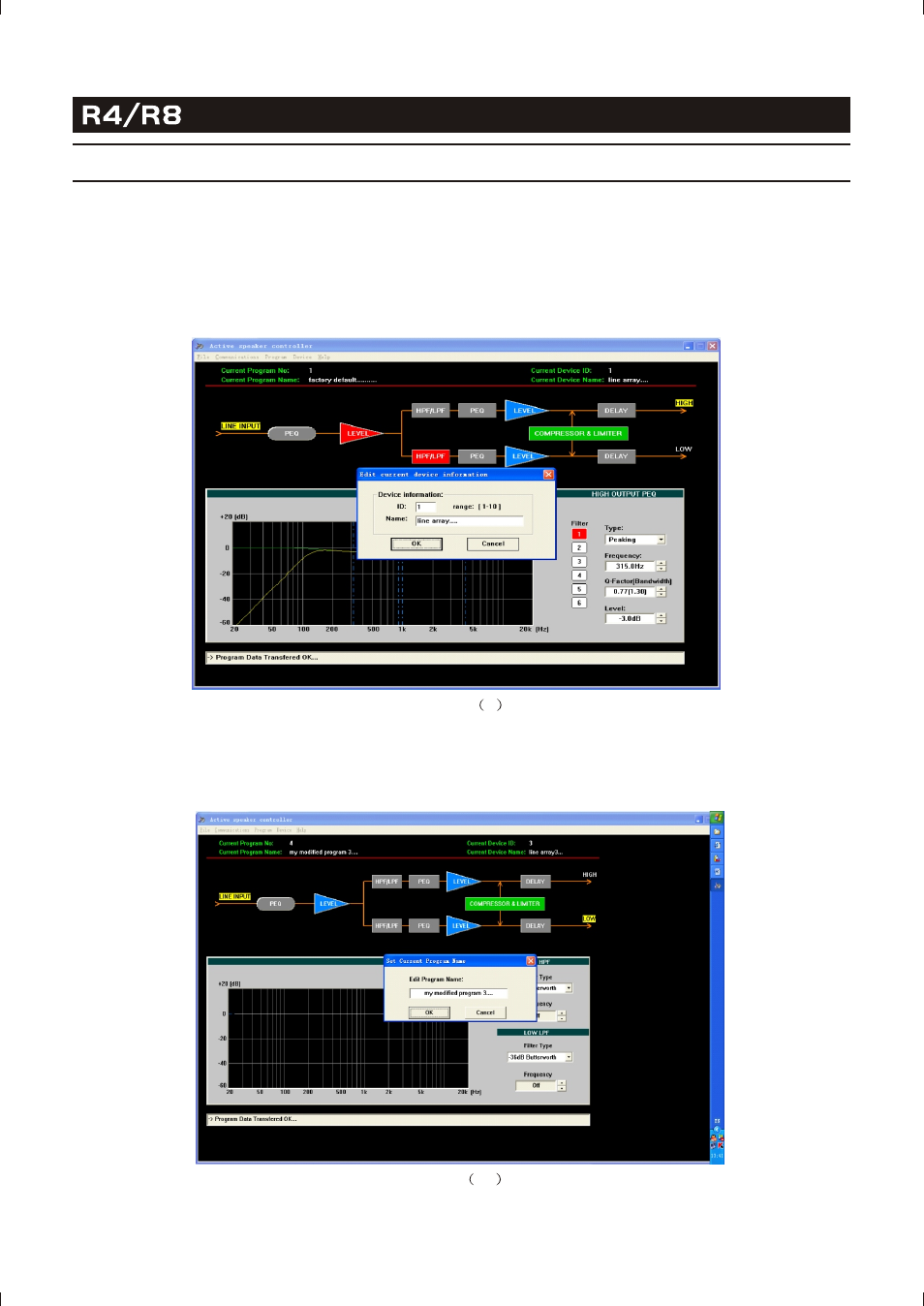

4. Change the information of the device that is online.
Device information means the identifier of device, such as the description of device position etc, Include ID
and device name. After connecting, it may be changed through clicking Edit current device information
in device menu, See Figure 9:
! Attention: ID number is only available for number 1~10, that's to say only max 10 device may be
connected one RS-485 Net. The max length of name is 14ASCII characters.
" "
Figure 9
5. Change the current program name.
Click Program menu, choose Edit current program name to change the program name, See Figure 10:
" " " "
Figure 10
