COMPACT LINE ARRAY SOUND REINFORCEMENT SYSTEM
15

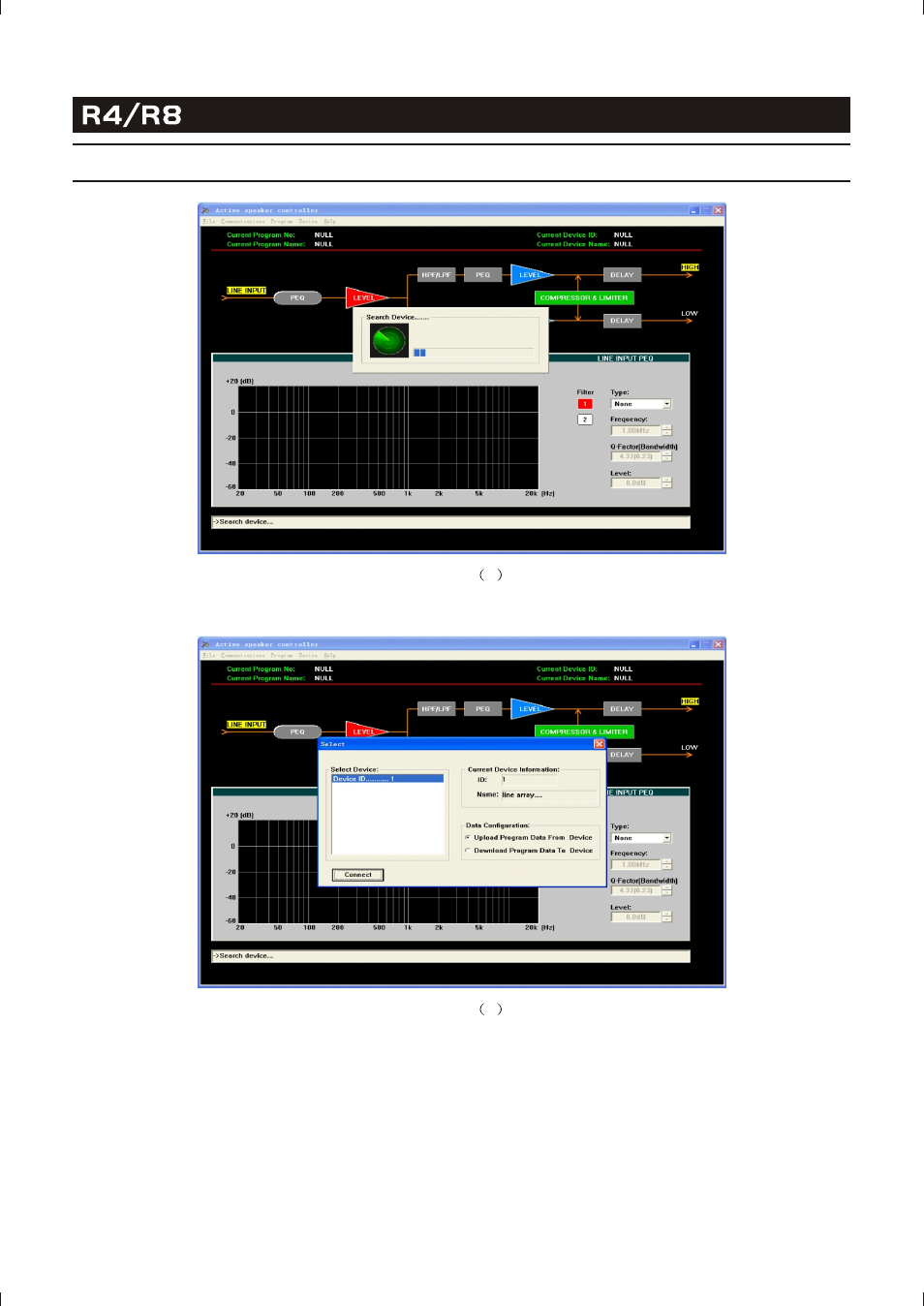

Figure 3
Figure 4
If found device, shown as Figure 4:
SOFTWARE APPLICATION GUIDE
Devices online are listed at left, the right part shows the information of the device chosen by user.
If user want to use the config file that opens from computer, Download Program Data to Device
must be chosen(the operation execute transmitting the parameters into Device's RAM, if no further
save into device operation, the parameters will be lost after the device power off). If user chose
Upload Program Data From Device , it will load the current program that stored in device to PC.
Select the left device that you will want to connect, click the Connect button to start connecting.
(! Attention please: If connect with several devices, each device must a ID number which is exclusive
in the system)
" "
" "
" "
