DMX TERMINATOR
In the DMX control mode, for the last LED StarBrite Controller in the chain, the DMX OUT port has to be connected with
a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120
Ω (ohm) resistor connected across pins 2 and 3, which is

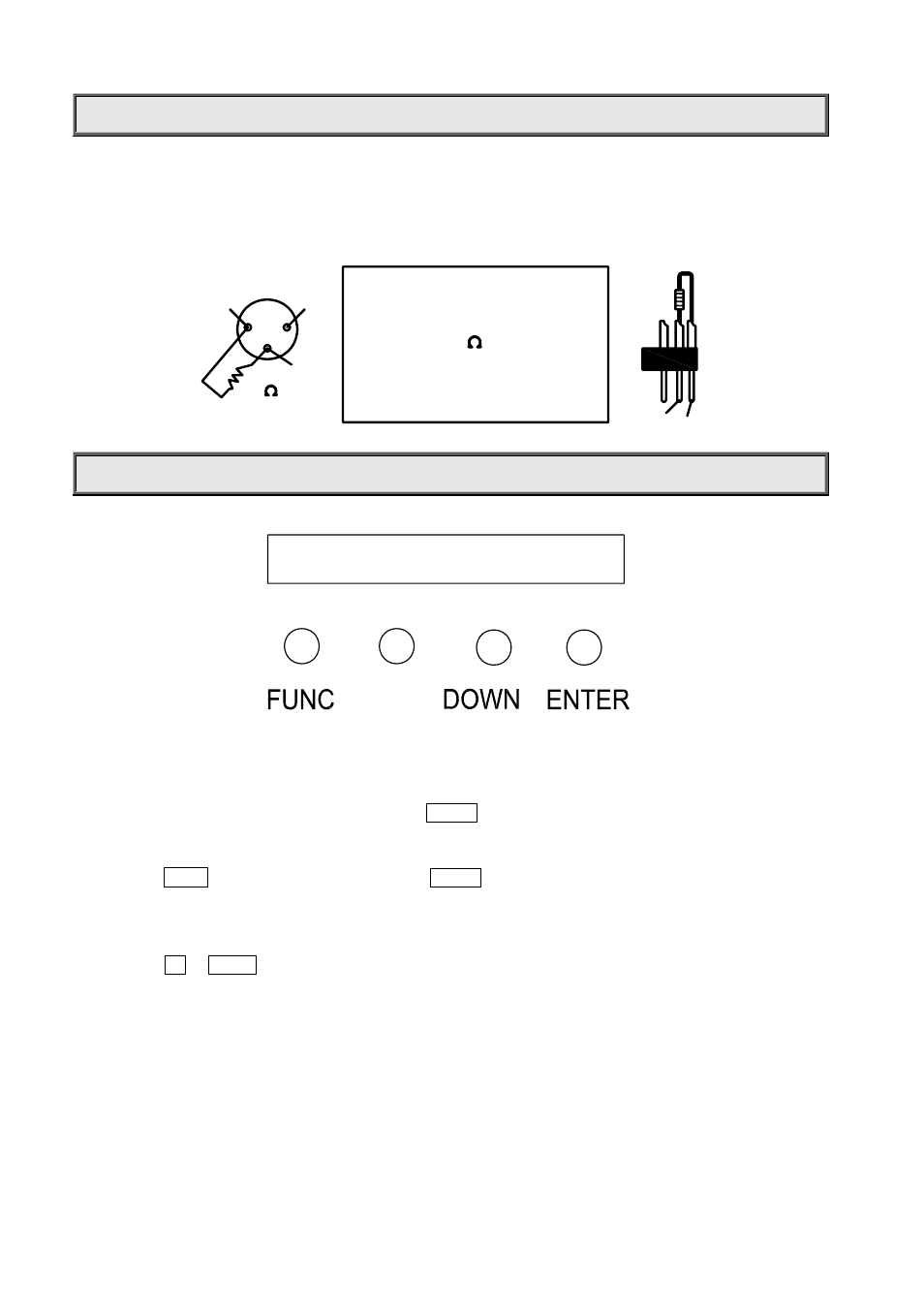

then plugged into the output socket on the last LED StarBrite Controller in the chain. The connections are illustrated
below.
2 1
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PRODUCT CONFIGURATION
UP
As the figure above, product configuration can be set conveniently via push-button switch and LCD display. Turn the
StarBrite Controller on and the LCD display will show the product model and software version as “PR-8710C VER:XXX”.
To browse through various Setup Options, Press button ENTER for 5 seconds to unlock the panel if it is locked. Then the
LCD display will show the function menus, 15 menus in total, and each menu has its specific function.
Press button
FUNC to change the menu, press button ENTER to save your settings and at this time the LCD will
indicate “saving****”. After that, a sign “*” will be appeared at the top right corner of that menu and the LCD
display will first show the settings next time when the controller is turned on.
Press button UP or DOWN to change the speed, colour or address in the menu (increase or decrease the
numerical value).
If you stay for one minute without any operation, the panel will be locked automatically, and then “PR Lighting” and
“StarBrite” will be showed by turns in the LCD display.
