Coleman DURANGO 9271-210 User Manual

Durango, Family cabin, 20'x10

background image

DURANGO

FAMILY CABIN

20'X10'

1

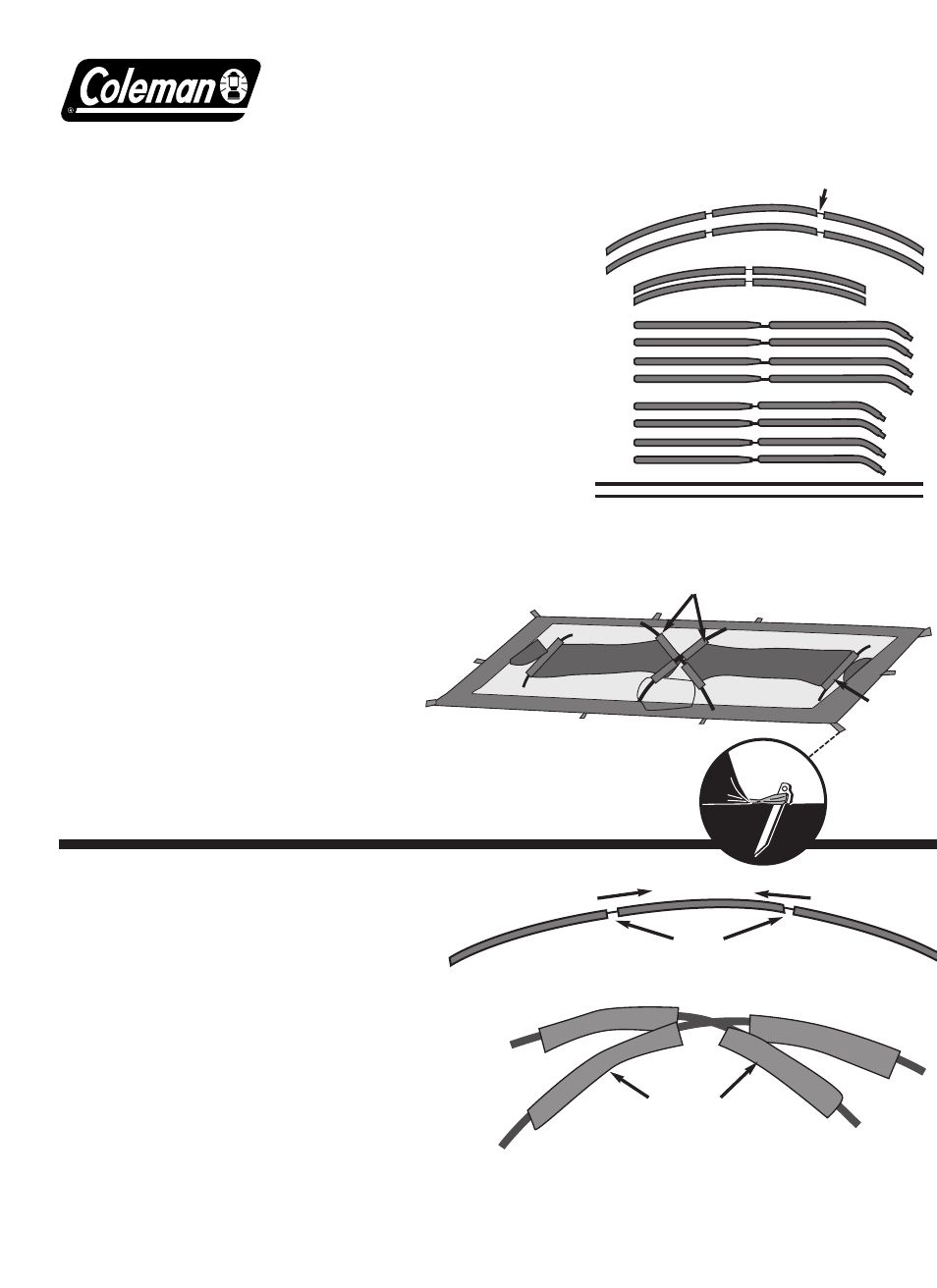

Layout & Positioning of Tent

–Layout and position tent with door

facing desired direction. (illus. 1)

–Stake down tent, starting with

the corners. Do not stretch
too tight. Angle the stakes
slightly toward the tent.
(illus. 2) Keep the floor taut.

–Unzip the door.

2

Assemble & Place Roof Poles

–Assemble all shock-corded

roof poles. When assembled will
form a continuous arch with both
ends pointing down. (illus. 3)

–Select center roof poles (longer,3 section)

and insert them diagonally through the two
center roof sleeves. They cross and form an

“X”. (illus. 1 & 4)

–Select end roof poles (shorter, 2 section).

and insert them through the roof sleeves
at each end of the tent. (illus. 1)

When You Are Ready To
Set Up Your Tent

–Select a level campsite clear

of rocks, branches and other
hard or sharp objects.

–Do not set up your tent

under trees.

–For best results in windy

conditions, position the end
of tent into the wind.

–See owners manual for

more tips

Center Curved Roof Poles

Part No. 9271-205

End Curved Roof Poles

Part No. 9271-206

End Brace Poles

Part No. 9271-203

Center Brace Poles

Part No. 9271-202

Rainfly Poles

Part No. 9271-204

Rainfly Part No. 9271-201

Instructions apply to Part Number 9271-210

illus. 3 Three section curved roof pole assembly.

illus. 4 Curved roof pole system shown

inserted diagonally through pole sleeves.

illus. 2

Stake loops

properly staked

Front door

End roof
sleeve

Center curved roof poles diagonally

through pole sleeves

illus. 1

Pole sleeves

Shock corded poles

Forms an arch

Shock-corded

POLE ASSEMBLY PARTS
